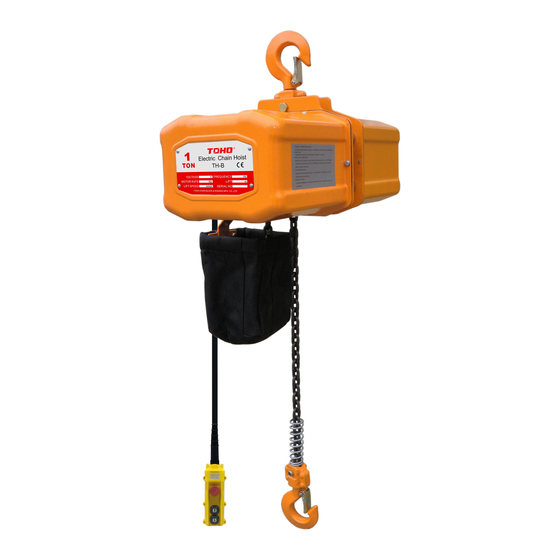

Electric chain hoist 1 tonne x 3 metre lift

Advertisement

Quick Links

1
Instructions Manual for TECH0103 (H250)
02/08/2019
INSTRUCTION MANUAL
TECH0103
Electric Chain Hoist
1 Tonne x 3 Metre Lift
H250

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TOHO TECH0103 and is the answer not in the manual?

Questions and answers

Summary of Contents for Garrick TOHO TECH0103

  • Page 1 Instructions Manual for TECH0103 (H250) 02/08/2019 INSTRUCTION MANUAL TECH0103 Electric Chain Hoist 1 Tonne x 3 Metre Lift H250...
  • Page 2 Instructions Manual for TECH0103 (H250) 02/08/2019 TECH- SERIES 240V ELECTRIC CHAIN HOIST (Capacity 1T & 2T) OPERATING INSTRUCTIONS WARNING This hoist should not be installed, operated or maintained by any person who has not read all the contents of these general instructions. Failure to read and comply with these instructions or any one of the limitations noted herein can result in injury and/or property damage.
  • Page 3 Instructions Manual for TECH0103 (H250) 02/08/2019 1、Warning a) Ensure the hoist has correct earth connection before operation. b) Before lifting a load, examine the load chain to ensure that there is no twist, kink, and no turn-over of bottom hook for multi-falls. c) The hoist is only used for load within capacity, any application for over rated capacity is forbidden.
  • Page 4: Dimension & Specification

    Instructions Manual for TECH0103 (H250) 02/08/2019 4、Dimension & Specification 上 下 Item NO. TECH0103 TECH0106 TECH0203 TECH0206 Rated Load (ton) Standard Lift (m) Lifting Speed (m/min) Output (kw) Power Supply 240v 50HZ Single Phase INS Class Dimension of Load chain 7.1mmX 21mm Strands of Load chain Test load (ton)
  • Page 5: Duty Cycle

    Instructions Manual for TECH0103 (H250) 02/08/2019 6、Duty Cycle The hoist is not designed for continuous all day usage and has a recommended duty cycle. Please refer to the table below to ensure a long and safe life for this product. ( table 3-1) Table 3-1 Explanation...
  • Page 6 Instructions Manual for TECH0103 (H250) 02/08/2019 cleaned to ensure it is clear of dust and oil, also, inspect the working space of the brake device, if abrasion (wear) of the brake disc is more than the maximum working space (1mm), then the working space should be adjusted and if abrasion of friction disc is near to the aluminum core, the brake disc should be replaced , otherwise, the brake device will be damaged.
  • Page 7: Fault Finding

    Instructions Manual for TECH0103 (H250) 02/08/2019 B (mm) C (mm) capacity (t) Normal Size Abnormal Size Normal Size Abnormal Size 19.5 17.5 24.3 19.8 28.8 8、Fault finding Condition Causes Check Power cable Check and fasten all the hoist fails connected or loose cable connection points.
  • Page 8: Exploded Drawing

    Instructions Manual for TECH0103 (H250) 02/08/2019 9、 EXPLODED DRAWING...
  • Page 9: Parts List

    Instructions Manual for TECH0103 (H250) 02/08/2019 10、Parts List No. Part name Quantity Part name Quantity Cover A Nut washer Motor cover packing Rolling bearing 6004Z Electric board Spring set Axle race 25 Spring Brake assembly Friction disk pressing panel Rolling bearing 6005Z Washer A Pinion gear A Limit device base...
  • Page 10: Electrical Drawing

    Instructions Manual for TECH0103 (H250) 02/08/2019 11、ELECTRICAL DRAWING Push-button switch 24V/AC...
