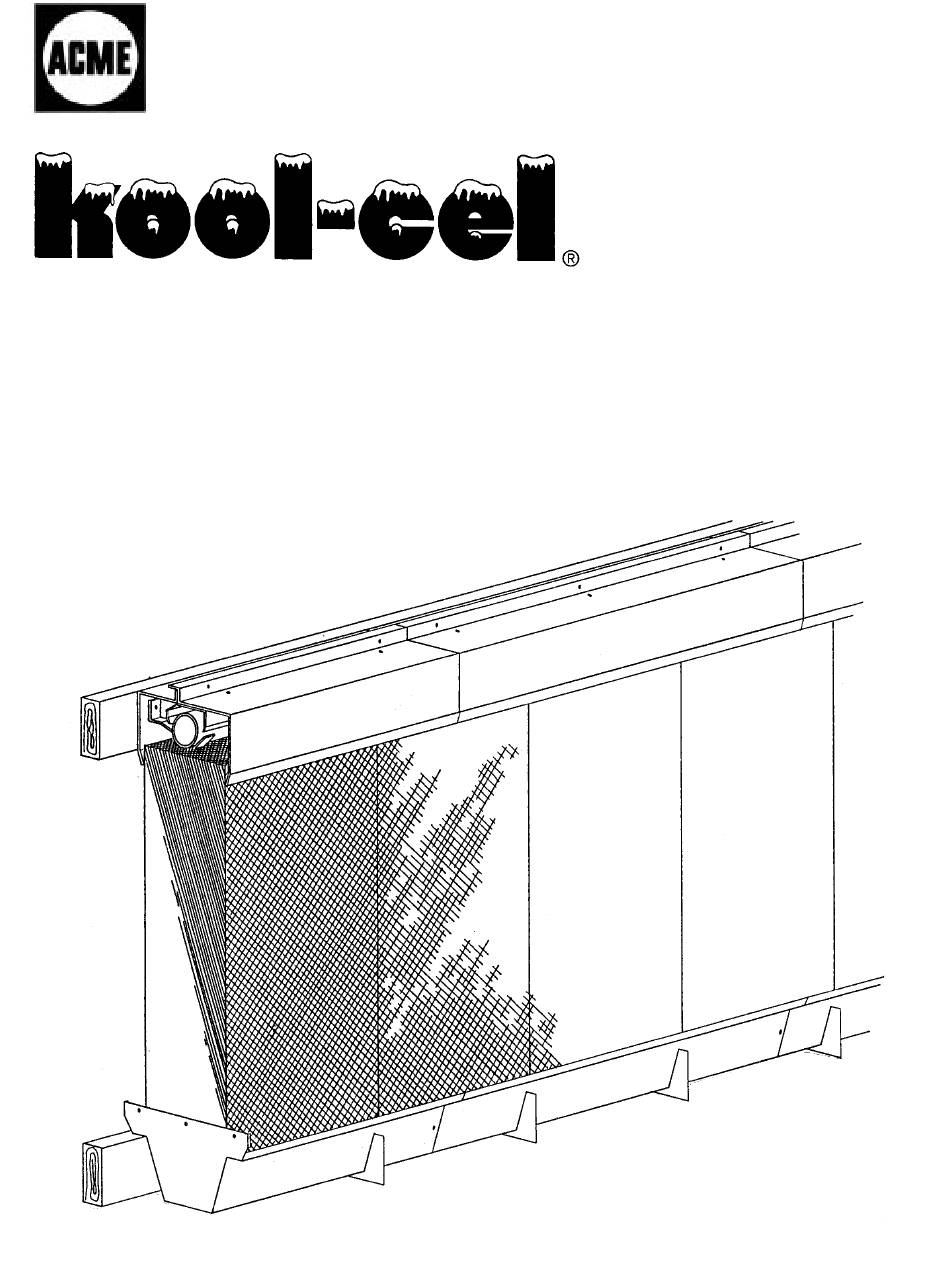

Owners Manual &
Instructions for
Acme PDR 4" and 6"
Kool-Cel
Evaporative Cooling
System
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for ACME KOOL-CEL PDR 4
Summary of Contents for ACME KOOL-CEL PDR 4
- Page 1 ACME ENGINEERING & MANUFACTURING CORP. Form 610260 P.O. Box 978 Muskogee, Oklahoma 74402 918/682-7791 FAX: 918/682-0134 www.acmeag.com • www.acmehort.com acmeag@acmefan.com • acmehort@acmefan.com Owners Manual & Instructions for Acme PDR 4” and 6” Kool-Cel Model PDR 4” and 6” Evaporative Cooling...
-
Page 2: Table Of Contents
PDR 4” and 6” Evaporative Cooling System Table of Contents Components ......... . . 2 Building Preparation . -
Page 3: Building Preparation
Building Preparation Location of Pad System: Typical Pad/Fan Relative Locations The Kool-Cel pad should be placed away from the fans (opposite) so that cooled air can flow through the building without turbulence. Pads should be no more than 250’ from the fans in greenhouse buildings to avoid excessive temperature rise and velocities. -
Page 4: System Installation
PDR 4" and 6” Evaporative Cooling System Sump Tank and Cover Provide a tank with a capacity of 3/4 gallon per square foot of pad area for 4” pads and 1 gallon per square foot of pad area for 6” pads. A tank cover should be provided capable of supporting the pump (#30-35 lbs., #60-50 lbs.). The sump should be set in place prior to start of the installation of the distribution and return system. - Page 5 Gutter Support Bracket 2" x 6" Bottom Stringer 1/4" x 1 ½" Hex Head Screw Figure 3 Install all gutter support brackets (1) as shown in figure 3, making sure brackets are vertical. Figure 4 Note: For system installations with center drain, refer to Form 610421.
- Page 6 PDR 4" and 6” Evaporative Cooling System System Top Installation Beginning at the drain end, install the top cover support sections and the pipe hangers to the top stringer by lining up the top holes of the top cover support sections with the chalkline on the top stringer.
- Page 7 Install a 1 ½” slip joint coupling on the pipe end away from the drain and assemble another 10’ section of pipe. Do not use PVC cement on these joints. The coupling and pipe should be pushed tightly together but not cemented. Make sure the metered holes are at the top so the water will spray directly upward for proper water distribution.
- Page 8 PDR 4" and 6” Evaporative Cooling System Pad Installation Install the pads before installing the top cover. (Installing pads with top cover in place could result in pad damage and the “springing” of the top cover which could result in improper channeling of the water.) Place the bottom of the pad firmly on the pad support and under the pipe as shown in figure 15 for 4”...
-
Page 9: Exploded Drawing Of System
Bill of Material Top stringer (by others) Bottom Stringer (by others) Gutter support bracket Gutter end section w/drain hole Gutter section Pad support end section Pad support section End closure panel Top cover end cap Pipe hanger Distribution pipe Slip coupling Pipe cover end section (4”) Pipe cover section (4”) Pipe cover end section (6”) -
Page 10: Plumbing Installation
PDR 4" and 6” Evaporative Cooling System Plumbing Installation A complete plumbing kit is available through your distributor. Extra items are included in this kit so that one kit may fit all installations. If you have not purchased this kit, refer to figures 20 & 21 for items required. Assemble the plumbing as shown in figures 20 &... - Page 11 Bleed-Off Assembly Installation Locate the bleed-off end opposite the supply line (or drain). Locate the following parts and install in the number sequence shown. Cement the pipe and fittings but do not cement the threads of the female adapter or the male threads of the plugs.
-
Page 12: 8" Pvc Transition Pump Tank (Optional)
PDR 4" and 6” Evaporative Cooling System 8” PVC Transition Pump Tank (optional) Install the transition pump tank according to figures 8" PVC TRANSITION PUMP TANK & RELATED ITEMS below. Framing considerations for this optional ITEM# DESCRIPTION equipment are described on pages 3 and 4 of this booklet. -
Page 13: Start Up And Testing
Start Up and Testing Test water - Make up water should be tested for Ph level and soluble salts. Ph must be between 6 and 9 and salt concentrates below 40,000 ppm. See “Pad Care” on page 14. Float valve - Open the water supply line to the sump. Adjust the float valve so the water shuts off before the water level in the tank reaches the top of the overflow pipe. -
Page 14: Pad Care
PDR 4" and 6” Evaporative Cooling System Start and End of Cooling Season At the end of the season, drain the pump and piping system to avoid damage caused by rust and impure particles in the water. If the system is outside of the building, you must drain and remove the pump to avoid freeze damage. - Page 15 Page 15...
-
Page 16: Warranty
Company. WARNING Acme products are designed and manufactured to provide reliable performance but they are not guaranteed to be 100% free of defects. Even reliable products will experience occasional failures and this possibility should be recognized by the User. If these products are used in a life sup- port ventilation system where failure could result in loss or injury, the User should provide adequate back-up ventilation, supplementary natural ventila- tion or failure alarm system, or acknowledge willingness to accept the risk of such loss or injury.
