- Page 1 Operator's Manual CC2 / CC4 Code Checker Made in Germany...
-
Page 2: Table Of Contents
Commands list ............8 Corporation. Examples ..............8 Editor Code Checking with cablabel S3 Pro ..... 9 Regarding questions or comments please contact cab Produk- ttechnik GmbH & Co. KG. Operation ..............10 Topicality Reference to the EU Declaration of Conformity .. 10 Due to the constant further development of our products discrepancies between documentation and product can occur. -
Page 3: Introduction

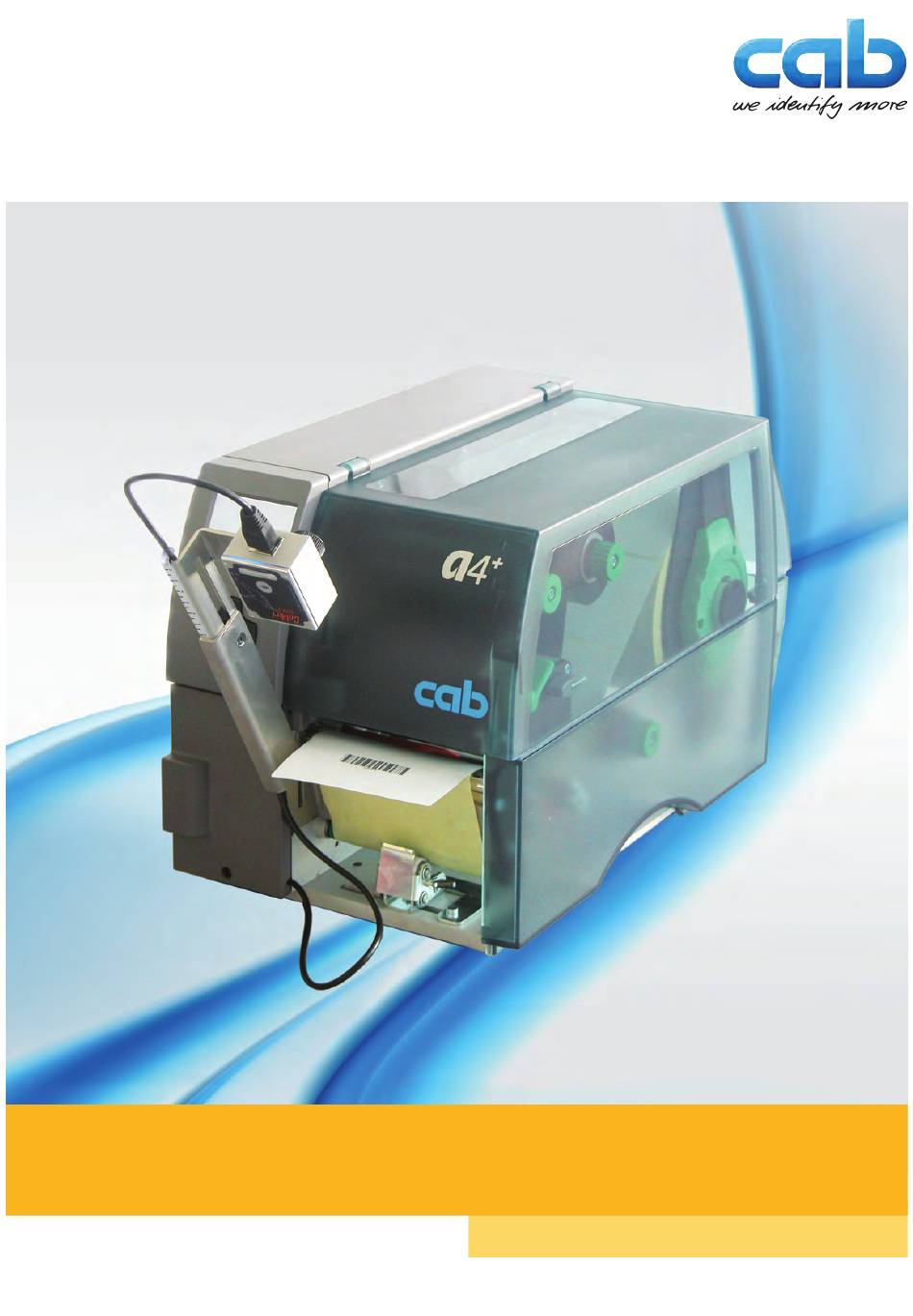

• The device is intended exclusively as a peripheral device for the cab printers of the A+ series for checking of printed linear barcodes and 2D codes. For that purpose the printer must be operated in peel-off mode and each label must contain one code only. -
Page 4: Safety Instructions
Introduction Safety Instructions • Disconnect the printer from the electrical outlet before mounting or removing the code checker. • Warning stickers must not be removed, as then you and other people cannot be aware of dangers and may be injured. •... -
Page 5: Technical Data
Introduction Technical Data for printer type A2+P A4+P Reading distance 87 -175 mm Reading angle -15° to +15° Codes per label Check functions GOODBAD Checking the readability VERIFY Checking the readability and comparing the result with the data received Table 1 Technical data Code Type... -
Page 6: Installation
Installation Unpacking Check stacker for damage which may have occurred during transport. Check delivery for completeness. Contents of delivery: • Present sensor with trigger input • Scanner with retainer • Operator's Manual • User's Manual Colibri incl. CD USB Cable Configuration Scanner •... -
Page 7: Adjusting The Scanner
Installation Adjusting the Scanner Figure 2 Adjusting distance and angle In order to adapt the code checker to the code to be checked the scanner may be adjusted : Notice! If the device was factory-adjusted the adjustment parameters can be found in the test record. Adjusting the reading distance •... -
Page 8: Code Checking With Jscript
Code Checking with JScript Commands list +VERIFYn Optional parameter for printer barcodes. This parameter allows the printer to verify that the printed data are identical to the data sent. «n» read offset in Y-position seen from the top of the barcode. +GOODBADn Optional parameter for printer barcodes. -
Page 9: Code Checking With Cablabel S3 Pro
Code Checking with cablabel S3 Pro To use the code checker with cablabel S3 Pro : Figure 3 Code checking with cablabel S3 Pro Right-click on the barcode and select "Barcode" Figure 4 Code checking with cablabel S3 Pro ... -
Page 10: Operation
If the result is negative the error message Scan no read appears. After removing the faulty label the print can be repeated by pressing the pause key. Reference to the EU Declaration of Conformity The Code Checkers CC2 and CC4 comply with the relevant fundamental regulations of the EU Rules for Safety and Health: •...
