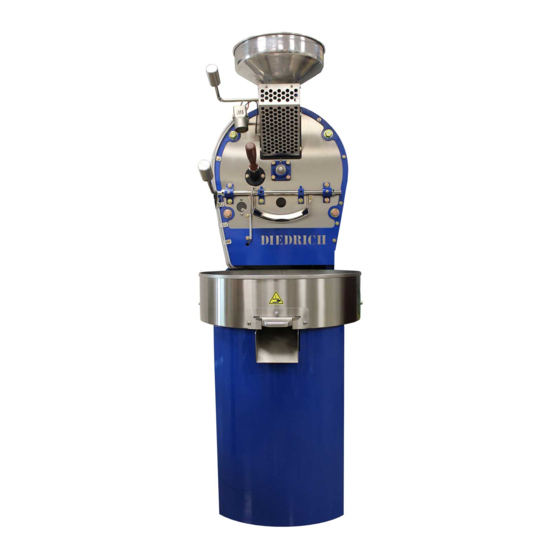

Diedrich Roasters IR Roaster Series Installation And Operation Manual

Destoner

IR Roaster Series

Destoner

Installation and Operation Manual

2016

Diedrich Roasters LLC, 30620 HWY 200 Ponderay, ID 83852

Telephone: (208) 263-1276

Toll Free: (877) 263-1276

Fax: (208) 265-4584

Technical Support: support@diedrichroasters.com

means, electronic, mechanical or otherwise, including photocopy and recording or in connection with any information storage or

retrieval system, without the written permission of Diedrich Roasters, LLC.

Table of Contents

Need help?

Do you have a question about the IR Roaster Series and is the answer not in the manual?

Page 1 PROPRIETARY RIGHTS NOTICE: All rights reserved. No part of this material may be reproduced or transmitted in any form or by means, electronic, mechanical or otherwise, including photocopy and recording or in connection with any information storage or retrieval system, without the written permission of Diedrich Roasters, LLC.
Page 2 Your destoner must be adjusted as needed for different coffees. The IR series destoner has a flow adjustment by means of a slide gate. If you have any questions on the operation, adjustments, or require other technical support on your roaster or ancillary equipment, please contact Diedrich Roasters, LLC 208-255-7033. ELECTRICAL INSTALLATION The destoner can be ordered in two different models.
Page 3 ADJUSTMENT Note: Before attempting any adjustments; mark the current factory settings with a felt- tip pen. This simple precaution will allow you to quickly return to the factory settings if needed. Adjust the vertical slide gate (located in the destoner chute) until the flow of coffee into the chute is approximately one layer of beans.
Page 4 At the factory every destoners is tested. Below is an example of the test material used in the factory tests. Under roasted coffee has been used in the tests alone along with a series of stones to test the performance of each destoner. Under roasted coffee.
