- Page 2 Warning Do not modify, dismantle or unintended operation this system outside Q-roi After Sales. Damage occurred by unintended operation may cause Q-roi After Sales service void. Warning During installation ignition key should be • taken off and after all installation finish connect power cable with interface for Warning the last step.

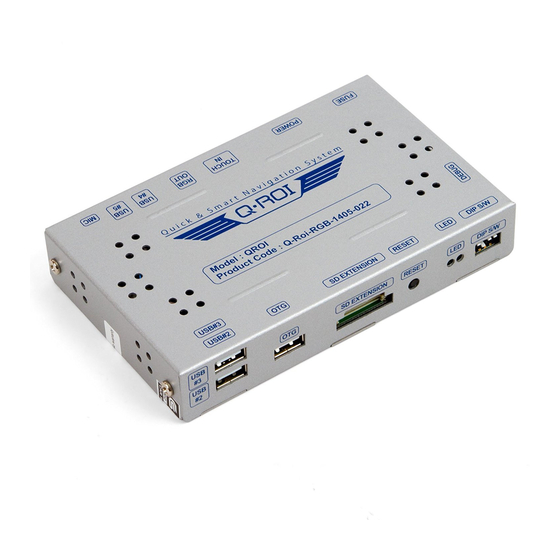

- Page 3 1. Features •Android 4.2.2 (Jelly Bean) •Processing Speed improvement (1GHz Cortex A9 Dual-Core CPU ) • video output fitted with each cars (1280x480, 800x480 LVDS) • Support a variety of multimedia ports (3*A/V Input, 1*Rear Camera Input, 1*MIC, 1*SPK, AUX OUT*1) •Support a variety of ways to store and communicate (4*USB 2.0, 1*SDHC Slot, 1*OTG)
-
Page 4: General Specification
2. General Specification Android 4.2.2 (Jelly Bean) Telechips TCC8930 (1GHz Cortex A9 Dual Core) Display OEM LCD Internal Memory DDR3 1GB RAM + 8GB eMMC External Memory SDHC Slot Support (up to 64GB) A/V Input x 3, Rear Cam Input x 1, CAN(Controller Area Network) x 2, Function Mic x 1,... -
Page 5: Original Button Usage
Press long : Switching mode (Original↔Q-ROI) Move to downward in Menu Move to upward in Menu Select / Confirm Move to backward in Menu Back button of Side bar <I-DRIVE> <Voice button-Steering wheel> <#8 button> ※ Press short, Can switch mode(QROI↔Original) -
Page 6: How To Use
4. How to use 4.1 Home Screen ※ After turning on the Q-Roi, Home screen shall be shown as below. ① Notification center Open the notification center by bring down the status bar ② Main Menu 5 manuals in the main screen. Favorable applications can be linked with 5 manuals . - Page 7 4. How to use 4.2 Changing the Link of Main Menu • Long press on the selected application in the application screen. • Application link will be popped up ① The name of the selected application will be shown. ② Select one of the main menus which you want to link with.
- Page 8 4. How to use 4.3 MULTIMEDIA • 4 menu buttons 4 menu buttons shall be shown after pressing Multimedia icon. Only applications can be linked with Music and Movie(Please refer to 5.2 Main menu : How to link • AV ①...
- Page 9 4. How to use 4.4 Utilize Side Bar Menu ※ Easy control by Using side bar menu buttons Side bar Menu buttons : Return to the previous applications or Restart or Delete. • Once Pressing the button, you will be able to see the previously used applications.
- Page 10 4. How to use (Return Key) : Return to the previous screen : Control the volume of Q-Roi and utilization of the offered speaker. : Select for utilization of the offered speaker. • Press the button to control the volume •...
- Page 11 5. Setting 5.1 Wi-Fi Setting ※ Wi-fi Dongle(Wi-fi adapter) is required to be installed. You can use Wifi by connecting Wi-bro devices or Mobile(Hotspot) with Q-Roi Apps ▶ Setting ▶ Press ‘Wi-Fi’ Or Main Menu ▶ SETUP ▶ Press ‘Wi-Fi’ ①...
- Page 12 5. Setting 5.2 Display ※ Set Main Screen Apps ▶ Setting ▶ Press Display Or Main menu SETUP ▶ Press Display • Press the Display button and The screen shall be shown as left photo. •Press ‘Application Rotation’ and you can select two options.
- Page 13 5. Setting 5.2 Display • Set Rear parking guide lines if you select PAS(Parking Assistance System). • Select touch calibration. • Press targets in order.
- Page 14 5. Setting 5.2 Display Setting ▶ Display ▶ Press ‘Star Application’ • Select an application to set up as staring program. (The selected application shall be activated after booting)
-
Page 15: Installing Applications
5. Setting 5.3 Installing applications Apps ▶ Qapklnstaller • Press the QapkInstaller •Select the one storing APK file among two options •Select APK file to install : Installation completed : Have not installed yet... - Page 16 5. Setting 5.4 Management of application ※ You can manage the application of Q-Roi. Apps ▶ Setting ▶ Press ‘Apps’ Or Main Menu SETUP ▶ Press ‘Apps’ • Please refer to the left photo. • Select an application to deactivate or delete the application...
-
Page 17: Updating System
5. Setting 5.5 Updating system Apps ▶ Setting ▶ Press ‘About tablet’ Or Main menu SETUP ▶ Press ‘About table’ •Select System update •Select Install system update (Use “update.zip” file) •Select Install firmware update (Use “fw.qvl” file) •Select one storing the updated file among the three options. - Page 18 5. Setting 5.5 Updating system •Press Install now to update • After being turned off, Update shall be started. •Check the updated version from Kernel version.
-
Page 19: Factory Mode
5. Setting 5.6 Factory Mode ※ Set the car model and devices. Apps ▶ Press ‘Qfactory’ •Activate Qfactory. •Fill out the Password. ※ Please ask the manufacturer for the password •Set ‘CAR MODEL ‘and others... -
Page 20: Cautions Before Installation
6. Cautions before Installation Ignition key should be taken off before starting installation, interface power connection must be the last step in installation. Power cable should be separated when connecting interface. Should be no any electronic devices or magnetic pole around ... -
Page 21: Installation
7. Installation 7.1 Dip Switch Setting(I/F) Function Select Dip S/W For MINI(F56) ON: F56(New MINI) ON : 6.5” Setup of monitor size OFF : 8.8” 10.2” ON : 3D GUI Model OFF : General GUI Model Car model Setup ON : Small Screen OFF : Full Screen ON : CVBS4 Setup of rear camera use... - Page 22 7. Installation 7.2 Setting Factory Menu ※ APPS→QFACTORY ① Put Password and change program upgrade and set-up of external device. (Only Installers are authorized) ※ Please contact the manufacturer to get Password.
- Page 23 7. Installation 7.2 Setting Factory Menu ⑤ ④ ① ② ③ ① CAR MODEL : No use ② DVD TYPE : Only for DVD connected to A/V (Connect IR-AV1 to DVD to use DVD as touch Screen) ③ CMMB SELECT : Select DTV model ( Only Chinese) ④...
-
Page 24: Installation Diagram
7. Installation 7.3 Installation Diagram Speaker SAFE FRONT CAN1- REAR Monitor CAN2- CAN1-L CAN2-L AUX-ON AUX-GND REAR CAM A OUT(R) A OUT(L) POWER TOGGLE POWER cable cable SD Card... - Page 25 7. Installation 7.4 Connection Monitor to Interface ① Remove the original LCD cable from the monitor and connect the provided LCD cable as the photo Provided LCD cable ② Connect the original LCD cable to LCD- IN of Interface. ※ Cautions : Do not connect Power cable to behind the Command or Cigar Jack power instead of ACC.
-
Page 26: Power Cable
7. Installation 7.5 Connection of CAN wires OEM CAN-Low OEM CAN-High <Q-ROI MAIN BOARD> Provided CAN1-High Power cable Control Box Provided CAN1-Low Please refer to the above diagram. Connect CAN1-H(Yellow + White) to CAN-H(Yellow + Red) of Car. Connect CAN1-L(White) to Original CAN-L(Yellow + Brown). -
Page 27: Quality Warranty
8. Quality Warranty This product has been tested and have passed under our strict quality control. If the failure occurred due to the carelessness of workmanship within one year after the purchase, we are responsible to repair free of charge. Please bring this warranty to dealer whom you purchased this product from at the repair time.
