Manual

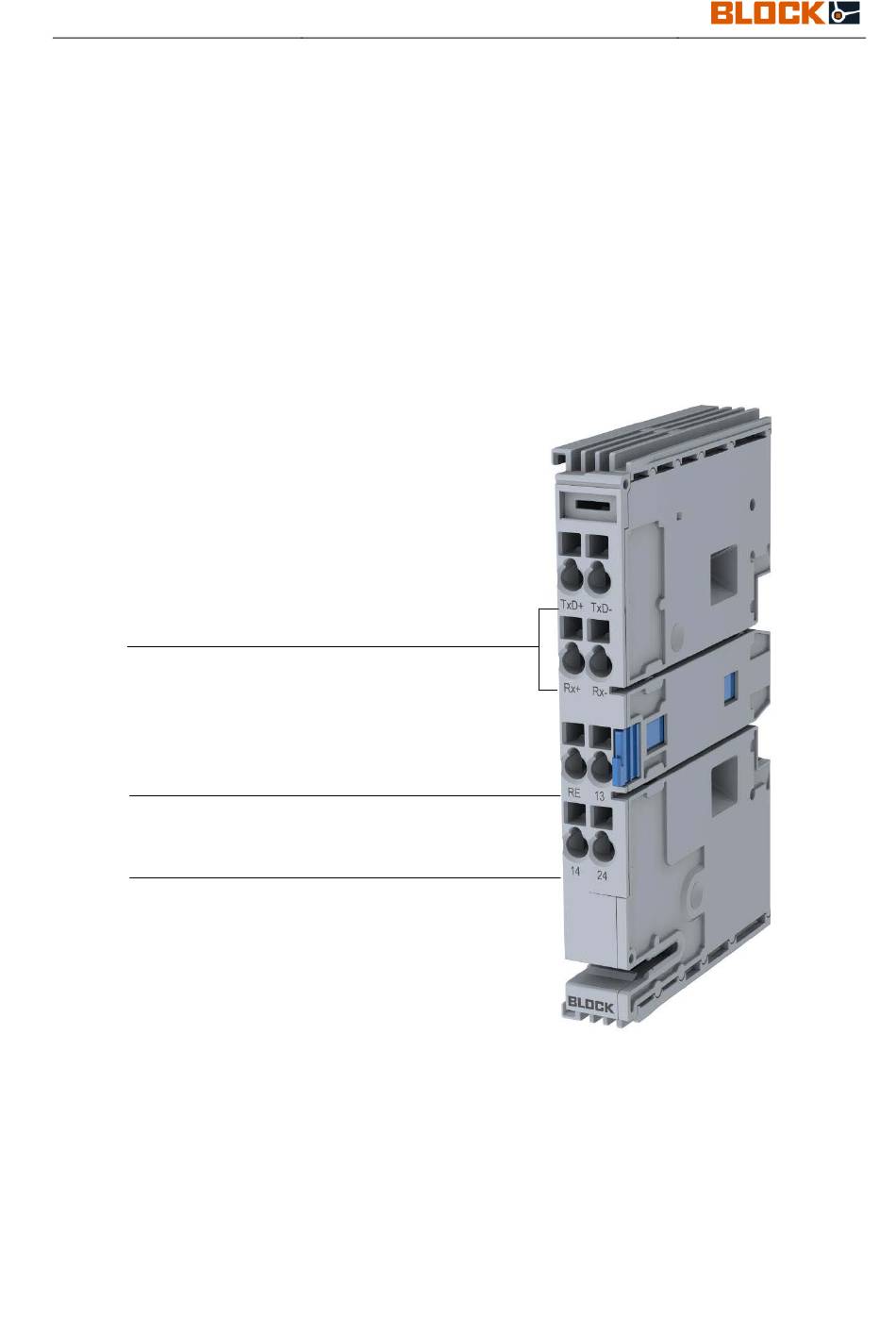

Communication Module Between PLC/PC and EasyB
Single-Channel Circuit Breaker System
RS 485/RS 422
Interface
Collective Reset Input
2 Potential-Free
Collective Signaling
BLOCK Transformatoren-Elektronik GmbH
Max-Planck-Straße 36-46 27283
EB-MODBUS-RTU
EB-MODBUS-RTU
.
Verden, Germany
10-23-17 / KRUT
Subject to technical changes
Page: 0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EB-MODBUS-RTU and is the answer not in the manual?

Questions and answers

Related Manuals for Block EB-MODBUS-RTU

Summary of Contents for Block EB-MODBUS-RTU

  • Page 1 Manual EB-MODBUS-RTU Communication Module Between PLC/PC and EasyB Single-Channel Circuit Breaker System RS 485/RS 422 Interface Collective Reset Input 2 Potential-Free Collective Signaling BLOCK Transformatoren-Elektronik GmbH 10-23-17 / KRUT Max-Planck-Straße 36-46 27283 Verden, Germany Subject to technical changes Page: 0...

  • Page 2: Table Of Contents

    5.2. Status Check ......................... 8 5.3. Error Message ........................9 Register Overview ........................10 6.1. EB-MODBUS-RTU ......................10 6.2. EB Single Channel Circuit Breaker ..................11 6.3. EB Status Byte ........................12 6.4. Coding of the Circuit Breaker Currents ................13 6.5.

  • Page 3: General Information

    Block to be checked. The device does not contain any service components. When an internal fuse is triggered, there is most likely an internal defect in the device. The data provided are for product description purposes only and should not be construed as legally guaranteed properties.

  • Page 4: Product Description

    Manual 2. Product Description 2.1. Description of the Communication Module The EB-MODBUS-RTU communication module serves as an interface for connection to a higher-level controller and is compatible with circuit breakers of the variants EB-08, EB-18, and EB-38. To ensure error-free operation, the maximum number of 40 circuit breakers must not be exceeded.

  • Page 5: Terminals

    +24VDC (18 - 30V) 3. Initialization In order for the EB-MODBUS-RTU to communicate with the PLC, the appropriate dip- switch configuration must be made. The MODBUS module initializes itself by applying the supply voltage to terminal IN+.

  • Page 6: Configuration

    19200 Bd 38400 Bd Parity / stop bits 1 2 3 4 5 6 7 8 2 stop, no parity 1 stop, parity even BLOCK Transformatoren-Elektronik GmbH 10-23-17 / KRUT Max-Planck-Straße 36-46 27283 Verden, Germany Subject to technical changes Page: 5...

  • Page 7: Byte Information

    19200 Bd 1 2 3 4 5 6 7 8 0 0 0 0 1 0 1 0 Slave EB-MODBUS-RTU Rx+ Rx- Master BLOCK Transformatoren-Elektronik GmbH 10-23-17 / KRUT Max-Planck-Straße 36-46 27283 Verden, Germany Subject to technical changes Page: 6...

  • Page 8: Configuration Example 4-Wire

    19200 Bd 1 2 3 4 5 6 7 8 0 0 0 0 1 0 1 0 Slave EB-MODBUS-RTU Rx+ Rx- Master BLOCK Transformatoren-Elektronik GmbH 10-23-17 / KRUT Max-Planck-Straße 36-46 27283 Verden, Germany Subject to technical changes Page: 7...

  • Page 9: Communication And Examples

    CRC-L CRC-H Slave MODBUS DATA MODBUS Telegram: Slave -> Addr. Function CRC-L CRC-H Master 5.2. Status Check Interrogate circuit breaker 1 via EB-MODBUS-RTU MODBUS DATA MODBUS Number of Telegram: Addr. Function r/w Start Addr. States Master -> Slave Byte Byte...

  • Page 10: Error Message

    Use of an unsupported short code Use of an unauthorized memory register Wrong value Device cannot process request at the moment. Repeat request later Field is read-only BLOCK Transformatoren-Elektronik GmbH 10-23-17 / KRUT Max-Planck-Straße 36-46 27283 Verden, Germany Subject to technical changes Page: 9...

  • Page 11: Register Overview

    EB-MODBUS-RTU Manual 6. Register Overview The following data can be set or retrieved via EB-MODBUS-RTU. 6.1. EB-MODBUS-RTU Table 1: EB-MODBUS-RTU Register Overview Query Response Starting Function Address Value Description Query status output 14 READ_COIL_Status 0x00 Off 0x01 Switched off by circuit breaker function (tripped)

  • Page 12: Eb Single Channel Circuit Breaker

    Query combination status 501 - 540 READ_HOLDING_REGISTERS 1. byte Status of EB-MODBUS-RTU signaling contacts 0x00 No events 0x01 Signal contact 14 (off / tripped) 0x02 Signal contact 24 (nominal current> = 90%) 2. byte EB circuit breaker status See EB status byte 3-4.

  • Page 13: Eb Status Byte

    As of protection switch version 1.10, the status byte has changed! • Bits 7 and 6 occur separately in the status byte. For this reason, all bits in the status byte must be evaluated individually. BLOCK Transformatoren-Elektronik GmbH 10-23-17 / KRUT Max-Planck-Straße 36-46 27283 Verden, Germany...

  • Page 14: Coding Of The Circuit Breaker Currents

    0xCB94 Fixed value 4A nominal EB-1824-060-0 0xCB96 Fixed value 6A nominal EB-1824-080-0 0xCB98 Fixed value 8A nominal EB-1824-100-0 0xCB9A Fixed value 10A nominal BLOCK Transformatoren-Elektronik GmbH 10-23-17 / KRUT Max-Planck-Straße 36-46 27283 Verden, Germany Subject to technical changes Page: 13...

  • Page 15: Options

    The "Automatic Addressing on/off" option is only available with protection switch • version 1.10 and enables the automatic address assignment of an already addressed group when the supply voltage is switched off. BLOCK Transformatoren-Elektronik GmbH 10-23-17 / KRUT Max-Planck-Straße 36-46 27283 Verden, Germany...
  • Page 16 Options the rest remain unchanged Options Complement 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 reset BLOCK Transformatoren-Elektronik GmbH 10-23-17 / KRUT Max-Planck-Straße 36-46 27283 Verden, Germany Subject to technical changes Page: 15...
