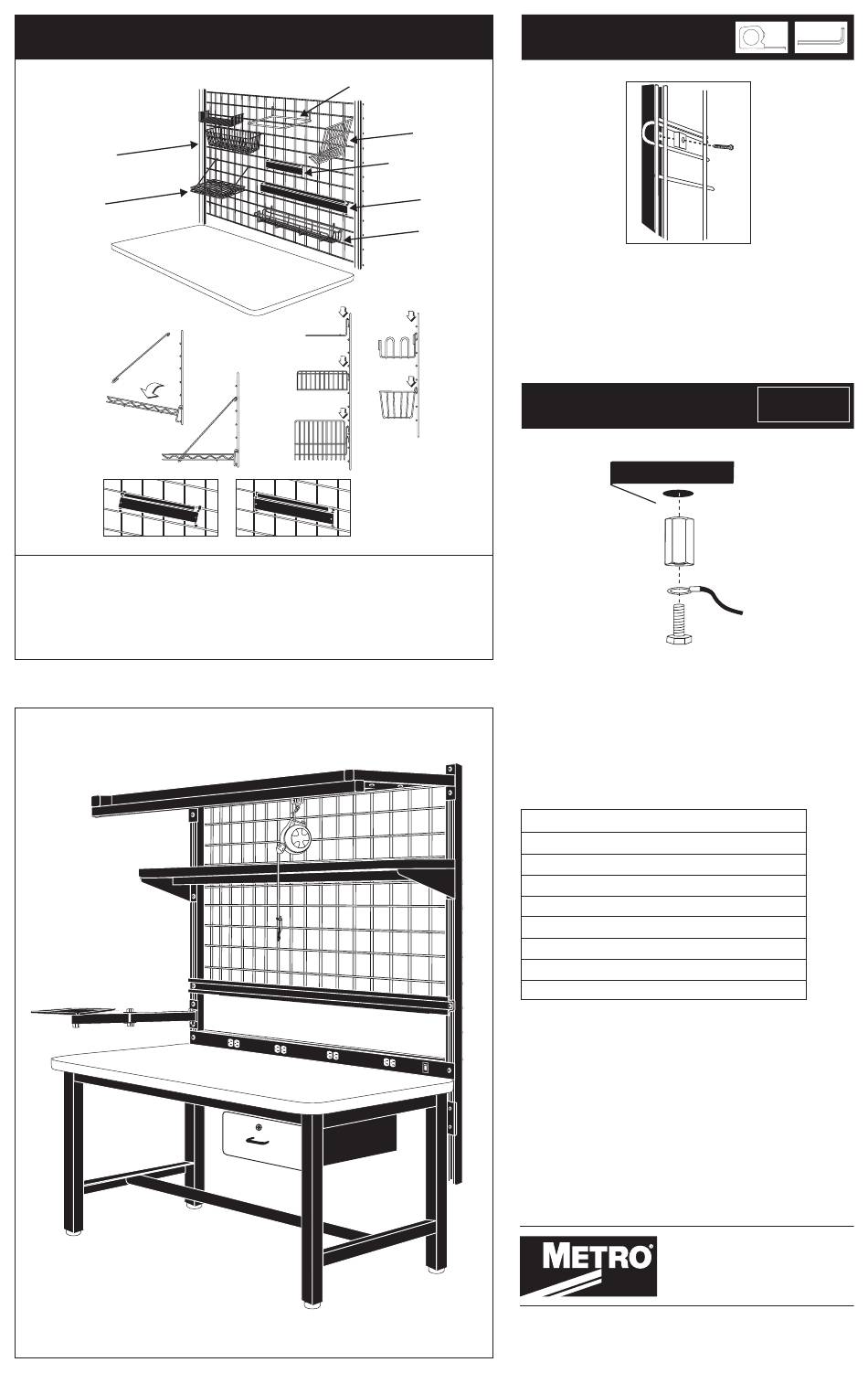

GRID AND AccESSORIES
GRID
AccESSORIES
wIRE
BASkET
mONITOR
ShELf
Attach bin holders by first sliding top corner tabs up
behind a horizontal grid rod, then press bin holder
against the grid and slide down until the bottom corner
tabs are behind the next horizontal grid rod down.
GRID
ShELf
cATALOG/
fILE
hOLDER
11" BIN
hOLDER
22" BIN
hOLDER
UTILITy
RAck
GRID
INSTALLATION
rear of upright
Attach wire grid according to your
requirements. Typically, it's a good idea
to install top of wire grid 12"-18" from top
of uprights.
ESD BENchTOp
wORkBENch
SySTEm
Assembly Instructions
Model no.
description
MsB3060c
30 x 60, ESD
MsB3060l
30 x 60, Non-ESD
MsB3072c
30 x 72, ESD
MsB3072l
30 x 72, Non-ESD
MsB3660c
36 x 60, ESD
MsB3660l
36 x 60, Non-ESD
MsB3672c
36 x 72, ESD
MsB3672l
36 x 72, Non-ESD
interMetro industries corporation
North Washington Street
Wilkes-Barre, PA 18705
For Product Information, Call (800) 433-2232
Visit Our Web Site: www.metro.com
grounding
instructions
L01-338
rev. B
8/08
Information and specifications are subject to change
without notice. Please confirm at time of order.
Page 4
