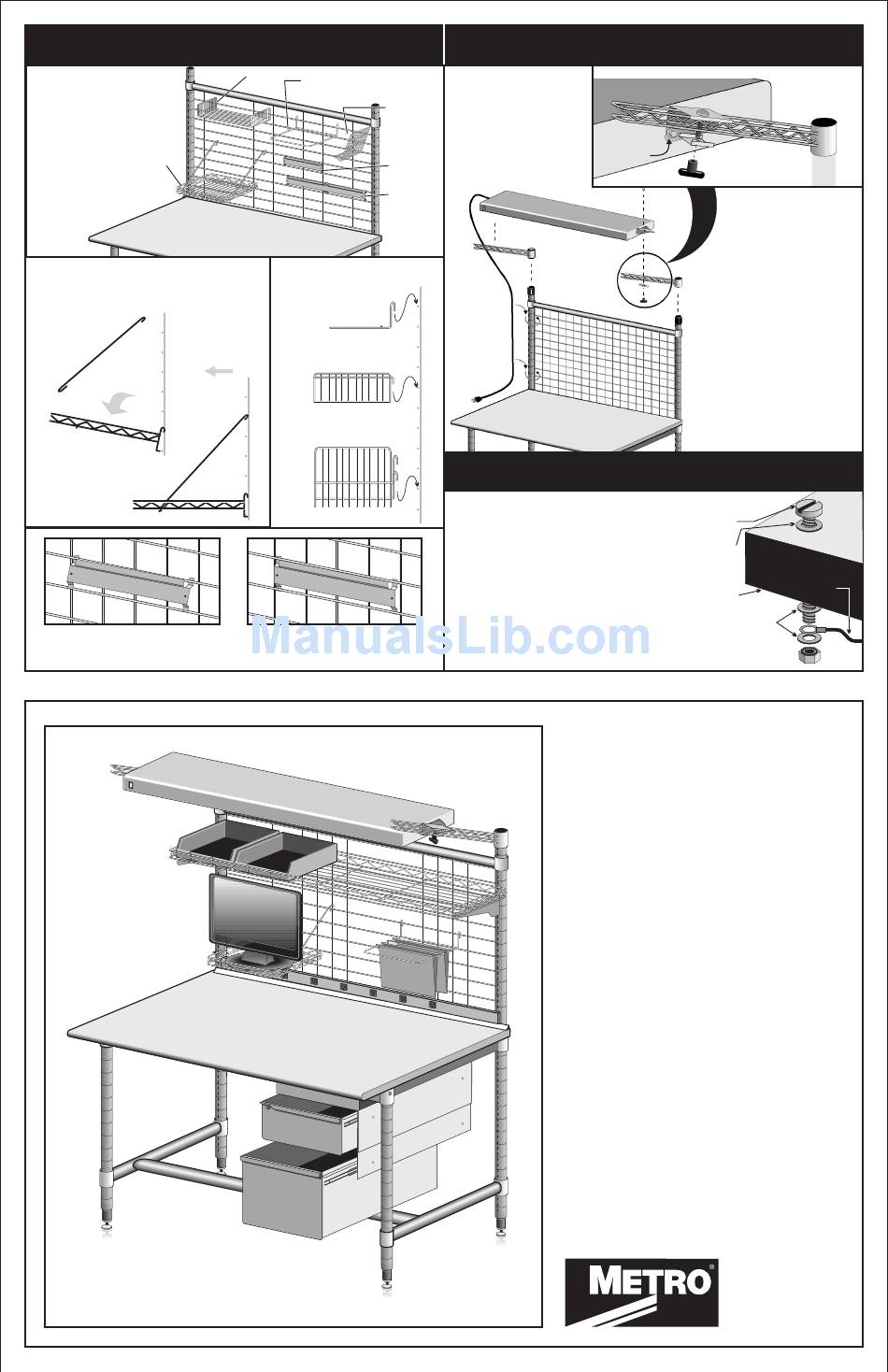

Metro DataVac PBL3072L Assembly Instructions

GRID ACCESSORIES
GRID
ACCESSORIES
MONITOR SHELF
MONITOR SHELF
GRID
(END VIEW)
(END VIEW)
SUPPORT
BRACE (2)
FRONT
Attach Bin Holders by first sliding top corner tabs up behind a horizontal Grid
rod, then press Bin Holder against the Grid and slide down until the Bottom
corner tabs are behind the next horizontal Grid rod down.
GRID SHELF
HANGING FILE HOLDER
HANGING FILE HOLDER
(END VIEW)
TO
GRID SHELF
(END VIEW)
CATALOG/FILE HOLDER
(END VIEW)
OVERHEAD LIGHT
CATALOG/FILE
HOLDER
11" BIN
HOLDER
22" BIN
HOLDER
USE TWO
TIE WRAPS
TO SECURE
CORD TO
POST
ESD BENCHTOP
1. Drill 3/16" dia. hole through benchtop
near one of the rear corners.
2. Assemble grounding wire as shown.
3. To ensure ESD properties, tighten nut
securely and connect other end of bench
grounding wire to facility ground.
Due to normal shrinkage and expansion
of laminates, it may be necessary to
retighten this connection. Periodically
check for continuity to ground.
NOTE: Benchtop is conductive only if
its edge banding is black.
TILT-ADJUSTING
SCREW - USE
HEX WRENCH
First attach Light Supports
to rear Posts on plastic
sleeves positioned at the
top grooves. Then attach
Light to Supports as shown
above by assembling the
clamps around the
Supports, with the bolt
dropping down through the
middle of the Support.
Secure and tighten with
threaded plastic Knob as
shown.
GROUNDING
INSTRUCTIONS
#10 X 1 3/4"
PAN HEAD SCREW
#10 STAR WASHER -
MAKE SURE IT DIGS
INTO SURFACE!
BLACK EDGE
W B
O R K E N C H
S
YS T E M
Assembly Instructions
MODEL NO. DESCRIPTION
PBL3060L Low Profile
PBL3060LP
Low Profile with Power
PBL3072L Low Profile
PBL3072LP Low Profile with Power
PBL3060C
Low Profile
PBL3060CP
Low Profile with Power
PBL3072C
Low Profile
PBL3072CP
Low Profile with Power
PBH3060L
High Profile
PBH3060LP
High Profile with Power
PBH3072L
High Profile
PBH3072LP
High Profile with Power
PBH3060C
High Profile
PBH3060CP
High Profile with Power
PBH3072C
High Profile
PBH3072CP
High Profile with Power
InterMetro Industries Corporation
North Washington Street
Wilkes-Barre, PA 18705
(717) 825-2741
Revision C
L01-194 9/2008
BULBS NOT
INCLUDED
GROUNDING
WIRE
FLAT
WASHERS
KEP NUT
