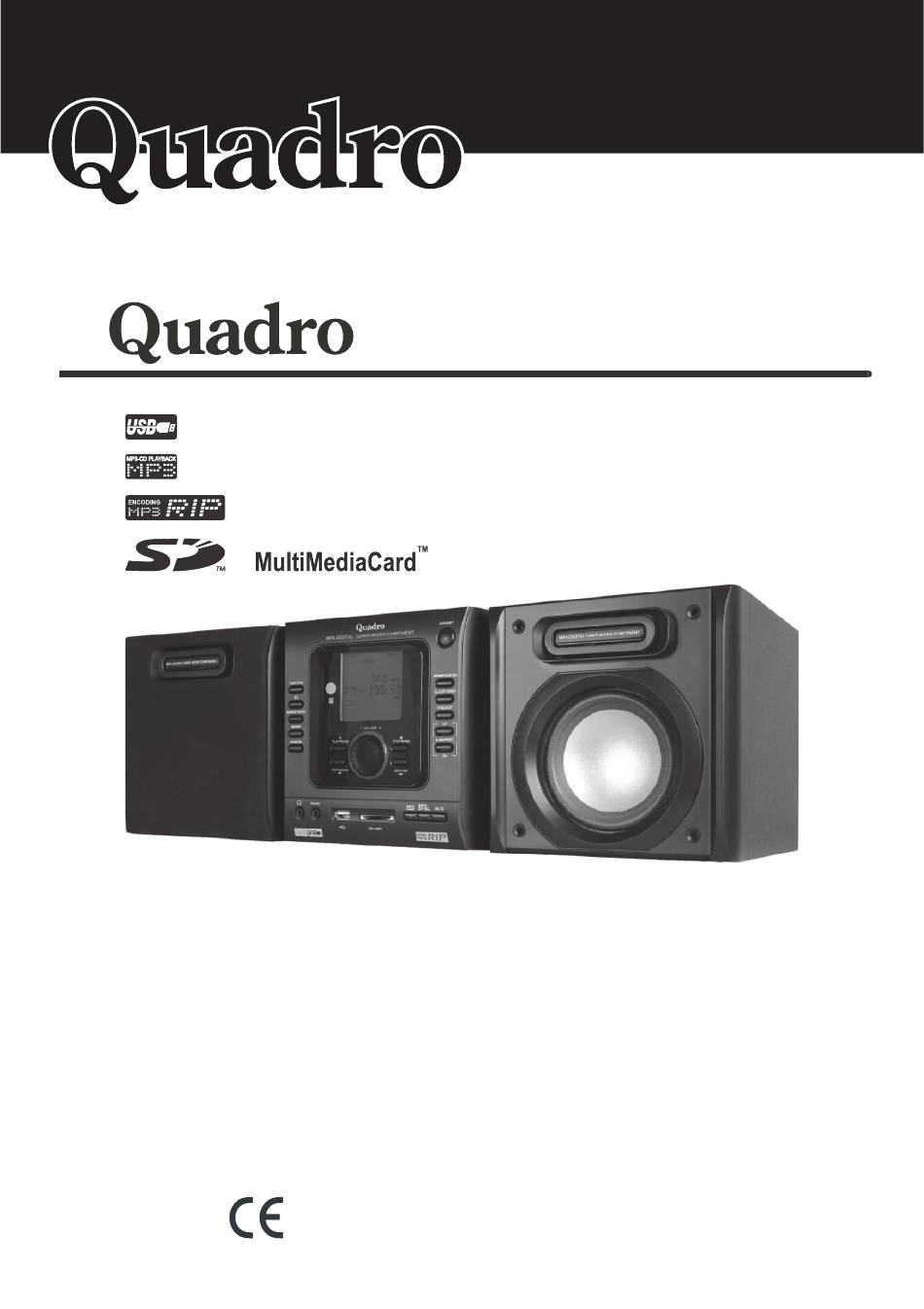

- Page 1 ENGLISH MICRO AUDIO SYSTEM USER MANUAL MC-355 USB Please read this User Manual carefully to ensure proper use of this product and keep this manual for further reference.
-
Page 2: Class 1 Laser Product
ENGLISH WARNING TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE. The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. -
Page 3: Safety Instruction
ENGLISH SAFETY INSTRUCTION 1. READ INSTRUCTIONS - All the safety and operating instructions should be read before the appliance is operated. 2. RETAIN INSTRUCTIONS - The safety and operating instruction should be retained for future reference. 3. HEED WARNINGS - All warnings on the appliance and in the operating instruc tions should be adhered to. -
Page 4: Outdoor Antenna Grounding
ENGLISH PORTABLE CART 15. CARTS AND STANDS - The appliance should be used WARNING only with a cart or stand that is recommended by the man ufacturer. An appliance and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the appliance and cart S3125A combination to overturn. -
Page 5: Handling Compact Discs
ENGLISH HANDLING COMPACT DISCS This unit has been designed to play compact discs bearing the identification logo shown at the left. No other discs can be played. 1. Open a disc case by holding the bottom left and right sides with the right hand, and then lighting the top cover with the left hand. -
Page 6: Control And Indicators
ENGLISH CONTROL AND INDICATORS... - Page 7 ENGLISH 1. STANDBY Key • Press to turn the power On/Standby. 2. MEMORY/CLK ADJ key • In the Radio mode: for memory preset. • In the CD/MP3 mode, USB or SD/MMC for setting program. • In the clock mode: for setting of the clock or timer adjustment. 3.
-
Page 8: Function Key
ENGLISH 14. MONO/ST./INTRO key • CD/MP3 mode, USB or SD/MMC: to set or release the intro mode. • Radio mode: to set mono or stereo. 15. EQ Key • For selecting Digital Sound Control: FLAT, CLASSIC, ROCK, POP & JAZZ. 16. -
Page 9: Remote Control
ENGLISH REMOTE CONTROL 1. MUTE Key 2. INFO/BIT-SEL Key 3. PLAY/PAUSE (CD MODE SELECTION) 4. SKIP-/DOWN 5. ALBUM/PRESET - Key 6. REPEAT Key 7. EQ Key 8. SLEEP/TIMER Key 9. MEMORY/CLK ADJ key 10. RANDOM key 11. MONOST./INTRO Key 12. ALBUM/PRESET + Key 13. -
Page 10: Operation/Tuner
ENGLISH OPERATION POWER STANDBY ON/OFF When you first plug the unit into the mains, the unit will go into standby mode. The display will show the time. • You can press STANDBY to switch on the unit. • The standby function of the unit remains on until the unit is switched on. •... - Page 11 ENGLISH OPERATION/COMPACT DISC/MP3/WMA Press FUNCTION key to select CD/MP3 mode. INSERTING THE MP3/WMA-CD/CD DISC 1. Press OPEN/CLOSE to open the CD door. 2. Insert a MP3-CD/CD in the tray. 3. Press OPEN/CLOSE again to close the CD door. • The MP3-CD/CD-player starts and scans the contents list of the MP3/WMACD/CD.
- Page 12 ENGLISH FIND BY FILE NAME • Press FIND/ESP once to access this search mode. The display will show letter "A". If any file name start with letter "A", It will appear on the display. You can Press to search from A-Z,0-9. •...
- Page 13 ENGLISH 5. Press REPEAT four times to cancel the repeat function. RANDOM PLAY Press RANDOM button once, "RANDOM" will be appear on the LCD, press RANDOM button twice to cancel the RANDOM function. INTRO PLAY Press INTRO button once,"INTRO" will be appear on the LCD, play 10 sec of each track/file.
- Page 14 ENGLISH 4. Press key, “USB CARD” will dispaly on the LCD. Press select record into the USB or CARD. 5. Press key, start to record. Press key again, stop recording. 6. The MP3 music have been saved in the USB or CARD audio folder last song. NOTE: AM station can not record;...
- Page 15 ENGLISH OPERATION/TIMER Before setting the timer, make sure the clock is correctly set. TIMER ON SETTING Select TUNER or CD mode and select the desired sound source. 1. If you select BAND, press to select a preset station. 2. The display will show the selected preset station and frequency. 3.
- Page 16 ENGLISH OPERATION/SLEEP 1. Press SLEEP/TIMER , "SLEEP" appear on the display. 2. Keep pressing SLEEP to adjust the sleep time in the order of 90>80>70...10 minutes. 3. To cancel the sleep mode, press SLEEP/TIMER again. OPERATION/PRESET EQUALIZER Press PRESET EQ to select the digital sound performance in the order of FLAT, CLASSIC, ROCK, POP and JAZZ.
-
Page 17: Specifications
ENGLISH SPECIFICATIONS Power Supply 230V/50Hz (EURO); 120V/60Hz (USA) Output Power (Per Channel) 5 watts RMS into 4 ohm Power Consumption Radio Section Frequency Range MW 522 - 1620 KHz; FM 87.5 - 108 MHz (EUR) AM 520 - 1710 KHz, FM 87.5 - 108MHz (USA) Compact Disc Section Frequency Response (-6dB) 60-15,000 Hz... - Page 18 Electronic Supplied by: Switzerland Establishment...
