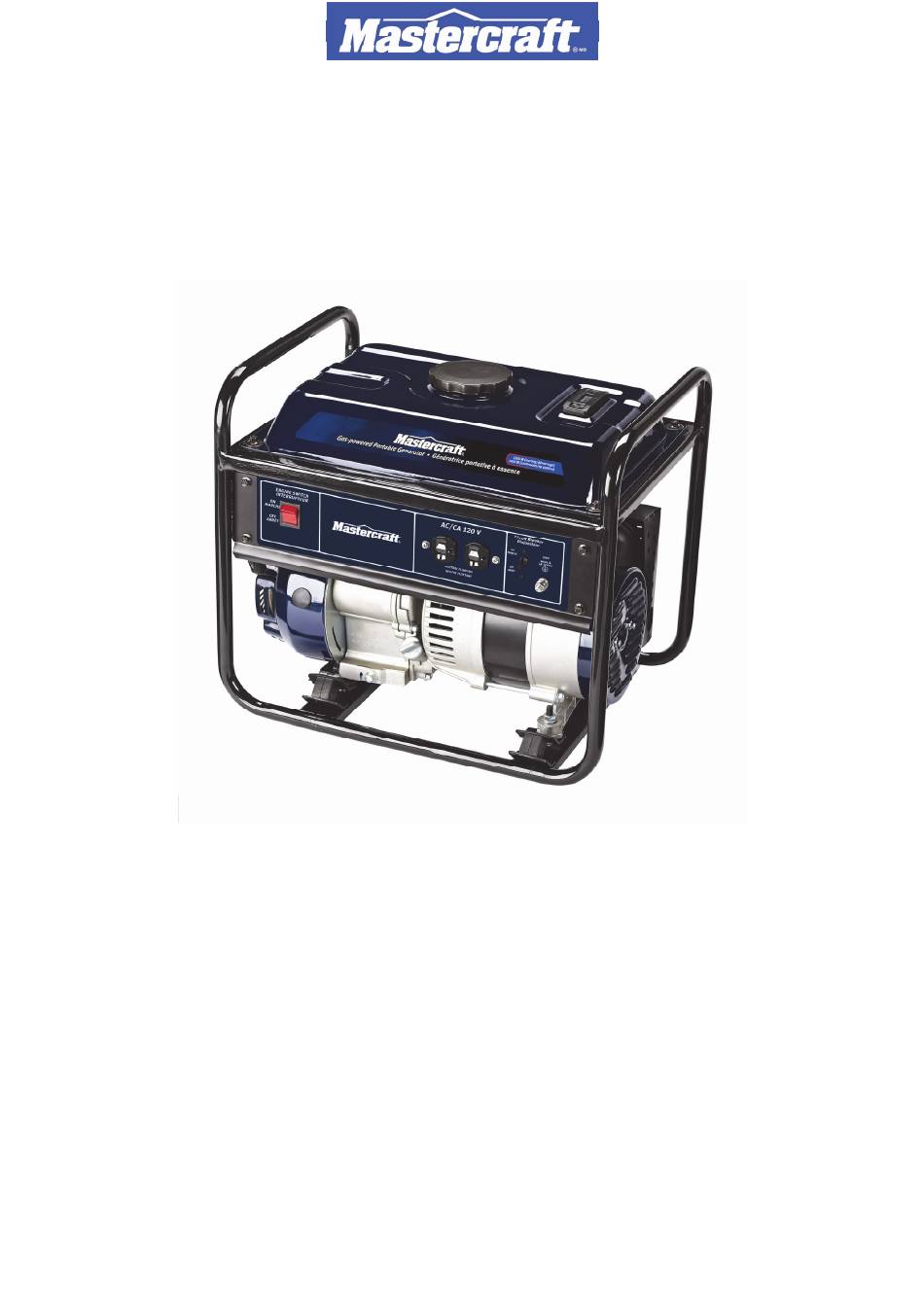

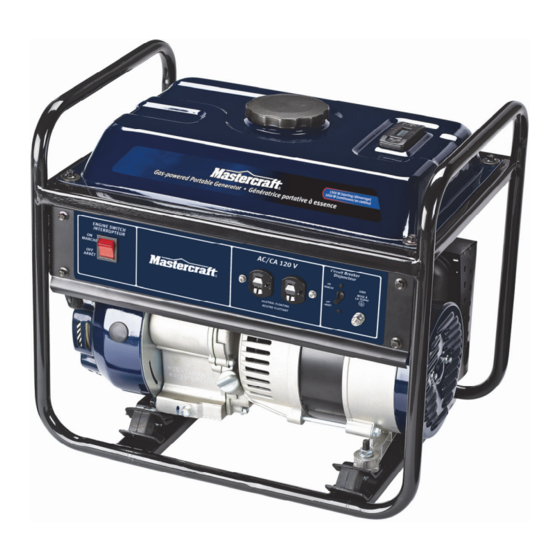

- Page 1 1050W Gasoline Powered Generator 55-0343-4 Owner’s Manual Toll-Free Helpline: 1-800-689-9928 Before using the generator for the first time, read through this instruction manual carefully. Keep for future reference; do not throw away. Version 1...
-
Page 3: Table Of Contents
STORAGE & TRANSPORTINGYOUR GENERATOR….………………………………………….……. 19 TROUBLESHOOTING ……………………………………………………………………………………… 20 COLD WEATHER STARTING TIPS …………………………………………………………………….…21 EXPLODED DRAWING……………………………………………………………………………………...22 PARTS LIST ………………………………………………………………………..…………………….….. 24 ORDERING REPLACEMENT PARTS……………………………………………………………………..25 LIMITED WARRANTY……………………………………………………………………………………...25 SPECIFICATIONS Model 55-0343-4 Degree of Protection IP23 AC Output Voltage(V) 120V Cont. AC Output(w) 1050 Alternator 60Hz Max. -
Page 4: Safety Instructions
NOTE: The figures quoted on the previous page in the above table are emission levels and are not necessarily safe working levels. While there is correlation between the emission and exposure levels, this cannot be reliably used to determine whether or not further precautions are required. - Page 5 all electrical loads before shutting off the generator. • Do not insert objects through unit’s cooling slots. • When working on this equipment, remain alert at all times. • Never work on the equipment when physically or mentally fatigued. • Never use the generator or any of its parts as a step. Stepping on the unit can stress and break parts, and may result in dangerous operating conditions from leaking exhaust gases, fuel leakage, oil leakage, etc.
- Page 6 • Do not overfill the fuel tank. Always allow room for fuel expansion. If tank is over-filled, fuel can overflow onto a hot engine and cause FIRE or an EXPLOSION. Never store generator with fuel in tank where gasoline vapours might reach an open flame, spark or pilot light (as on a furnace, water heater or clothes dryer).
- Page 7 WARNING: The exhaust from this product contains chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm. WARNING: This generator may emit highly flammable and explosive gasoline vapours, which can cause severe burns or even death. A nearby open flame can lead to explosion even if not directly in contact with gas.
-
Page 8: Know Your Generator
In addition to the above safety notices, please familiarize yourself with the safety and hazard markings on the generator. KNOW YOUR GENERATOR Please familiarize yourself with the locations and functions of the various components and controls of your generator. PACKAGE CONTENTS Your generator comes with the items listed below. -
Page 9: Preparing The Generator For Use
(6) Engine Switch - Used to start/stop engine. (7) Recoil Starter - Pull-cord for starting engine. (8) Air Cleaner - A removable, cleanable, sponge-like element that limits the amount of dirt pulled into the engine. (9) Fuel Valve - Allows fuel to enter engine. (10) Fuel Tank -Contain the fuel. - Page 10 Figure 2- Unscrewing the oil cap Figure 3 - Adding oil Step 2- Add Gasoline WARNING: Gasoline and gas fumes are highly flammable. Do not fill tank near an open flame. Do not overfill. Always check for fuel spills. To ensure that the generator runs smoothly use only FRESH, UNLEADED GAS WITH AN OCTANE RATING OF 87 OR HIGHER.
-
Page 11: Subsequent Use Of The Generator
Figure 5 – Attaching the Grounding Wire to the Generator SUBSEQUENT USE OF THE GENERATOR If this is not your first time using the generator there are still steps you should take to prepare it for operation. IMPORTANT: At this point you should be familiar with the procedures described in the first portion of this section entitled "Using the Generator for the First Time."... -
Page 12: Operation
Do not overfill (check the "Specifications" section for the tank capacity of your generator). Always check for fuel spills. IMPORTANT: Use only UNLEADED gasoline with an octane rating of 87 or higher. Do not use old gas. ... -
Page 13: Using The Generator
5. Pull on the recoil starter handle slowly until a slight resistance is felt (see figure 8). Then pull quickly to start the engine. Return cord gently into the machine. Never allow the cord to snap back. 6. If engine fails to start, repeat step 4. NOTE: After repeated attempts to start the engine, please consult the troubleshooting guide before attempting again. -
Page 14: Ac Usage
Model Number Rated (Running) Wattage Surge Wattage 55-0343-4 1050 1350 Figure 9 - Generator Wattage by Model Number The total running wattage requirement of the electrical devices connected to the generator should not exceed the rated wattage of the generator itself. - Page 15 If these specifications are not available you may estimate the Watts required by your device by using the chart in figure 10. Tool or Appliance Rated (Running) Watts Additional Surge Watts Microwave 1000 Well Water Pump 1000 1000 Reciprocating Saw 1040 Sump Pump 1200...
- Page 16 beginning with the device with the highest rated Wattage requirement. CAUTION: Do not connect 50Hz or 3-phase loads to the generator. Figure 11 - Receptacles Available on the Generator SOME NOTES ABOUT POWER CORDS Long or thin cords can drain the power provided to an electrical device by the generator. When using such cords, allow for a slightly higher rated wattage requirement than the electrical device.
-
Page 17: Stopping The Generator
STOPPING THE GENERATOR To stop the generator: 1. Turn off, and then unplug all connected electrical devices. 2. Switch the circuit breaker to the "OFF” position. 3. Allow the generator to run for several more minutes with no electrical devices connected. This helps stabilize the temperature of the generator. - Page 18 Never clean your generator with a bucket of water or a hose. Water can get inside the working parts of the generator and cause a short circuit or corrosion. Checking the Oil The generator is equipped with an automatic shutoff to protect it from running on low oil. Nonetheless, you should check the oil level of the generator before each use to ensure that the generator crankcase has a sufficient amount.
- Page 19 NOTE: Never dispose of used motor oil in the trash or down a drain. Please call your local recycling center or auto garage to arrange oil disposal. Air Cleaner Maintenance Routine maintenance of the air cleaner helps maintain proper airflow to the carburetor. Occasionally check that the air cleaner is free of excessive dirt.
-
Page 20: Storage & Transportingyour Generator
Replace the spark plug cap. Figure 20-Unsrewing the Spark Plug Figure 21-Measuring the Spark Plug Gap STORAGE & TRANSPORTING YOUR GENERATOR After Longer Durations of Storage 1. Pour one tablespoon of SAE 10W30 in summer and SAE 5W30 in winder of oil through spark plug hole. -
Page 21: Troubleshooting
Disconnect the spark plug. Do not obstruct any ventilation openings. Keep the generator in a cool dry area. LONG TERM STORAGE It is important to prevent gum deposits from forming in essential fuel system parts such as the carburetor, fuel hose or tank during storage. -
Page 22: Cold Weather Starting Tips
COLD WEATHER STARTING TIPS Generally, most gas powered generators experience increased difficulty in starting during cold temperatures. While your generator has been tested for cold weather starts, you will experience greater difficulty when attempting to start the engine at temperatures below freezing. Ease of starting improves if the generator has been stored under warmer temperate conditions such as in a garage or basement. -
Page 23: Exploded Drawing
Once the engine starts, it may stop immediately. If so, repeat the starting procedure. Once the engine starts and does not stop immediately, allow it to run for 15 seconds and then gradually move the choke lever to the left (RUN) position (i.e. proper mix of air and fuel). CAUTION: ... -
Page 25: Parts List
PARTS LIST Description Description CYLINDER HEAD SUBASSEMBLY FUEL TANK COVER, CYLINDER HEAD GASKET, FUEL VALVE ASSY CYLINDER HEAD COVER SUBASSEMBLY COLLAR CYLINDER HEAD COVER GASKET, WASHER BREATHER TUBE, BOLT BOLT（M6×12) OIL LEVELER ASSY STUD（M6×96) SCREW STUD（M8×34） FUEL TUBE PIN (φ10×14) FLYWHEEL NUT CYLINDER HEAD BOLT STARTER PULLEY... -
Page 26: Ordering Replacement Parts
•The name of the product: MASTERCRAFT 1000W Gasoline Powered Generator LIMITED WARRANTY This MASTERCRAFT product is guaranteed for 2 years from the date of original retail purchase against defects in materials and workmanship. Subject to the conditions and limitations described below, this product, if returned to us with proof of purchase within the stated warranty period and if covered under this warranty, will be repaired or replaced (with the same model, or one of equal value or specification), at our option. - Page 27 a) A bill of sale verifying the purchase and purchase date must be provided; b) this warranty will not apply to any product or part thereof which is worn or broken or which has become inoperative due to abuse, misuse, accidental damage, neglect or lack of proper installation, operation or maintenance (as outlined in the applicable owner’s manual or operating instructions) or which is being used for industrial, professional, commercial, or rental purposes.
