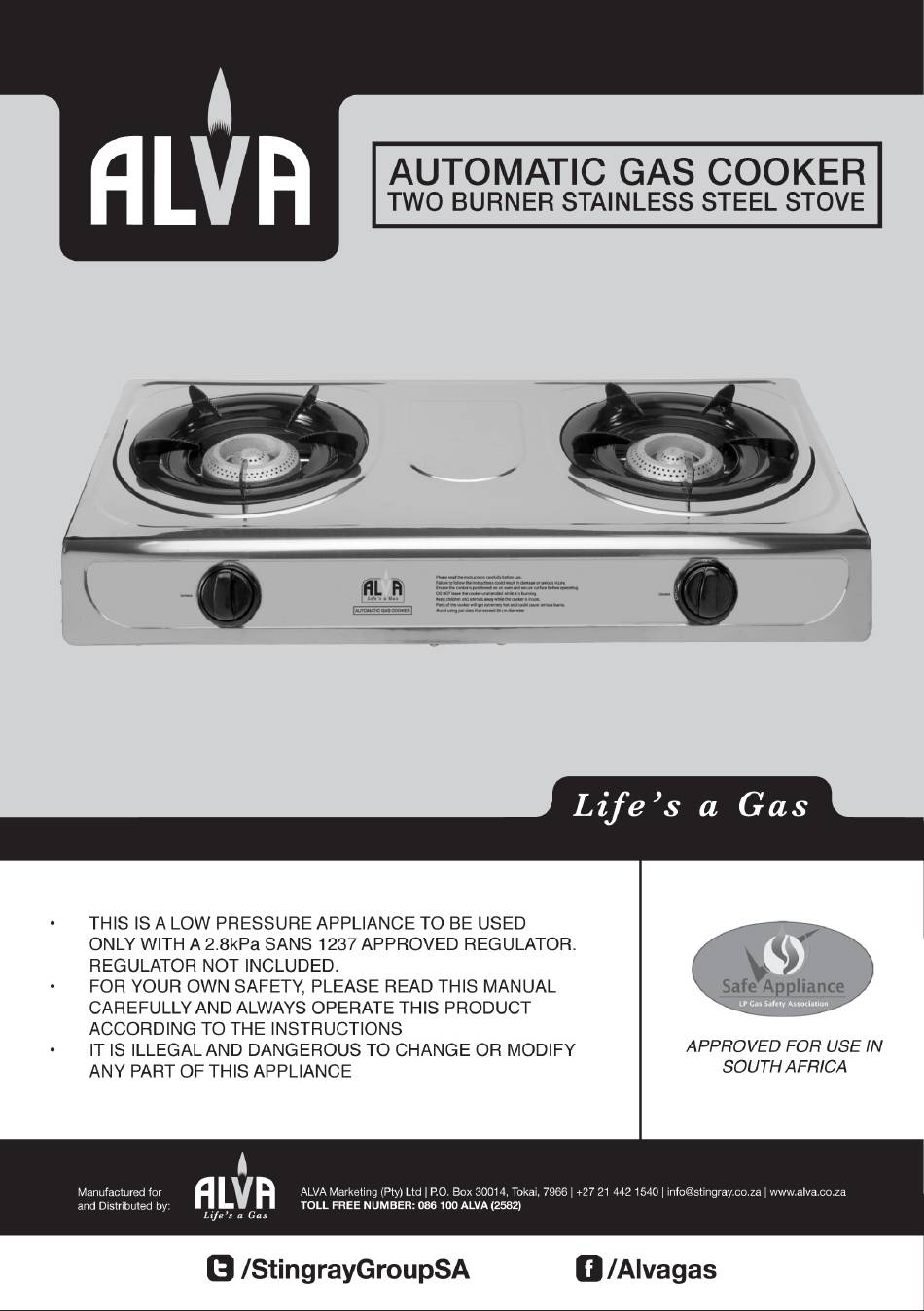

AUTOMATIC GAS COOKER
•
THIS IS A LOW PRESSURE APPLIANCE TO BE USED
ONLY WITH A 2.8kPa APPROVED SANS 1237 REGULATOR.
REGULATOR NOT INCLUDED.
•
PLEASE READ THESE INSTRUCTIONS CAREFULLY
BEFORE USE.
•
RETAIN THIS MANUAL FOR FUTURE REFERENCE
Manufactured for
and Distributed by:
ALVA Marketing (Pty) Ltd
|
P.O. Box 30014, Tokai, 7966
TOLL FREE NUMBER: 086 100 ALVA (2582)
TWO BURNER
STAINLESS STEEL STOVE
APPROVED FOR USE IN
SOUTH AFRICA
|
+27 21 442 1540
|
info@stingray.co.za
|
www.alva.co.za
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Alva GCS04
Summary of Contents for Alva GCS04
- Page 1 ONLY WITH A 2.8kPa APPROVED SANS 1237 REGULATOR. REGULATOR NOT INCLUDED. • PLEASE READ THESE INSTRUCTIONS CAREFULLY BEFORE USE. • RETAIN THIS MANUAL FOR FUTURE REFERENCE APPROVED FOR USE IN SOUTH AFRICA ALVA Marketing (Pty) Ltd P.O. Box 30014, Tokai, 7966 +27 21 442 1540 info@stingray.co.za www.alva.co.za Manufactured for TOLL FREE NUMBER: 086 100 ALVA (2582) and Distributed by:...
- Page 2 IMPORTANT SAFETY INFORMATION • Please read these instructions carefully before using your Please read the instructions carefully cooker. before use. • The operator must understand all safety requirements as detailed in this manual before using the unit. Retain this manual for • The operator is responsible for the safety of all third parties future reference while the cooker is in use. • The manufacturer’s warranty may be voided by incorrect use of this product. • If you have any queries regarding these instructions, contact your local dealer for clarification before you use your cooker. • The unit must be thoroughly checked before use. • Failure to follow the manuals instructions could result in damage or serious injury. • Ensure that the cooker is positioned on an even and secure surface before operating. • Ensure that all gas fittings are correctly and firmly fitted.
-
Page 3: Table Of Contents
INDEX INDEX FEATURES PART NAMES Notes marked with the following; CAUTION SETTING UP YOUR COOKER Contain important information LEAK TEST FITTING AND CHANGING THE GAS CYLINDER USING THE COOKER Notes marked with the TO LIGHT THE BURNERS following; AIR FLOW ADJUSTMENT IF THE BURNERS DO NOT IGNITE TO TURN THE BURNERS OFF Contain cautions and CARE AND MAINTENANCE warnings. TROUBLE SHOOTING GUIDE IT DOES NOT IGNITE IT SMELLS OF GAS COMBUSTION IS ABNORMAL SPECIFICATIONS AFTER SALES SERVICE... -
Page 4: Features
FEATURES • High quality advanced auto ignition system • “Easy on the eye” body lines Thank you for your • Pot support purchase of this gas • One integrated ring burner and one auxiliary burner per pot cooker. station. Please read these instructions carefully before use and keep PART NAMES them in a safe place for future reference. 1. Top panel 2. Burner 3. Legs 4. Front panel... - Page 5 • Make sure that there are no inflammables near the gas Curtain cooker. (Fig. 3) Paper Fig.3 • Only use a SANS 1156-2 or BS3212/2 approved gas hose. (Fig. 4) Rubber hose Vinyl plastic hose Fig.4 • After use, turn the ignition knobs back to the OFF position and make sure the burners are OFF. (Fig. 5) • When the stove is not in use, turn off the gas supply at the cylinder. • Avoid touching the top housing of the cooker as the surface can be very hot during opera- Fig.5 tion. • Only use in well ventilated areas. Always ensure that Ventilation fan the windows are not fully shut during the cooking session. Observe flame stability from time to time while in use.
-
Page 6: Setting Up Your Cooker
Consult your gas dealer if the leak persists after tightening the joints. (Fig. 7) • Place the gas cylinder at least 0.5m away from the stove in an upright position. (Fig. 8) • Only use LPG gas. • For safety reasons, the control Fig.8 /ignition knobs are designed to operate in anti-clockwise rotation. • In the event of a burn back (i.e. where the gas burns back on to the jet), turn off the stove and light again. Should the problem persist, take the unit back to your dealer to be checked. • Turn the stove off at the switch controls • Disconnect the regulator and wait for the stove to cool down (± 30 minutes) • If on relighting, the problem reoccurs, get the unit checked by an authorised service dealer • Always check that the regulator seal is in place and in good condition. Always ensure that the hose clamps are tightened and in place. Always ensure that the hose does not show any signs of wear. If in doubt please consult your dealer. SETTING UP YOUR COOKER 1. Confirm that you have the right model for your type of gas supply. - Page 7 4. Attach the 4 plastic feet to the cooker by turning the cooker upside down and screwing them on to the legs on the cooker bottom. (Fig.11) Fig.11 5. Push the hose over the hose nipple until it is fully engaged. Note: This appliance is Hose joint Tighten properly with the hose designed for use with end clamp. (Fig.12) a 2.8 kPa SANS 1237 6. Ensure that the burner control regulator with SANS valves are OFF by turning the Rubber joint 1156-2 or BS3212- knobs fully clockwise to the 2 approved hose. Fig.12 OFF position.
-
Page 8: Leak Test
• If bubbles appear, turn the cylinder valve OFF (clockwise) and disconnect the stove from the gas cylinder. • Tighten the connection and retry the leak test. • If you are unsure or if you cannot tighten the connection, place the cylinder outside in a cool, well-ventilated area and contact Alva on 086 100 ALVA (2582). Connections to be leak tested • A leak between the stove and Regulator into cylinder Hose to regulator cylinder can lead to a high Hose to appliance pressure fire, which is very dangerous and can result in Fig.14 extensive injury or even death. FITTING AND CHANGING THE GAS CYLINDER 1. Before connecting the appliance to a gas cylinder,... -
Page 9: Using The Cooker
4. Never store the cylinder on a stove surface. It is best practice to store it on the floor in a position where it cannot be tampered with. 5. If there is a leak on your appliance (smell of gas), take it outside immediately into a well-ventilated flame free location where the leak may be detected and stopped. 6. When removing a gas cylinder (e.g. to change cylinders), firstly close the cylinder valve and then the appliance valve, making sure the flame is extinguished, before unscrewing the regulator. Re-fit the regulator to a full cylinder following the same precautions as above. USING THE COOKER 1. To light the burners: DO NOT store or use Turn 1½ turns to ON for Ignition • Open the cylinder valve gasoline or other 1½ turns. (See Fig.15) flammable vapours • Open the main gas valve, and liquids in the Push push the gas control knob... -
Page 10: To Turn The Burners Off
3. To turn the burners off: Turn the gas control knobs Outer flame back to the OFF position until Core you hear a click. Make sure GOOD the burners are out and turn off Slightly rounded flame core the main gas cylinder valve as well. Not enough air Too much air Fig.18 CARE AND MAINTENANCE • Before caring for, or cleaning your cooker, make sure that the main gas valve is in an “OFF or closed” position, and the DO NOT use steel stove control knobs are in the “OFF” position. If the stove is based products or still hot, wait for it to cool down before cleaning. brushes - these •... -
Page 11: Trouble Shooting Guide
• The electronic ignition will not function if it is wet. Be careful not to spill water, soup, etc. on it. (Fig. 19) Fig.19 • For better service and a longer service life, keep the gas cooker clean and store it in a dry place. • Always disconnect the cooker when it will not be used for an extended period of time. TROUBLE SHOOTING GUIDE TROUBLE CAUSE REMEDY If you are still unable It does not ignite • Main gas valve • Open it to correct the problem is closed with the information • Rubber hose is • Put it right or in this guide , then bent... -
Page 12: Specifications
AFTER SALES SERVICE MANUFACTURED AND DISTRIBUTED BY Alva Marketing (Pty) Ltd Should you experience P.O. Box 30014 problems with this Tokai, 7966 gas cooker, carry out...
