SPECIFICATIONS

101.4
45
Max. 35
54
31.5
Max.170

OPERATING CONDITIONS

1. Water supply pressure : 0.05 ~ 0.75 MPa.
2. Ensure that water supply is clean (No Sand,
Dirt, Ect.)

MAINTENANCE

Always wipe chrome plated area with dry soft
cloth and sometimes wipe it with cloth soaked in
mild soap.

ATTENTION

Use of abrasive cleaning material such as:
detergents containing hydrochloric acids,
thinner, polishing powder and nylon brush is
not recommended.

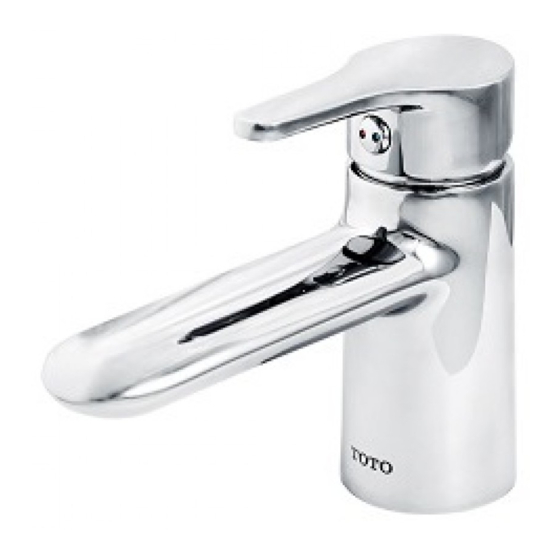

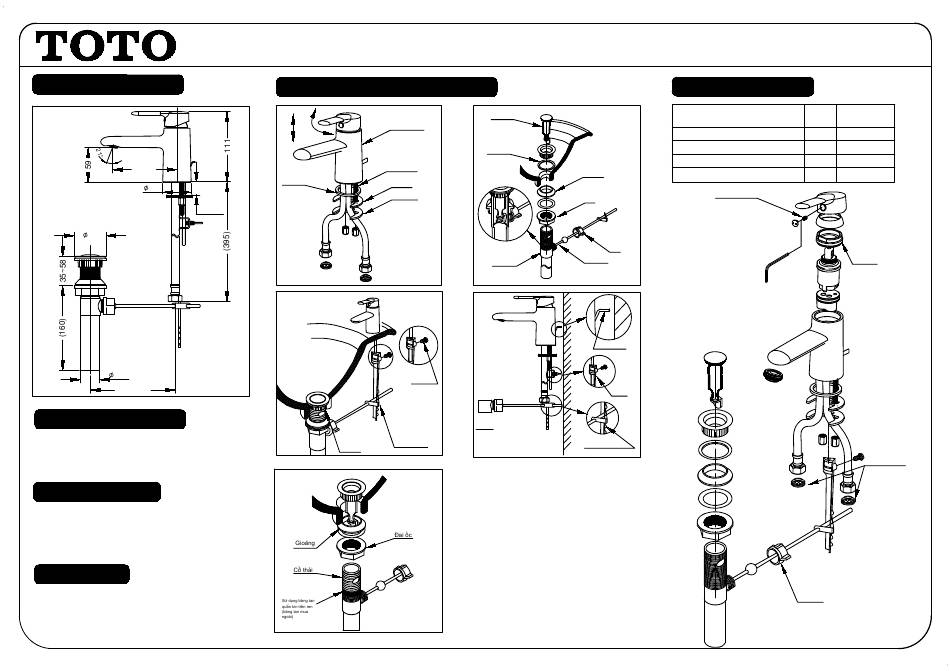

INSTALLATION AND INSTRUCTION FOR LAVATORY MIXER FAUCET TVLM102NSR

OPERATING INSTRUCTION

1.
Open
Hot
Faucet body
Cold
Close
Setting bolt
Packing
Packing
Washer
3.
Bolt
Pop-up joint
Siphon
5.
2.
Plug
Packing
Packing
Nut
Nut
Push rod
Kick box
4.
Pop up waste rod
Skid bar
Notice:
Choosing hole position of
fasten the push rod and skid
bar so that pop up waste rod
Hole to fasten the push rod
do not touch the wall.

TROUBLESHOOTING

CHECK
PROBLEM
SOLUTION
POINT
Water leaks around the handle
Tighten
1
Hand is loose
2
Tighten
Plug can not open and close
3
Tighten
4
Clog water
CLeaning
2. Bolt
3. Nut
1. Nut
4. Strainer
