LiCONiC STR240 Questions & Answers

Title:
Overdrive falls down on User Door Access
Date in:
2004-11-24

STR Overdrive Motor Disable Bridge

The overdrive should not fall down when the user door is opened. The overdrive falls down
when the user door is opened if this axis is electrically disabled together with the carrousel.
In this case there is accidentally a bridge installed that feeds the Carrousel Disable Signal to
the Overdrive Motor. The connector with the bridge is located on the electronics module on
the upper motor controller card. To remove the bridge consult the pictures below.

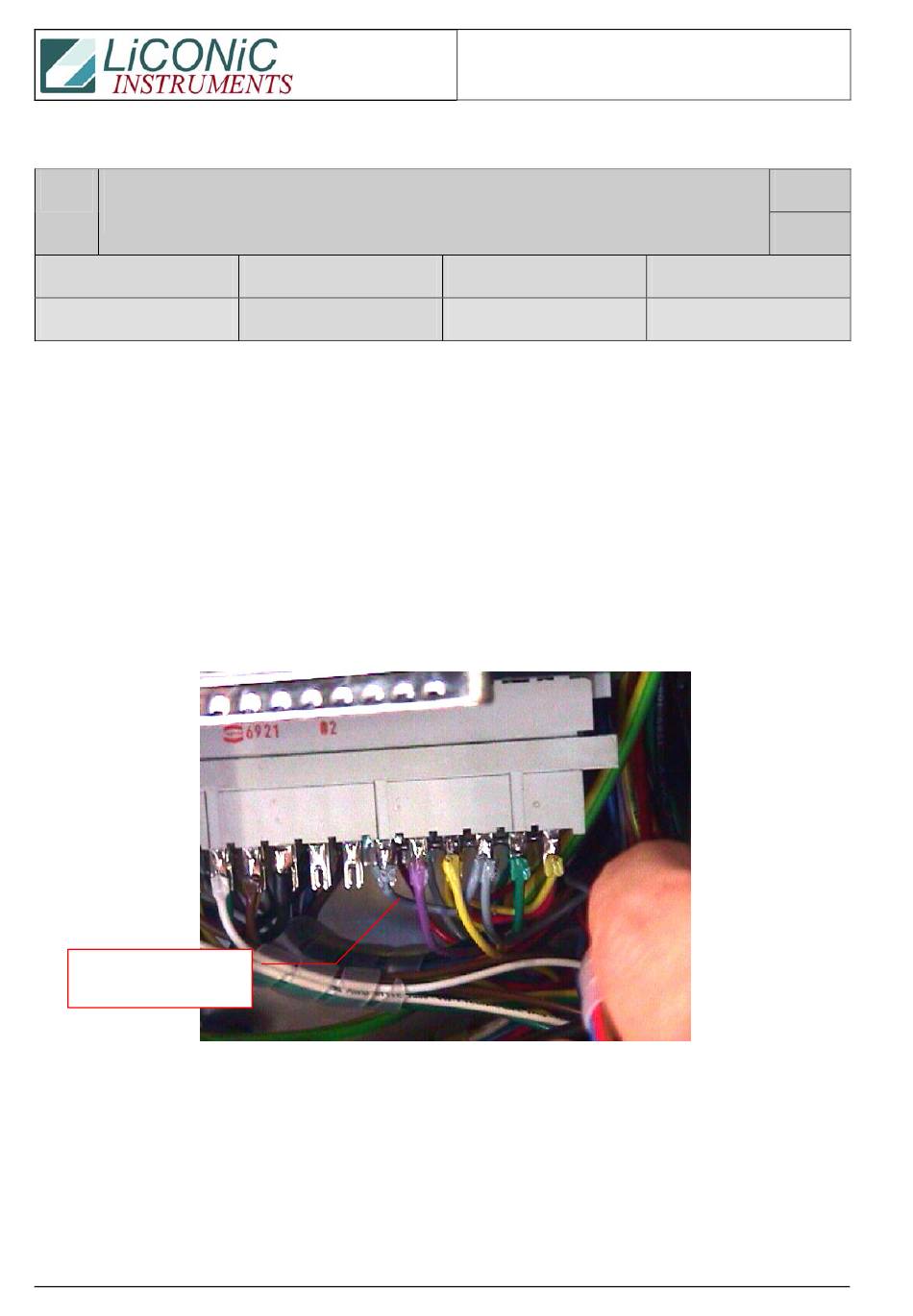

SMC Connector with Disable Bridge (grey cable) on upper SMC motor controller card
Overdrive Disable
Bridge
Remove bridge by cutting the grey wire. The picture below shows the connector with Disable
Bridge Removed.
164. Overdrive falls down on User Door Access.doc
Response:
2004-11-24
Questions & Answers
Model:
STR240
ID:
0164
Author:
CMa
Page 1 of 1
