INSTALLATION AND OPERATING INSTRUCTION MANUAL

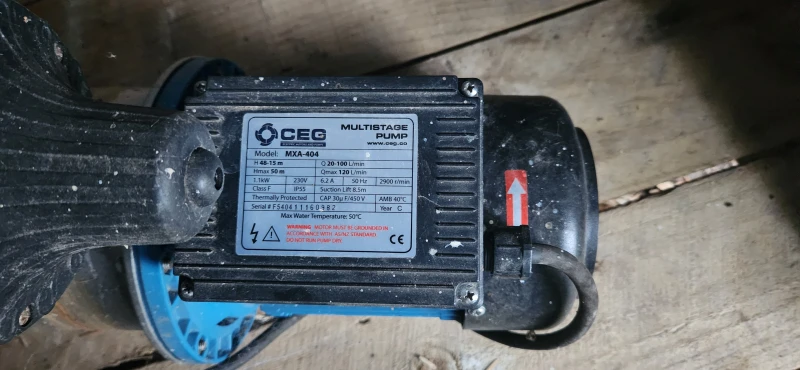

ECO-MXA
MULTI-STAGE WATER PUMP
Manufactured to meet Australian and New Zealand standards
ELECTRIC MOTORS AND PUMPS
Every care has been taken to ensure the accuracy of the information contained in this publication, but due to continuous development and improvement the right is reserved to supply products
which may differ slightly from those illustrated and described in this publication.
WITH ELECTRONIC PRESS CONTROL
2
YEAR WARRANTY
1
Advertisement
Table of Contents
Related Manuals for CEG ECO-MXA 404
Summary of Contents for CEG ECO-MXA 404
- Page 1 INSTALLATION AND OPERATING INSTRUCTION MANUAL ECO-MXA MULTI-STAGE WATER PUMP WITH ELECTRONIC PRESS CONTROL Manufactured to meet Australian and New Zealand standards YEAR WARRANTY ELECTRIC MOTORS AND PUMPS Every care has been taken to ensure the accuracy of the information contained in this publication, but due to continuous development and improvement the right is reserved to supply products which may differ slightly from those illustrated and described in this publication.
-
Page 2: Table Of Contents
TECHNICAL DATA UNIT STARTING AND WORKING STARTING FUNCTIONING INSTRUCTIONS FOR CORRECT UNIT INSTALLATION SPARE PARTS ECO-MXA 404 STAINLESS STEEL SELF-PRIMING JET PUMP ECO-MXA 405 STAINLESS STEEL SELF-PRIMING JET PUMP NOTES FAULTS, CAUSES AND SOLUTIONS CODE OF COMPLIANCE SERVICE REFERENCE INFORMATION... -
Page 3: General
Dear Customer, Congratulations on your purchase of the CEG ECO-MXA water pump. Like all CEG products, we have developed them with the help of the latest technology and they have been manufactured with the most advanced components. Please check the... -
Page 4: Product Description
SolidWorks 2016 SolidWorks 2016 File Name: ECO-MXA_Series_CAD_left_top.SLD File Name: ECO-MXA_Series_CAD_right_side.SLD File Description: CEG 3D CAD Water Hydraulic Design File Description: CEG 3D CAD Water Hydraulic Design TECHNICAL DATA Water temperature range min / max 5°C- 40°C Ambient temperature 0°C - 50°C... -
Page 5: Dimensional Drawing
The ECO-MXA cannot be used for sea water, flammable, corrosive, explosive or dangerous liquids!! ENVIRONMENTAL PROTECTION CEG is dedicated to a recovery and recycle service which simplifies the disposal process for end users at the completion of a products life, minimising the environmental impact. CEG is dedicated to minimising its environmental footprint wherever possible and is continuously searching for improved ways to operate. -
Page 6: Safety
SAFETY This instruction manual contains basic rules on safety which must be strictly adhered to. The installer and the operator must carefully read these instructions prior to installation and commissioning. Please observe all of the safety directions, not only under the main heading ‘Safety’ but each sub-heading also. Non-observance of safety reference may cause bodily harm to persons or damage to the pump. -
Page 7: Suction Guide
lt is the operator’s responsibility to take all preventative measures (e.g. provision of alarm systems, standby pump etc.) To avoid consequential damages such as flooding due to pump failure. In order to ensure proper operation a static discharge head of 300mm is required; the discharge pipe must be installed with a vertical rise of at least 300mm! Frost damage will not be covered under warranty! SUCTION GUIDE... -
Page 8: Installation For Flooded Suction
- Electrical plug connections must be made in flood-safe locations and be protected from moisture - Check available power supply - Verify that the voltage and frequency of the ECO-MXA pump shown on the nameplate corresponds to those available on the supply - Observe local earthing requirements (do not cut off earth pin or use an adapter fitting) - Pumps must only be operated with electrical cables or extension leads up to a maximum of 10 metres Do not use the pump if the power cord or plug are damaged. -
Page 9: Installation For Lift Suction
Recommended installation Not recommended installation Tee w/plug Valve Valve Valve Non-return valve Non-return valve Screen Flood suction from tank above ground Flood suction from tank above ground Drawing 3.2 Drawing 3.1 INSTALLATION FOR LIFT SUCTION - Check to ensure that a sufficient water level is available in the supply tank or bore - Ensure that the ECO-MXA is securely fastened to stop any vibration that may cause slow wear of the pump - Ensure that the pump is unplugged - Ensure suction pipe has non-return valve (provided) fitted to the discharge of the water supply,... -
Page 10: Maintenance
Recommended installation Recommended installation valve Valve Non-return valve Non-return valve Screen Screen Drawing 4.1 Suction lift from bore/well Suction lift from stream Drawing 4.2 Recommended installation Not recommended installation Valve Valve Tee w/plug Non-return valve Non-return valve Screen Screen Drawing 4.4 Suction lift from tank below ground Drawing 4.3 Flood suction from tank below ground... -
Page 11: Optional Extras
Up to 653kWh reduction per year 3L Pressure Tank ECO-MXA 404 ECO-MXA 404 with 3L *Based on a family of four pressure tank installed 3L PRESSURE TANK INSTALLATION Drawing 5.0 Drawing 5.1 3L tank mounted horizontally 3L tank mounted vertically WATER HAMMER Water hammer is a pressure surge or wave caused when a fluid in motion is forced to stop or change direction suddenly. -
Page 12: Eco-Pure Filter Housing
ECO-PURE FILTER HOUSING 25mm (1") 25mm (1") Brass Inserts Brass Inserts 10" FILTER HOUSING KIT 10" JUMBO FILTER HOUSING KIT 10" TWIN FILTER HOUSING KIT 20" JUMBO FILTER HOUSING KIT ALL FILTER HOUSING KITS INCLUDE: Appropriate lter, mounting brackets, screws and spanner *10”... -
Page 13: Eco-Pure Filtration Cartridges
ECO-PURE FILTRATION CARTRIDGES ECO-PURE POLY SPUN Provide high e ciency ltration for the removal of sediment in water supplies, removing sand, silt, dirt and rust particles. Ideal for: Mains drinking water Rainwater Dam water / Bore water Pretreatment for UV treatment systems Available in 1micron, 5micron, 20micron and 50micron ECO-PURE POLY PLEATED Ideal for removal of sand, silt, dirt and rust particles from drinking... -
Page 14: Electronic Presscontrol
ELECTRONIC PRESSCONTROL PC-1100 PRODUCT DESCRIPTION PRESSCONTROL is a device that guarantees optimal control of pumps for domestic use. Deriving from a hydraulic and electronic logics project for the Australian and New Zealand market, it is capable of simultaneously detecting both the pressure and the flow, as well as automatically managing the pump I N T E G R AT E D operation. -
Page 15: Starting
STARTING When the unit is connected to the electrical network, the green LED “Power On” lights up and the yellow LED “Pump On” indicates that the pump is in operation. The pump continues to operate for up to 5 seconds enabling the system to fill the pipes and to reach the required pressure. -
Page 16: Spare Parts
SPARE PARTS ECO-MXA 404 STAINLESS STEEL SELF-PRIMING JET PUMP Name Name Dust cap Serrated lock washer external teeth Φ4 Hexagonal screw M6x20 Washer Φ4 Pump casing Hexagonal nut M4 O-ring d11.2x2.4 Cross recessed pan head tapping screws ST3.5x12 Plug Capacitor 220V 30uF O-Ring d111.4x1.8... -
Page 17: Eco-Mxa 405 Stainless Steel Self-Priming Jet Pump
SPARE PARTS ECO-MXA 405 STAINLESS STEEL SELF-PRIMING JET PUMP Name Name Dust cap Connection pole Hexagonal screw M6x20 Serrated lock washer external teeth Φ4 Pump casing Washer Φ4 O-ring d11.2x2.4 Hexagonal nut M4 Plug Cross recessed pan head tapping screws ST3.5x12 O-Ring d111.4x1.8 Capacitor 40uF O-Ring d152x4... -
Page 18: Notes
NOTES Every care has been taken to ensure the accuracy of the information contained in this publication, but due to continuous development and improvement the right is reserved to supply products which may differ slightly from those illustrated and described in this publication. -
Page 19: Faults, Causes And Solutions
FAULTS, CAUSES AND SOLUTIONS Faults Causes Solutions Pump does not Interruption of the power supply, Check power supply short circuit or an insulation fault in Call an expert to check the pump unit the motor coil Pump runs, Pump or pipes are blocked due to Check all filters/check valve for foreign matters but little or no foreign matters... -
Page 20: Code Of Compliance
This product has been tested to relevant standard and found compliant with specifi cation: CEG AS/NZ Issue F0054 version A We CEG New Zealand Ltd and CEG Group PTY Ltd declare under our sole responsibility that the product is in conformity with the listed standard or other normative documents.
