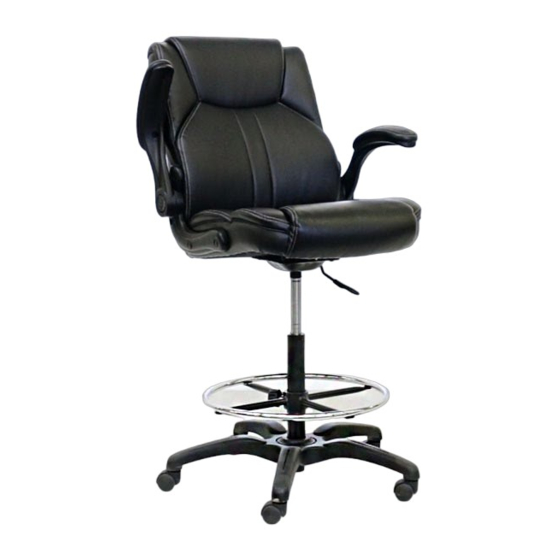

Officient OMEGA 24/7 STOOL Assembly Instructions

PARTS
PART DESCRIPTION
1
Casters
2 5-Star Base
3 Cylinder
4 Foot Rest
5 Knob
6 Seat Plate
7A Left Arm
7B Right Arm
8 Seat Cushion
9
Back Cushion
10 1½" EZ Knobs
11 1" EZ Knobs
12 1¼" Small Screws
13 Plastic Caps
14 Hexagonal Wrench
ATTENTION:
Make certain to fully tighten all screws
before using chair.
WE SUGGEST TAPING THE WRENCH UNDER
THE SEAT FOR FUTURE USE.

INSTRUCTIONS

QTY
5
1
1
1
1
1
1
1
1
1
2
2
8
8
1
INSTRUCTIONS
A. Remove all parts from the carton and separate them into part number groups as indicated in the parts list.
B. T o begin assembly, place the 5-star base (2) upside down and insert casters (1) into the bottom of base (2).
C. Turn the base (2)
D. Turn the knob (5) counterclockwise to loose the foot rest (4), then insert the foot rest (4) to the cylinder (3).
Tighten the knob.
E. Select a smooth surface in order not to scratch the parts. Align the arm holes with the holes on the
cushions (8 & 9) by using 1¼" small screws (12) through the arm holes to the cushions (8 & 9). This will
secure the arm to the cushions as shown in diagram 1. Do not tighten the screws completely!
F. Turn the chair over to the other side and assemble the second arm as shown in diagram 2. Now tighten
all the screws on arms.
G. Attach the seat plate (6) to the bottom of the seat cushion (8) (with front of seat plate facing the front of the
seat cushion) by using 1½" EZ knobs (10) into the front holes of the seat plate (6) and 1" EZ knobs (11)
into the rear holes of the seat plate (6) as shown in diagram 3. Tighten the knobs.
H. Place the assembled chair on top of the cylinder (3) and press down until fully engaged.
I.
Place the plastic caps (13) into the two arm holes on each arm.
J.
Periodically (every 90 days) make sure that the screws are still fully tightened.
WWW.OFFICIENTFURNITURE.COM
O M E G A 2 4 / 7 S T O O L
A S S E M B LY I N S T R U C T I O N S
.
(3) into the center hole on the base (2).
