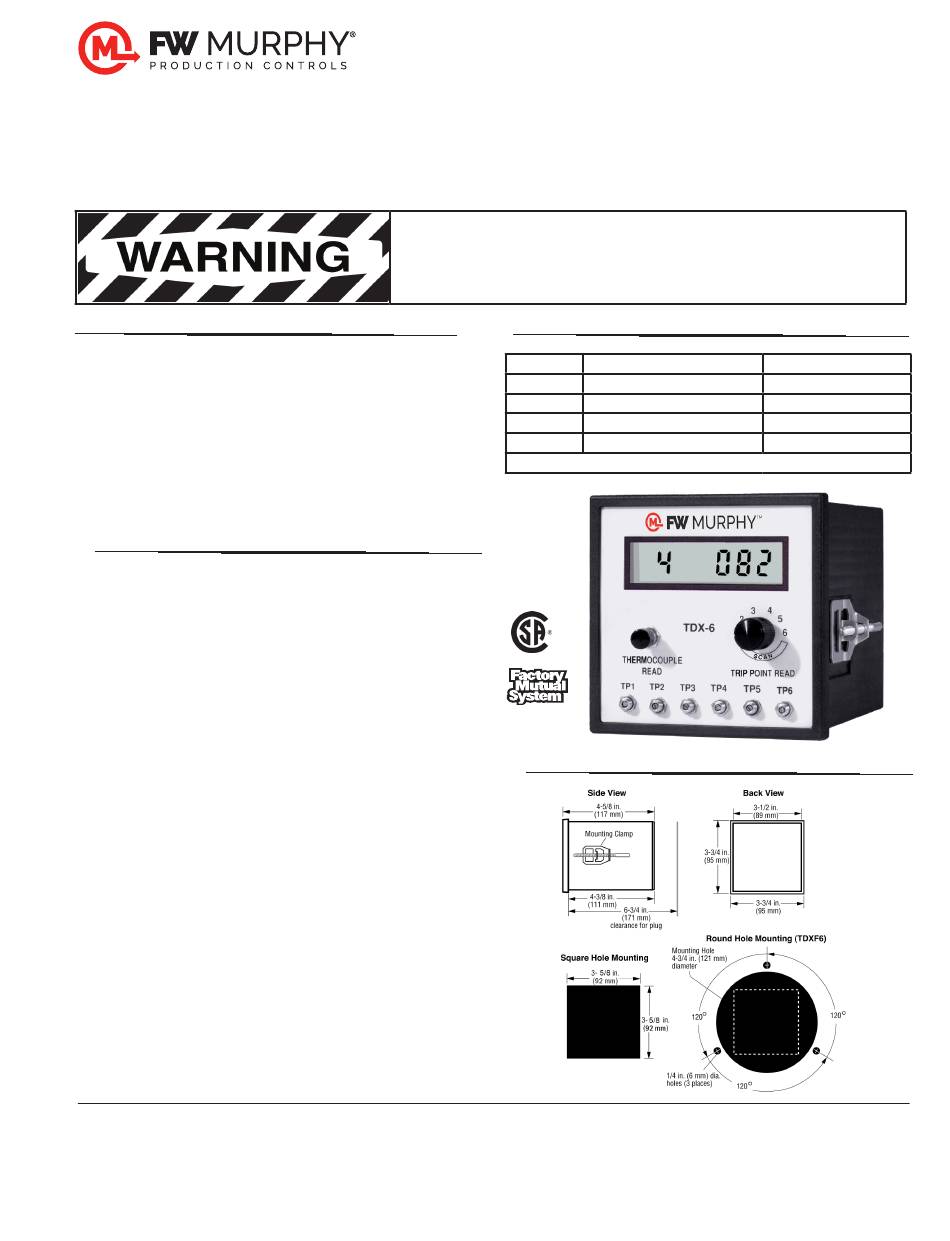

FW Murphy TDX6 Installation And Operation Instructions

TDX6 Temperature Scanner/Pyrometer
Installation and Operation Instructions
Please read the following instructions and warnings before installation. Visually inspect the product for any damage that may have occurred
during shipping. It is your responsibility to have a qualified person install this unit and make sure it conforms to NEC and local codes.

Description

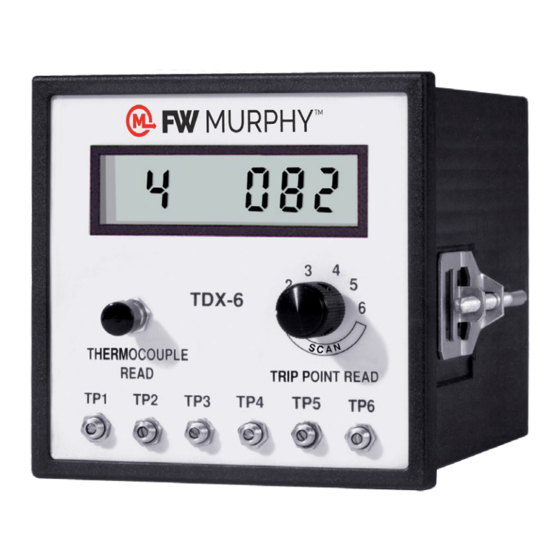

The TDX6 is an advanced design 6-point temperature
scanner and pyrometer. It continually scans six
grounded or ungrounded thermocouples, displays
tt
the temperature of the thermocouple selected and has
adjustable trip points for each input. A trip point read/
scan knob provides for display and check/adjustment of
the thermocouple temperature trip point. If any trip point
is reached, its output turns ON and can be used as a
control signal or to initiate alarms and/or shutdown.

Specifications

Power Requirements (Operating Voltages): 120 VAC or 80-250 VDC,
CD ignition or 24 VDC
Outputs:
Models TDX6-B and TDX6-D:
Six (6) isolated Field-Effect Transistor (F.E.T.) outputs; 0.1 A@ 250 VDC;
switches on (applies ground) above trip point and switches off (removes
ground) below trip point
Operating Temperature: -4 to 158° F (-20 to 70° C)
Storage Temperature: -40 to 300° F (-40 to l50° C)
Case: ABS 1/4 DIN (90 x 90 mm)
Scanning Speed: Complete scan in 30 seconds
Reset Differential:
F.E.T. Models: Decreases 3° F or (C)
Display Update Time: Updates temperature every 0.3 seconds
Start-up Time Delay: Unit is locked out for 10 seconds after ignition
voltage is sensed
Ambient Cold Junction Compensation Range:
2° F from 32° F to 122° F (1° C from 0° C to 50° C )
Measurement Range: Monitor Range 0-1999° F or (C)
Accuracy:
With J-type thermocouple: from 50-150° F (J0-66° C) +3° F ( +2° C),
from 150-1200° F (66-649° C) ±1.0% of reading
With K-type thermocouple: from 400-2000° F (204-1076° C) ±1.0% of
reading
Trip Point Accuracy: ±3° F (±2° C) of reading
Trip Point Adjustment Range: 0-1999 Degrees
Open Thermocouple Input: A number 1 appears in the display to the
right of the channel number and the trip point operates
* An isolation barrier is needed between the TDX6 and an Annunciator rated for Class I, Division I, Group D, Hazardous Areas.
When used with approved ignition. Contact FW Murphy Production Controls for details.
**
t When power requirements are used as stated in Specifications section.
tt Using grounded thermocouples introduces the risk of odd currents or voltages being imposed on the thermocouple signal which can affect the accuracy of the reading. This is
an inherent problem of grounded thermocouples, and the reason why we prefer unground ed thermocouples.
In order to consistently bring you the highest quality, full-featured products, we reserve the right to change our specifications and designs at any time.
FW MURPHY product names and the FW MURPHY logo are proprietary trademarks. This document, including textual matter and illustrations, is copyright
protected with all rights reserved. (c) 2019 FW MURPHY. A copy of our typical warranty may be viewed or printed by going to www.fwmurphy.com/warranty.

Before beginning installation of this product:

• Disconnect all electrical power to the machine
• Make sure the machine cannot operate during installation
• Follow all safety warnings of the machine manufacturer
• Read and follow all installation instructions

TDX6 Interface Capabilities

Model
LCDT
S5101
TTD ™
TATTLETALE ®
PLC's and various annunciators not listed, contact factory
t
Dimension
sect. 10
rev. 2019/12/06
Power Source Rating
CD Ign., 120 VAC, 12/24 VDC C C1.I, Div.1, Gr. D, Haz. areas*
120 VAC, 12/24 VDC C1.I, Div.1, Gr. D, Haz. areas*
CD Ign., negative ground, 12/24 VDC C1.1, Div.2, Gr. D, Haz. areas**
CD Ign., 120 VAC, 12/24 VDC Non-Hazardous areas
00-02-0169
