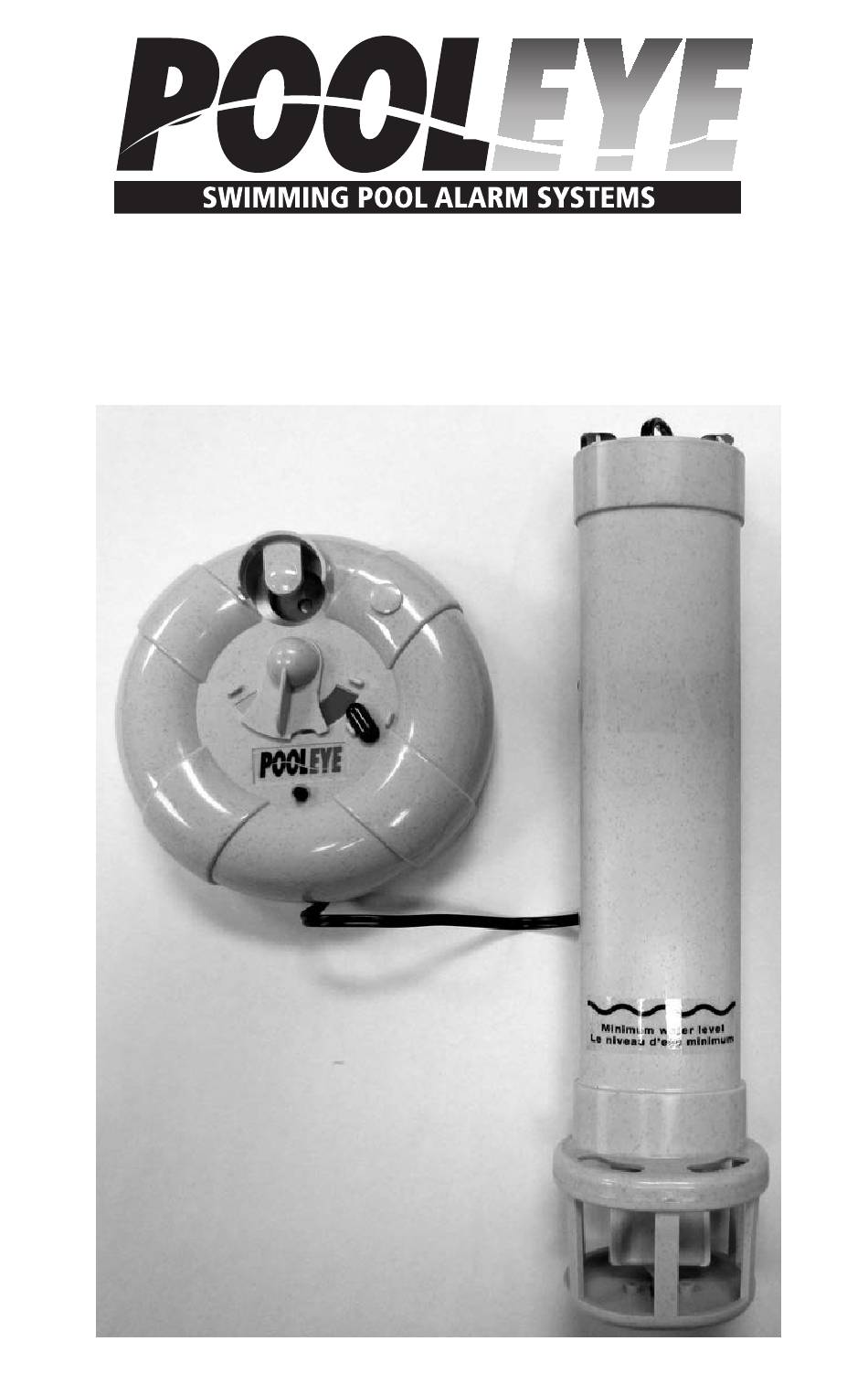

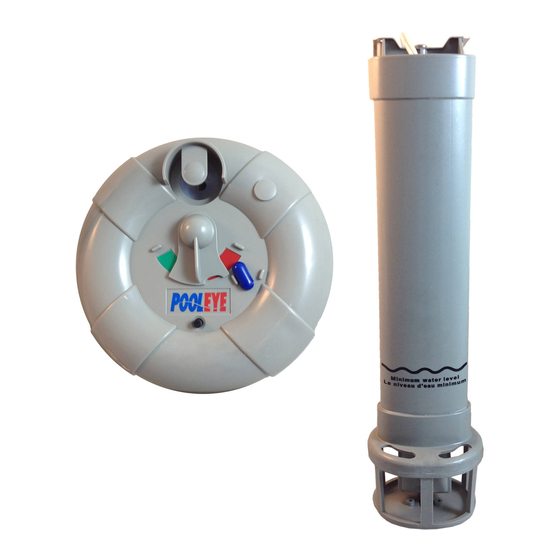

- Page 1 ® MODEL NO. PE12 OWNER’S MANUAL PE12MAN-REV 01.052419...
-
Page 2: Table Of Contents
IMPORTANT: READ THOROUGHLY PRIOR TO INSTALLING AND OPERATING THE POOLEYE ALARM. TABLE OF CONTENTS Important Safety Information ..................2 List of Components ......................3 Installation........................4 Winterization........................7 Troubleshooting.......................7 Warranty.........................8 IMPORTANT SAFETY INFORMATION WARNING: Read all instructions prior to installing or operating this device. -
Page 3: List Of Components
LIST OF COMPONENTS A. Siren D. Siren Mounting Screws B. Sensor Tube E. Mounting Bracket Spacer C. Siren Mounting Template F. Deflector Shield PE12MAN-REV 01.052419... -
Page 4: Installation
INSTALLATION REQUIRED TOOLS • Phillips head screwdriver • 3/32 drill bit (optional) • Battery powered drill (optional) • Double-sided tape (optional) POSITIONING OF THE ALARM Key factors for proper alarm positioning: 1) Direction of the return line water flow. 2) Distance of the alarm from all points of the pool. •... - Page 5 ALARM ALARM Oval Shaped Pools WARNING: Every pool is different. The alarm must be tested immediately upon installation to ensure the positioning of the alarm fits its specific environment. Improper positioning of the alarm or return fitting may result in false alarms. MOUNTING THE ALARM 1) Locate the section of the pool where the alarm Figure 2...
- Page 6 OPERATING THE ALARM 1) Install 4 AA batteries into the siren of the alarm as in Figure 8. 2) Turn the grey switch to the right until it clicks into position. The green label will appear and the siren will beep once as in Figure 9. Figure 9 3) Press the black button on the front of the siren to Figure 8...
-
Page 7: Winterization
ADJUSTING THE ALARM SENSITIVITY ADJUSTMENT SWITCH NOTE: Alarm is factory-set to the highest sensitivity level. 1) Loosen the screws on the bottom of the sensor tube as in Figure 13. Figure 13 2) Slide the adjustment switch from the high sensitivity position (H) to the low sensitivity position (L) as in Figure 14. -
Page 8: Warranty
SIX MONTH LIMITED WARRANTY Six month limited warranty from date of original purchase for manufacturing defects under normal and reasonable use, and subject to the maintenance requirements and installation guidelines set forth in the product instruction manual. Warranty valid only within the continental US. THIS WARRANTY IS SUBJECT TO THE TERMS, LIMITATIONS AND EXCLUSIONS DESCRIBED BELOW, AND THERE ARE NO OTHER WARRANTIES OR REPRESENTATIONS, EITHER EXPRESS OR IMPLIED, WHETHER OF MERCHANTABILITY, FITNESS FOR A PARTICULAR...
