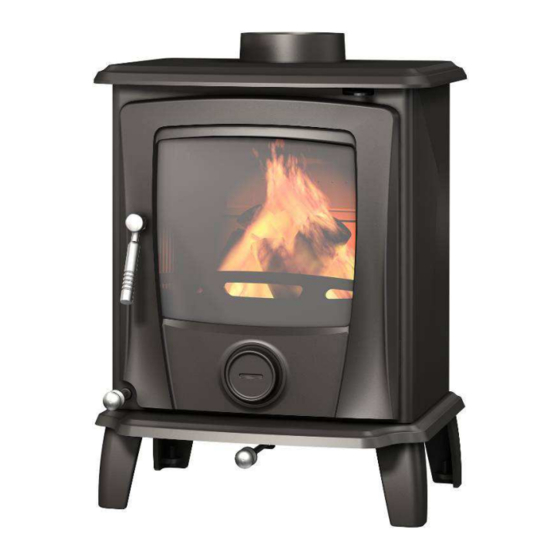

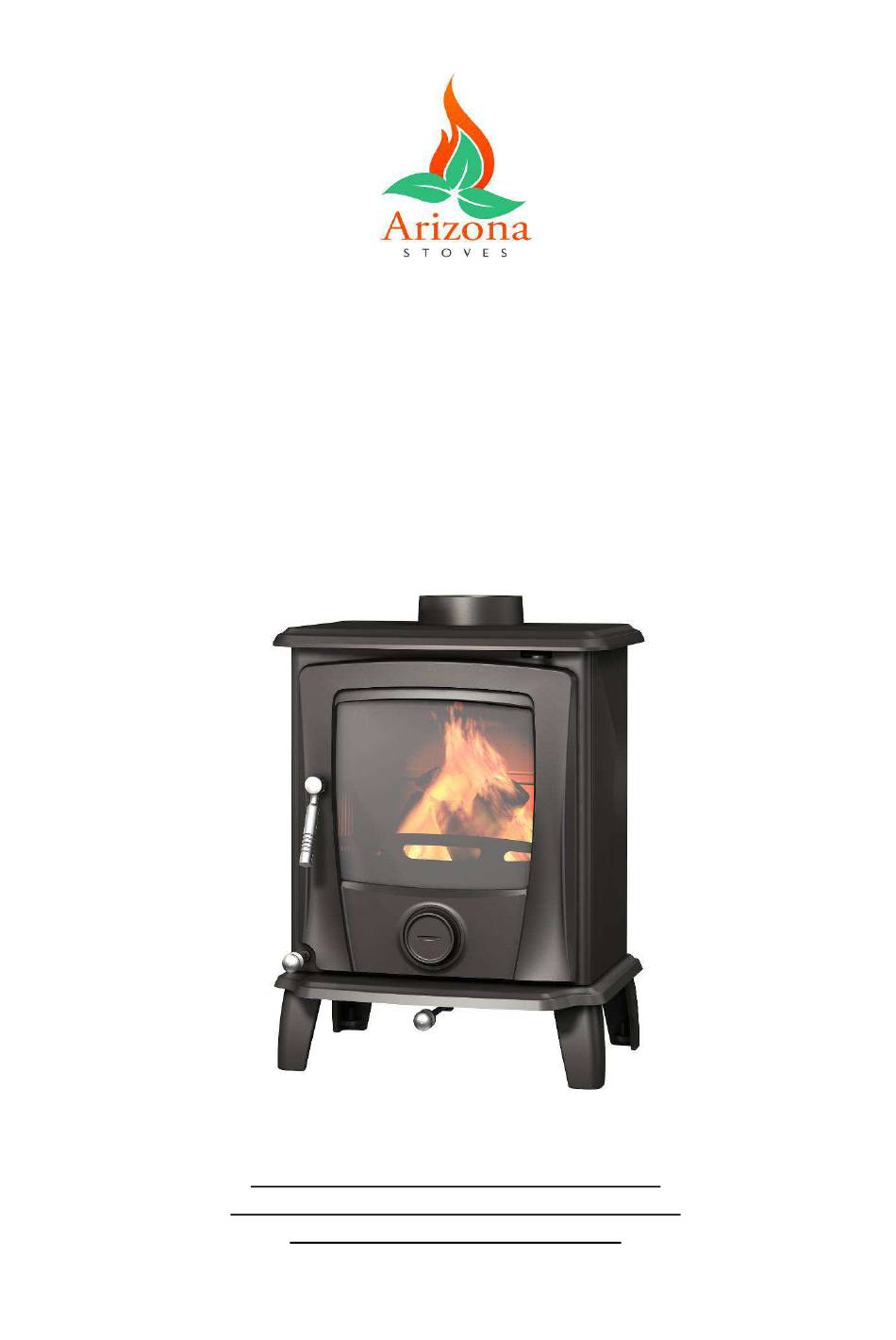

- Page 1 Introductions for installation and use Seattle Multi-fuel stove Imported and Distributed by Micon Distribution Ltd. 1a Hallstown Road, Ballinderry Upper, Lisburn BT28 2NE Arizona brand exclusively owned by Micon...
-
Page 2: Table Of Contents
Contents Pre-installation checks Installation introduction with technical data 1.0 Technical data 2.0 Installation introduction 2.1 Unpacking the stove 2.2 Installing the stove 2.2.1 Assembling the control of the secondary air 2.3 Stove placement/clearance requirements 2.4 The chimney 2.5 Pipe connections 2.6 Connecting to a masonry chimney 2.7 Connecting to a steel chimney 2.8 Draft conditions... -
Page 3: Pre-Installation Checks
Pre-installation checks Installation of a fireplace must be according to local codes and regulations in each country.All local regulations, including those which refer to national and European standards, must be observed when installing the product. Both an installation manual with technical data and a manual on general use and maintenance are enclosed with the product. -
Page 4: Unpacking The Stove
DIN Plus particulates Nmg/m Technical data according to EN 13240:2004 Recommended chimney draught: 12 Pa Operational mode: Intermittent or Continuous with smokeless fuels. Intermittent combustion in this context means normal use of the fireplace, i.e. fuel is added as soon as the fuel has burnt down. Continuous with smokeless fuels means the appliance remain alight overnight and can be easy recovered in the morning. -
Page 5: Stove Placement/Clearance Requirements
2.3 Stove placement/clearance requirements Hearth and Wooden floor protection The product must be installed on a level surface with adequate load-bearing capacity. If an existing construction does not meet this requirement then suitable measures, e.g. load distribution plate, have to be taken to achieve it. -
Page 7: The Chimney
Distance to walls covered by a firewall Firewall requirement The firewall must be at least 100 mm thick and be made of brick,concrete-stone or light concrete. Other materials and structureswith satisfactory documentation may also be used. Ceiling protection There must be a minimum distance of 1200 mmto a combustibleceiling above the fireplace. Clearances to furniture and soft furnishings We recommend that the stove be installed 800 mm from furniture. -
Page 8: Connecting To A Masonry Chimney
Flue pipes are placed directly onto the product flue outlet. There is a screw on threefold sides of the product flue outlet. These are used to fasten the flue pipe.Fasten the flue pipe with screws. Note! It is important that the joints are completely sealed. Airleakage etc. may lead to malfunction. -
Page 9: Draft Conditions
Cleaning procedure: Discuss this with chimney sweep or qualified installer prior to or during the stove installation Chimney draft: If the chimney draft is naturally poor it is better to install the flue from the top of the stove so as to minimise any internal resistance of the flue gases. Avoid having any more than 2 bends in the flue system and limit the length of the offset between bends. -
Page 10: User Manual
There is no air movement (wind) outside. The chimney is not tall enough, with the result that the terminal sits in the lee of the roof surface or in the vicinity of tall trees or neighbouring buildings. These conditions are also associated with downdraft where the flue gases are pushed back down the chimney. -
Page 11: Use
Prohibited fuels: plastic bags, liquid fuels, waste materials and any form of bituminouscoal or petroleum based coke. This may harm the product and pollute the atmosphere.The appliance should never be used as an incinerator. 3.2 Use Odours when using the fireplace for the first time Painted products: the fireplace may emit an irritating gas when used for the first time, and it may smell a little. -
Page 12: Use With Solid Fuel
• Open the glass door and add logs.( To load fuel, the door should be opened slowly, avoiding a sudden rush of intake air, so that smoke does not escape into the room.) • Leave the lower control open for a few minutes to allow the initial volatiles in the wood to burn. •... - Page 13 When tested as a continuous burning appliance the technical specification is as follows:- Parameter Ancit Total Efficiency 72.8 Nominal heat output Mean CO emission (at 13 % O 0.43 Mean flue gas temperature ºC Flue gas mass flow Very Important: The stove door should never be opened when the stove is being fired vigorously.
-
Page 14: Ash Removal
always remember to make sure that there are lasting flames until the wood becomes charcoal. If you want a weaker fire, stoke up using less wood. If you fire the stove using wet wood, a lot of the fuel’s thermal energy will be spent forcing the water out of the wood, without releasing any heat to the stove. -
Page 15: External Surface Cleaning
This product is equipped with an air wash for the glass. Air is sucked in through the air vent above the fireplace and down along the inside of the glass. However, some soot will always stick to the glass, but the quantity will depend on the local draught conditions and adjustment of the air wash vent. - Page 16 Seek advice from a chimney specialist. − Ensure that the lower Too much draught. spin wheel is closed Partially close the top air control lever. − Install a draught Excessive draw. Fire burns too stabiliser. Consult your Dealer. quickly. − Do not continuously Poor quality wood.
