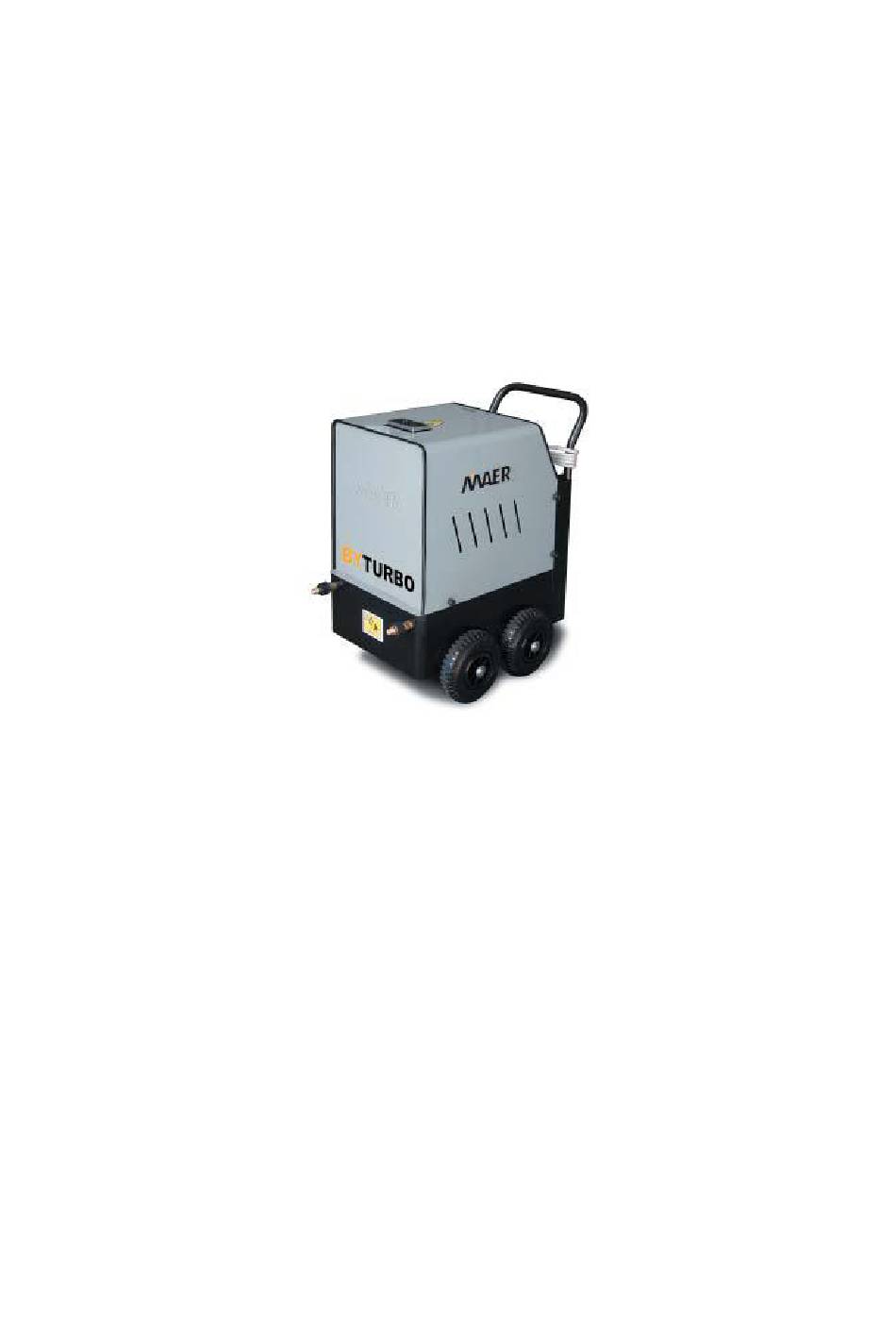

- Page 1 BYTURBO Instructions Manual Instructions for installation and use Manufactured by: MAER IDROPULITRICI SRL Via Torre 65/2 24050 Torre Pallavicina BG Tel 0039 0363 996579 Fax 0039 0363 996688 maer@maeridropulitrici.com www.maeridropulitrici.com ITALY...
-
Page 2: Table Of Contents
Contents 1. Field of employment 2. Characteristics of the personnel employed to use the machine 3. Accidents prevention 4. Characteristics of the machine 5. Instruments of the machine 6. Transport and unpacking 7. Installation 8. Connection to the electricity supply 9. -
Page 3: Field Of Employment
INSTRUCTIONS MANUAL INSTRUCTIONS FOR INSTALLATION AND USE Congratulations! By purchasing a MAER device, you have purchased a high technology machine that will allow you to realize, for a long time, working operations with care, versatility and safety. The customer and buyer must verify that the operators have read and know the content of the manual and that, therefore, attentively and meticulously follow all the indications. -
Page 4: Accidents Prevention
3. Accidents prevention 3.1. The instructions furnished in this manual don’t replace in any way the norms related to the safety, to the installation and the use, to the technical data or the norms in force in the nation of installation or use or the norms dictated of the common sense. -
Page 5: Instruments Of The Machine
5. Instruments of the machine IN: Water inlet OUT: Water outlet K1: Thermostat Q1: ON/OFF Switch... -
Page 6: Transport And Unpacking
6. Transport and unpacking 6.1. Submit lifting and transport to specialized personnel. Protect the machine, especially during transports on road, from bumps, damps or from vibrations, etc…The machine is climbed on wheels, it must firmly be anchored before the beginning of the transport. 6.2. -
Page 7: Switching On
OPERATION 10. Switching on 10.1 Turn ON the switch Q1. 10.2 Regulate the temperature with the thermostat K1. 11. Switching off 11.1 Turn OFF the thermostat K1. 11.2 Turn OFF the switch Q1. 12. Maintenance 12.1. It is absolutely forbidden to effect controls or operations of maintenance with the machine operating or under tension: always remove the electricity supply!!! Don’t even effect reparations of fortune or precarious, and never use not-original spare parts. -
Page 8: Fuel Filter
II of the legislative decree 22/97. 16.3. ATTENTION: MAER IDROPULITRICI society does not assume any responsibility for damages to things, personal or animals, consequential and consequent to the re-use of the single parts or the single components of the machine for function or situation of the assemblage different from the original for which the machine has been conceived. -
Page 9: Additional Instructions
19. Additional instructions 19.1 Instructions of emergency conditions : 1 Switch off the machine 2 Disconnect the electricity supply 3 Call the public assistance 20.Boiler exploded view... - Page 11 The machine you purchased is a technologically advanced product which uses a high pressure pump. The machine must be used by people with a specific education and competences on high pressure cleaners. To obtain more safety, read this booklet carefully and follow the instructions each time you use the machine.
- Page 12 1.2 SAFETY “MUSTS” 1.2.1. All electrical conductors MUST BE PROTECTED against the water jet. SHORT CIRCUIT HAZARD. 1.2.2. The machine MUST ONLY BE CONNECTED to an adequate power supply in compliance with all applicable regulations (IEC 60364-1). The machine may cause network noise during startup. Use of a safety residual current circuit-breaker (R.C.C.B.) will provide additional protection for the operator (30 mA).
-
Page 13: Declaration Of Conformity
- EN 292-1 / EN 292-2 / EN 60204-1 / EN 60335-2-79 / EN 60335-10 as described in the technical dossier, in the instructions manual for the use and the maintenance. The technical dossier is filed at MAER IDROPULITRICI SRL company. Torre Pallavicina,...
