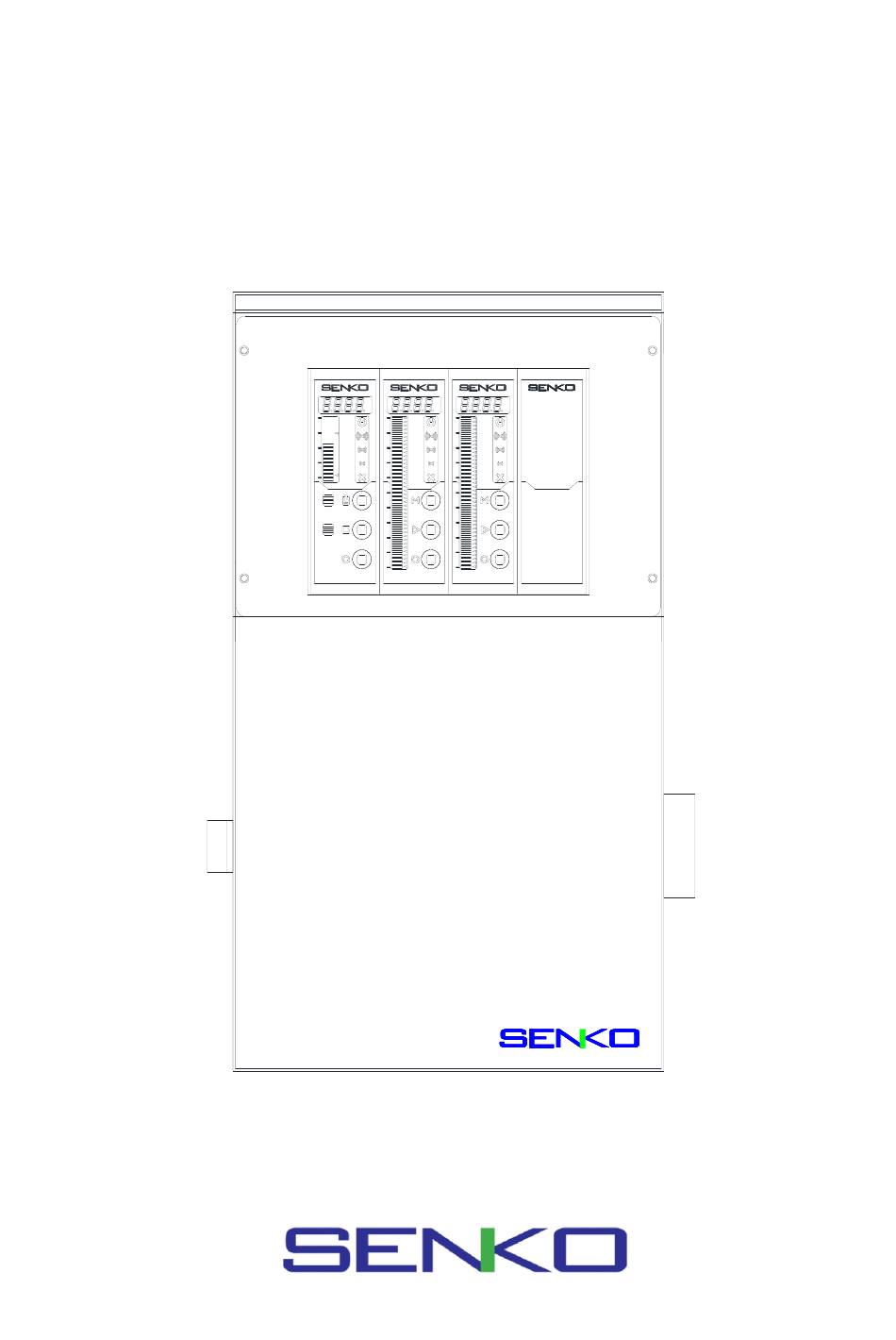

MULTI GAS MONITOR (SI-100IM)
USER MANUAL
%
%
PPM
PPM
LEL
LEL
V
V
전원
전원
3차경보
3차경보
2차경보
2차경보
1 차경보
1 차경보
고장
고장
예비전원
예비전원시험
설정
스위치주의
부저정지
회로시험
복귀
복귀
SI-1 0 0 IM
SI-1 0 0 IA
SI-100IM – MAIN UNIT
SI-100IA – ALARM DISPLAY UNIT
%
PPM
LEL
V
Mu lti G a s Mon itor
전원
SPA RE BLANK
3차경보
2차경보
1 차경보
고장
설정
SI-1 0 0 IM
SI-1 0 0 IA
SI-1 0 0 IC U
SI-1 0 0 PS
회로시험
SI-1 0 0 ASV
복귀
SI-1 0 0 IA
www.sen ko.c o.kr

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SI-100IM and is the answer not in the manual?

Questions and answers

Related Manuals for SENKO SI-100IM

Summary of Contents for SENKO SI-100IM

  • Page 1 MULTI GAS MONITOR (SI-100IM) USER MANUAL Mu lti G a s Mon itor 전원 전원 전원 SPA RE BLANK 3차경보 3차경보 3차경보 2차경보 2차경보 2차경보 1 차경보 1 차경보 1 차경보 고장 고장 고장 예비전원 예비전원시험 설정 설정 SI-1 0 0 IM...

  • Page 2: Table Of Contents

    Contents 1. Overview ………………………………………………………………….……3 2. Features ……………………………………………..…………………………3 3. Specifications………………………………………………………………….4 SI-100IM (Main Alarm Unit) Configuration and Description SI-100IA (Alarm Display Unit) Configuration and Description 4. Product’s Dimension…………………………………………………..……6 5. Internal Configuration (3-channel basis) …………………………7 6. Terminal Configuration ……………………………………….…….……8 7. Product Instruction for Use …………………………………………….9...
  • Page 3 Should our product have defect or other quality problems, all the costs incurred except the shipping cost will be borne by SENKO during the warranty period. After the warranty period, all the costs of repair, replacement, transportation of products or parts, in principle, will be borne by customers.

  • Page 4: Overview

    (The three Alarm outputs can be controlled by on / off control, and a common output of the SI-100IM can be automatically displayed by recognizing an on / off status of the unit by channel that has been set).

  • Page 5: Specifications

    3. Specifications SI-100IM (Main Alarm Unit) Main CPU MKE02Z64 (32bit High Speed CPU) Input Power DC24V Output Power DC24V Input Power Display 4Digit FND Digital Display Main Power Display Green LED Display, 18 Bar Graph Spare Power Display 4Digit FND Digital Display, 18 Bar Graph...
  • Page 6 SI-100IA (Alarm Display Unit) Main CPU MKE02Z64 (32bit High Speed CPU) Input Type 4-20mA Full Scale Measurement Display 0.000 to 9999 Digital User Setting The bigger of FND Digital ±1% Full Scale or 1Digit Measurement Error The bigger of LED Bar ±1% Full Scale or 1Digit Input Measurement Cycle 10ms Three-stage alarms (a user’s arbitrary setting), displaying a...

  • Page 7: Product's Dimension

    4. Product’s Dimension SI-100IM, SI-100IA UNIT DIMENSION 전원 전원 3차경보 3차경보 2차경보 2차경보 1 차경보 1 차경보 고장 고장 설정 예비전원 예비전원시험 회로시험 스위치주의 부저정지 복귀 복귀 SI-1 0 0 IA SI-1 0 0 IM SI-100IM (3CHANNEL) PANEL DIMENSION Mu lti G a s Mon itor 전원...

  • Page 8: Internal Configuration (3-Channel Basis)

    ALARM-1 ALARM-1 ALARM-1 LINE LOAD SI-100IM 1. Power Supply and Alarm Generation (Battery charging and Discharge) 2. SI-100IA: No. 01 Alarm DISPLAY Unit 3. SI-100IA: No. 02 Alarm DISPLAY Unit 4. SI-100IA: No. 03 times Alarm DISPLAY Unit 5. Terminal 6.

  • Page 9: Terminal Configuration

    If a fuse disconnected, the red LED will turn on, and that is the sign to replace with new fuses. When using main unit (SI-100IM), turn on A/C switch. (If you turn off, the back-up power lamp will turn off.) MAIN UNIT (SI-100IM) 7.

  • Page 10: Product Instruction For Use

    7. SI-100IM (Main Alarm Unit) When the power switch is ON, an AC / DC voltage according to an input voltage and a bar graph according to a voltage level will be displayed. An arrow on the side of the bar graph indicates a voltage range of the products at its operational status.
  • Page 11 If a number of the units generate alarms at the same time, a total return will be made when the return function of the SI-100IM is used Using the Setting Switch, you can check the current alarm value and a variety of kinds of information.

  • Page 12: Description Of Features By Switch

    (or the start). In the case of SI-100IA, the switch is to return its own Unit to a normal status, while the return switch of the SI-100IM is a switch to return all circumstances in multiple Alarm Units into a normal status (or the start).

  • Page 13: 100Ia (Alarm Display Unit)

    SI-100IA (Alarm Display Unit) Setting Switch If you press the Setting Switch, the display will change in the order of left figure each time you press the switch. First alarm, secondary alarm, and tertiary alarm, calibration gas concentration, the number of the times of calibration, calibration sensor efficiencies, and Unit ID are displayed.

  • Page 14: Changes In The Internal Settings

    9. Changes in the Internal Settings * Setting changes are available only for SI-100IA (Alarm Display Unit.) Gas Alarm Concentration Calibration If you hold the setting switch for 5 seconds, then Zero calibration press a switch labeled as oFSt again, a current concentration will be displayed. (If a current concentration value is less than 0, it will be displayed as -) If the current concentration is not zero, press the setting button for more than 1 second.
  • Page 15 Change of an Internal Setting Value Press the setting and the reset switch at the same time for one second, and the device will enter into the mode. (At the setting change entry mode, the power lamp will be blinking). Primary Alarm Value Change (default 15% LEL) Press the setting switch while AL-1 is shown, a default number will be displayed.
  • Page 16 Changing decimal (Default 0.1) 牴 Press the setting switch when DPNT is displayed, one of the figures, 0, 0.1, 0.02, and 0.03, is displayed. While the number is displayed, press the UP, DOWN Switch, and you can change a decimal point. *Only at a setting value change mode among all the setting modes will the UP and DOWN key operate.
  • Page 17 *. 3_1 (only the tertiary and the primary alarm are output.) Likewise, it is possible to generate 12V selectively at the time of an alarm output. *. In the case of Main Alarm Unit (SI-100IM), 12V will be output depending on such a setting 4-20mA output (default OFF) 17Press the Setting Switch when “TSTO”...
  • Page 18 Output Calibration of Low Concentration Sensor Output Calibration of High Concentration Sensor The above four items are requirements during manufacture SENKO. If you make change or modifications, they can affect the performance and functionality of the product. Any modifications and changes are prohibited...
