Summary of Contents for Plastaket Manufacturing Champion 4000

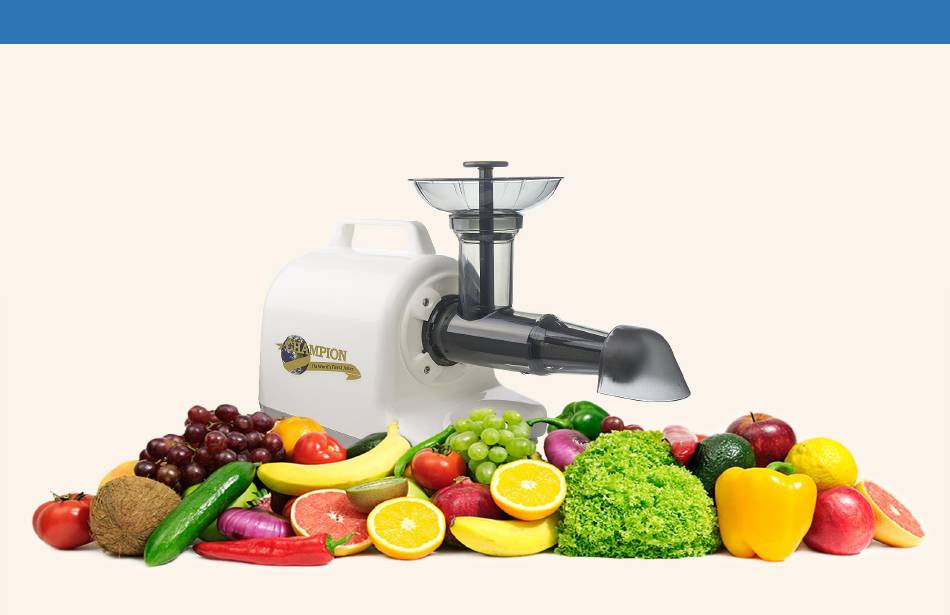

- Page 1 OWNER’S MANUAL THE WORLD’S FINEST Champion 4000 Juicer...
-
Page 2: Table Of Contents
• Wheatgrass & leafy greens juices Homogenizing Instructions ..15 Shredding Instructions ..16 If variety is the spice of life, then the Champion 4000 Juicer is, Disassembly and Cleaning ..17 quite literally, just what the doctor ordered. Treat your taste Troubleshooting .... -
Page 3: Important Safeguards
Some models shipped outside of the Important Safeguards U.S. may need wiring changes to adapt to local electrical standards. Contact When using the Champion 4000 Juicer, basic safety precautions should always be practiced including Plastaket Manufacturing Company for the following: information @ LARGE PORTIONS of produce that might get 1. -
Page 4: Juicer Parts
(5) year limited warranty. For more information about the warranty, see the limited warranty TAMPER card at the back of this manual, call DEFLECTOR BLANK INSERT Plastaket Manufacturing Company @ 209-369-2154 or visit our website at www.championjuicer.com. JUICING RESTRICTOR (GRAY) FUNNEL... -
Page 5: Juicer Assembly (Exploded View)
Juicer Assembly (Exploded View) TAMPER FUNNEL MOTOR INSERT ASSEMBLY DEFLECTOR FEEDING O-RING TUBE SEAL GRINDING AUGER SCREEN INSERT BODY RESTRICTOR GREENS AUGER BLANK INSERT... - Page 6 TABLE 1. RECOMMENDED ASSEMBLY (MODEL 4000) AUGER INSERT RESTRICTOR PRODUCT PRODUCE GREENS GRINDING JUICING OPEN SCREEN BLANK (Green) (Gray) (Gray) (Almond) JUICE VEGETABLES JUICE FRUIT JUICE WHEATGRASS GREENS JUICE LEAFY GREENS JUICE NON-FIBROUS FRUIT FROZEN FRUIT SMOOTHIES NUTS - DRY ROASTED BUTTERS TOMATOES, APPLES, SAUCES...
-
Page 7: Assembly Instructions
Assembly Instructions Apply a light coating of olive or coconut oil to the o-ring seal. Install the o-ring seal over the hub insert. Note: The o-ring seal is initially installed over the hub insert. 2. Apply a light coating of olive or coconut oil onto the motor shaft. - Page 8 Assembly Instructions 3. Slide the back of auger onto the motor shaft and rotate until the flat in the auger and the flat on the motor shaft are aligned. Continue to slide the auger onto the motor shaft until the auger stops against the end of the motor shaft. a.
- Page 9 Assembly Instructions 4. Slide the screen insert into the body so that the insert top opening is in line with the feeding tube. The grooves in the insert must be aligned to the body ribs. If the fit is tight, recheck the alignment. Using your thumb, apply forward pressure to the front of the top opening of the insert to assure that it is completely seated in the body.
- Page 10 Assembly Instructions 5. Install the restrictor to the front of the body as follows: a. Slide the cone end (back) of the restrictor over the front of the body. b. Align the large groove (top) of the restrictor to the tab on the front of the body (tab is located 90 degrees clockwise from the feeding tube looking from the front).
- Page 11 Assembly Instructions 6. Install the body assembly onto the hub of the motor assembly as follows: a. Slide the body assembly over the auger and against the hub of the motor assembly. b. With the feeding tube slightly clockwise of vertical, align the body flange openings to the hub lugs and then rotate counter-clockwise against the stops.
- Page 12 Assembly Instructions 7. Install the deflector to the restrictor by aligning the tabs of the deflector with the grooves of the restrictor and sliding the deflector down from the top.
- Page 13 Assembly Instructions 8. Install the funnel onto the feeding tube by sliding it down from the top.
- Page 14 Assembly Instructions 9. The tamper is designed to be used in either direction. Use the tamper with its smaller diameter face down when using the greens auger. Use the tamper with its larger diameter face down when using the grinding auger. Each face of the tamper is identified as “GRINDING”...
-
Page 15: Juicing Instructions
Juicing Instructions PRODUCE RECOMMENDATIONS 1. Vegetables to juice include root vegetables, wheatgrass and leafy greens. 2. Fruits to juice include most fruits. Fruits such as apples and pears must be fresh and crisp for proper cutting of the peals and maximum juice extraction. If your produce is not fresh, peal removal or replacement with fresher produce is recommended prior to juicing. -
Page 16: Homogenizing Instructions
Homogenizing Instructions PRODUCE RECOMMENDATIONS Nut Butters - Use only DRY ROASTED & SHELLED nuts. Fruit Whips - Fruits such as bananas, strawberries and pineapple make the best whips. Soups & Baby Food - Vegetables such as potatoes, broccoli and tomatoes. Sauces –... -
Page 17: Shredding Instructions
Shredding Instructions PRODUCE RECOMMENDATIONS Hard vegetables, such as carrots, beets, onions and cabbage. PRODUCE PREPARATION 1. Clean all vegetables thoroughly by soaking in water or brushing and then rinsing. 2. All vegetables should be cut into easy to feed size; about 1¼ inch maximum cross-section by 3 to 4 inches in length. SHREDDING (See Table 1, page 5) 1. -
Page 18: Disassembly And Cleaning
Disassembly & Cleaning Instructions 1. Unplug the juicer. 2. Slide the deflector up and off of the restrictor. 3. Slide the funnel up and off of the feeding tube. 4. Remove the restrictor by rotating clockwise and sliding off of face of the body. 5. -
Page 19: Troubleshooting
Troubleshooting SYMPTOM CAUSE SOLUTION Body is not properly assembled to hub. Check assembly. Magnet in body flange is missing. Replace magnet. ON/OFF Switch is off. Turn on switch. Motor does not start. Power supply is bad. Check plug and circuit breaker. Juicer motor bad. - Page 20 THE WORLD’S FINEST Champion 4000 Juicer by Plastaket Manufacturing Company Inc. 6220 E. Highway 12, Lodi, California 95240 www.championjuicer.com Phone: 209-369-2154, Fax: 209-369-7455...
