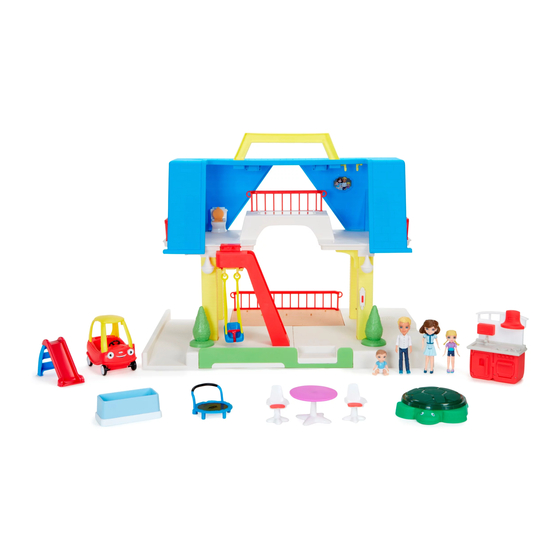

Little Tikes Tikes Place 643286 Assembly Instructions

ADULT ASSEMBLY AND BATTERY INSTALLATION REQUIRED

CONTENTS

A. 1 Upper Floor I. 1 Top Banister R.
B. 1 Lower Floor (Base) J. 1 Bottom Banister S.
C. 1 Front Left Column K. 1 Front Roof Half T.
D. 1 Front Right Column L. 1 Back Roof Half U.
E. 1 Back Left Column 1 Handle
M. V.
F. 1 Back Right Column N. 4 Trees W.
G. 1 Set of Stairs O. 1 Swing X.
H. 2 Side Banisters 1 Kitchen
P. Y.
Q. 4 Characters Z.
I
H
H
A
J
B
M
K
L
O P Q R
N x4
V
U W

BATTERY INSTALLATION

Before playing, an adult must install fresh alkaline batteries. Here's how:
1. Using a Phillips screwdriver (not included) remove the screw and battery compartment cover from under
the unit.
2. Install three (3) fresh 1.5V AA (LR6) alkaline batteries (not included) making sure the (+) and (-) ends face
the proper direction as indicated inside the battery compartment.
3. Replace the compartment cover and tighten the screw.
1
AGES 3+ YEARS
ADULT SUPERVISION REQUIRED
1 Cozy Coupe®
(Not included)
1 Slide
1 Bathtub
1 Turtle Sandbox with Lid
2 Chairs
1 Table
1 Trampoline
1 Sticker sheet (not shown)
6 Screws
Place the family portrait sticker (Y) inside of the back roof half (L).
4
C D
E F
Screw the front (K) and back (L) roof halves together using 4 screws (Z).
Screw the handle (M) to the front roof half (K) using 2 screws (Z).
7
G
S
T
C
Z x6
Snap the columns into the openings underneath the upper floor (A).
X
10
A
3 x AA Batteries
G
B
Snap the top of the stairs (G) onto the top floor (A) and then
snap the bottom of the stairs into the opening on the bottom floor (B).
2
Y
L
K
5
Z x 6
K
H
L
UNDERSIDE VIEW
Snap the side banisters (H) onto both edges of the upper floor (A).
Then, snap the top banister (I) onto the platform on the upper floor (A).
8
A
F E
D
Snap the bottom of the columns into the openings on the lower floor (B).
11
A
G

ASSEMBLY

M
Press the handle (M) into the front half roof (K).
I
H
A
F E
C D
N
N
B
Snap the four trees (N) onto the base (B).
3
M
L
K
Snap the back roof half (L) into the front roof half (K) together.
6
J
B
Snap the bottom banister (J) onto the patio on the lower floor (B).
9
K
A
Snap the roof onto the upper floor (A) with the front roof half (K)
facing the front of the house as shown.
12
Y
A
Place the rug sticker (Y) on the upper floor (A).
