Refrigerator Liner Parts - Whirlpool GB2SHDXTB11 Parts Manual
Whirlpool corporation refrigerator parts manual
Hide thumbs
Advertisement
For Models: GB2SHDXTQ11, GB2SHDXTB11, GB2SHDXTS11, GB2SHDXTL11
Illus.
Part
No.
No.
DESCRIPTION
1
Liner (Not A
Serviceable Part)
2
Y67003896 Bracket, Control
and Lights
3
67005190 Overlay
4 W10185244 Housing,
Electronic Control
5 W10165748 Board, Control
6
C3680310 Switch, Light
7
67003897 Cover, Light

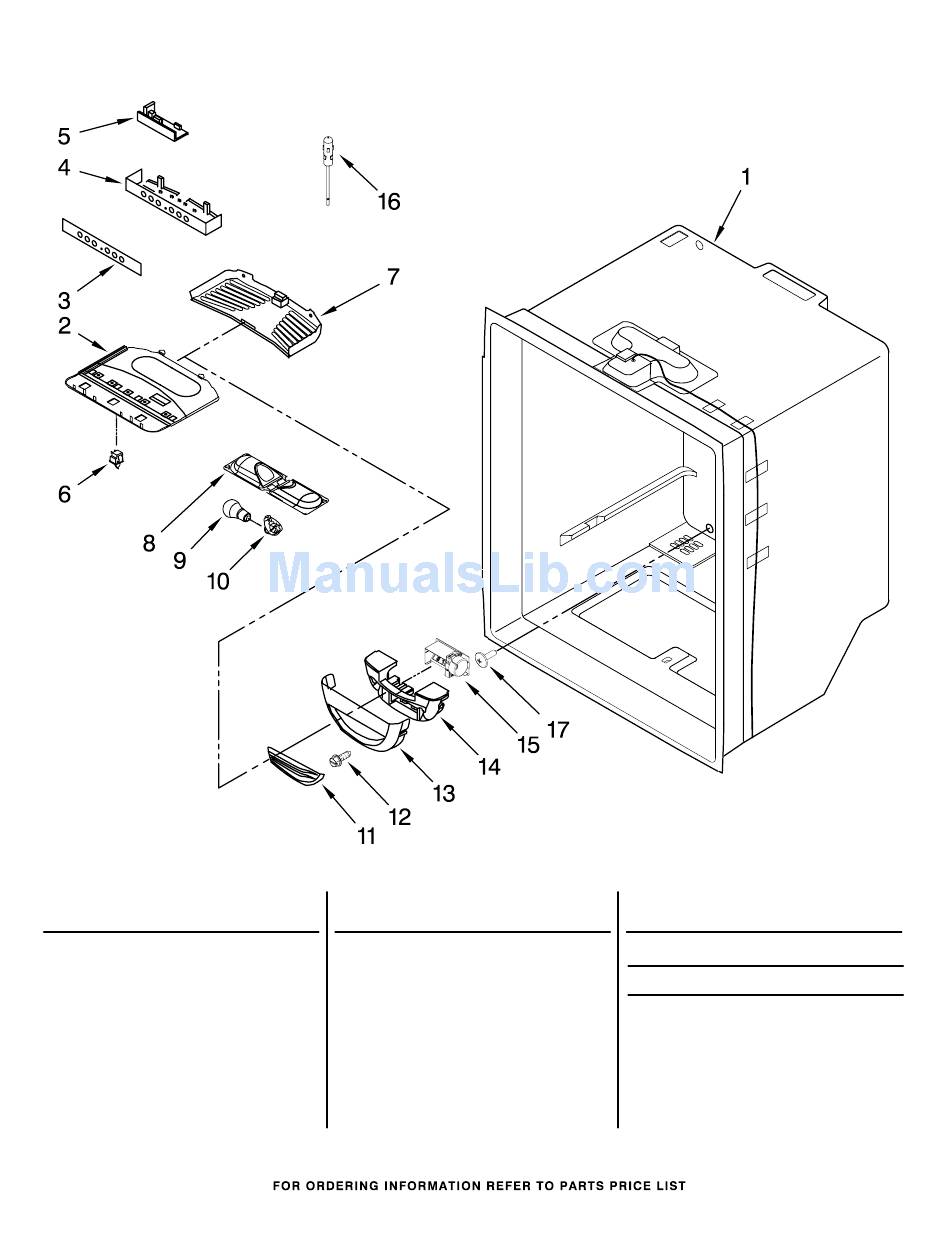

REFRIGERATOR LINER PARTS
(White)
Illus.
Part
No.
No.
8
67003901 Housing, Light
9
A0282812 Bulb, Light (2)
10
Y12570701 Socket, Light (2)
11
67003900 Insert,
12
67006602 Screw
13
67003899 Cover, Damper
14
67006604 Insulation
15 W10127429 Control, Damper
16
12002355 Thermistor
17 M0310343 Plug Button
(Black)
(Stainless Steel)
DESCRIPTION
Damper Cover
6
(Satina)
Illus.
Part
No.
No.
DESCRIPTION
Following Parts Not Illustrated
8208198 Harness, Controls
(Refrigerator)
(Includes # 16)
