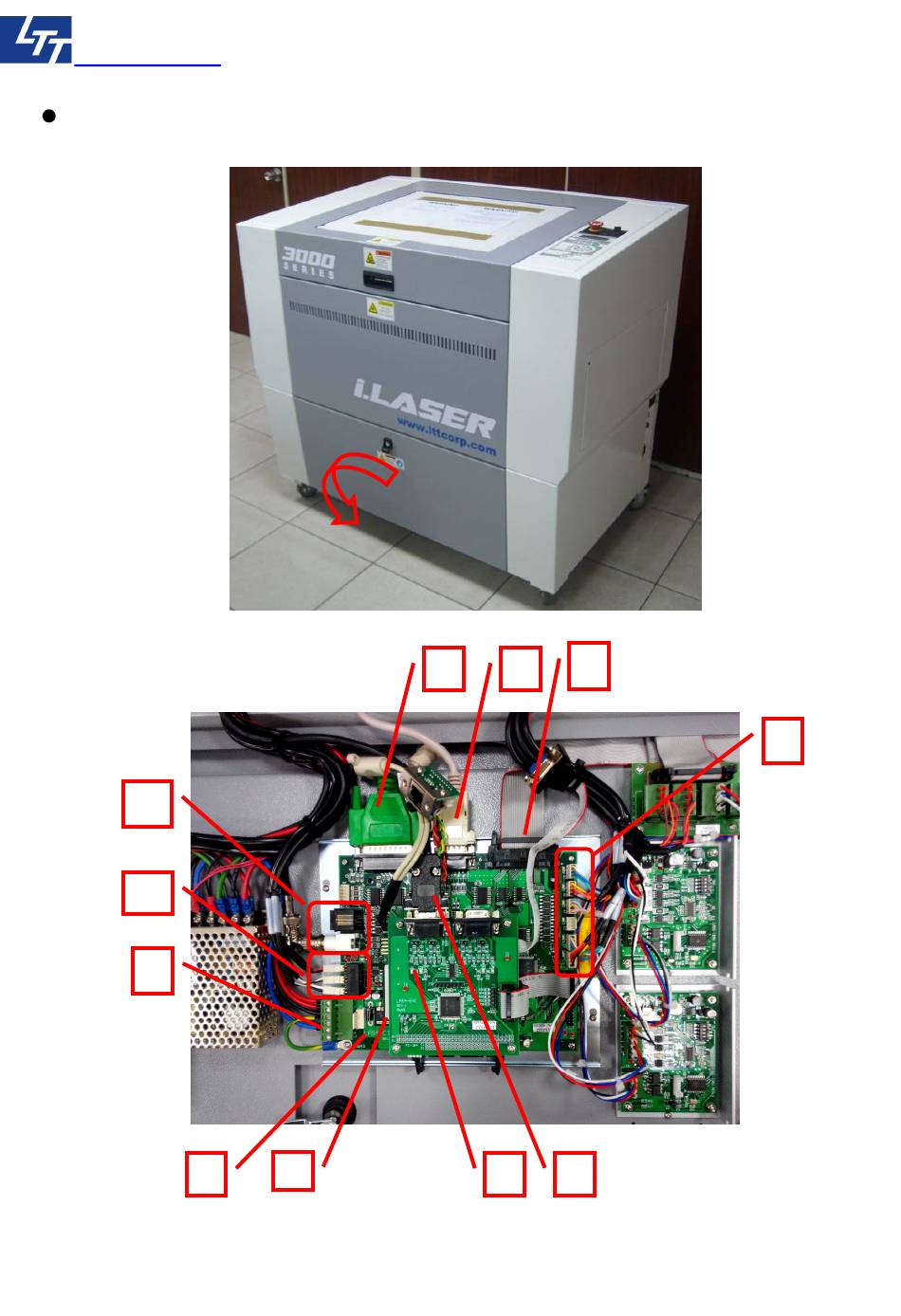

- Page 1 Laser Tools & Technics Corp. www.lttcorp.com page 1/3 SOP # S420040 iLaser Main Control Board Instruction and Exchange Instruction... 1. Please open the front door of chassis; you will see the main control board. 2. Parts description...
- Page 2 Laser Tools & Technics Corp. www.lttcorp.com page 2/3 SOP # S420040 Name Function Description To receive working files from PC. It will be connected to a 25pin to LPT port USB cable. Panel port It is connected to panel. Motion port It is connected to motion driver board.
- Page 3 Laser Tools & Technics Corp. www.lttcorp.com page 3/3 SOP # S420040 Connect with all the cables. Please pay attention, there are free RJ45 connector, PS/2 connectors and a monitor connector, use a strip to tight them at the other cables, they must not be contacted with any metal.
