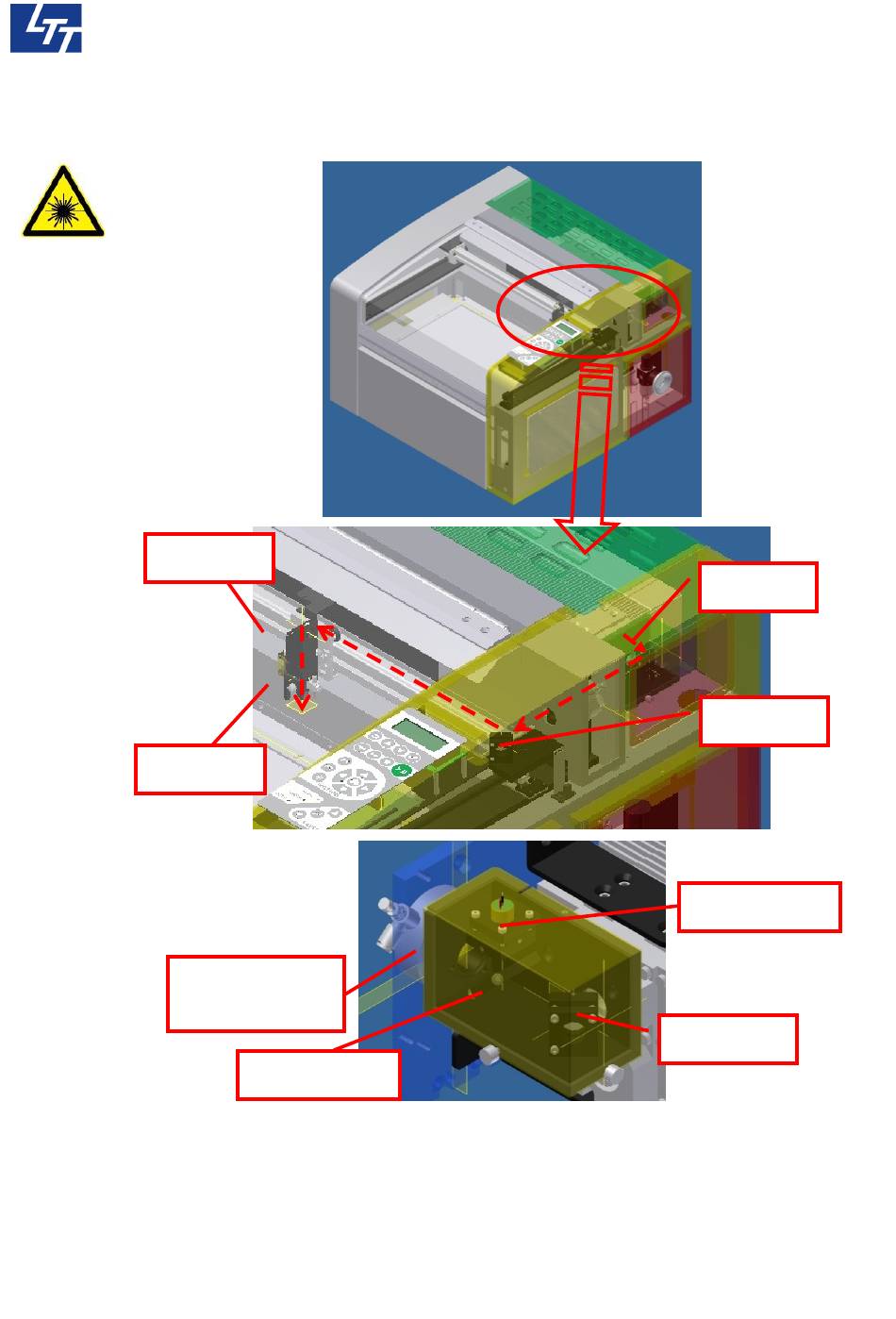

1. V2000 laser beam path and optics layout description

3rd mirror
Focus lens
Window
(inside the ring)
Beam Combiner
SOP # S220010
page 1/6
1st mirror
2nd mirror
Red Laser
1st mirror

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the V2000 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for LTT V2000

  • Page 1 Laser Tools & Technics Corp. www.lttcorp.com SOP # S220010 page 1/6 V2000 LaserAlignment 1. V2000 laser beam path and optics layout description 3rd mirror 1st mirror 2nd mirror Focus lens Red Laser Window (inside the ring) 1st mirror Beam Combiner...
  • Page 2 Allen wrenches 2.3 Panel operation description Alignment Mode This function is used for alignment of laser. It is recommendedNOTuse this function unless instructed to by a LTT technician. Power Indicates the power for laser tickle. Its range is between 0~100%. Continuous...
  • Page 3 Laser Tools & Technics Corp. www.lttcorp.com SOP # S220010 page 3/6 3. Alignment Key Skills Due to the CO2 laser is invisible light, so we have to use tools to check the position of laser beam. We use the thermal print fax paper and double sided tape to stick the paper on the mirror holders around the reflection mirrors.
  • Page 4 Laser Tools & Technics Corp. www.lttcorp.com SOP # S220010 page 4/6 The mirror moduleconsists by two aluminum blocks, one is fixed part and the other one is moveable part. And they were mount together by three hex screws and three springs. When you adjust mirror, you just turn screw A or screw B each time.
  • Page 5 Laser Tools & Technics Corp. www.lttcorp.com SOP # S220010 page 5/6 4. Alignment Process 4.1 First Mirror Alignment To do alignment from 1 mirror to 2 mirror. Trig a small power of laser on the 2 mirror at position ƒ[. And then move carriage to position and trig laser again.
  • Page 6 Laser Tools & Technics Corp. www.lttcorp.com SOP # S220010 page 6/6 Spot at point 2 Spot at point 8 4.3 Final Mirror Confirm The final mirror is not adjustable part, to confirm the alignment, please stick the thermal paperunder the nozzle as following picture and trig laser in nine points. The spot should be as close aspossible the central on the nozzle, if not, please go to 1 mirror and do the alignment again till thespot is near the central.
