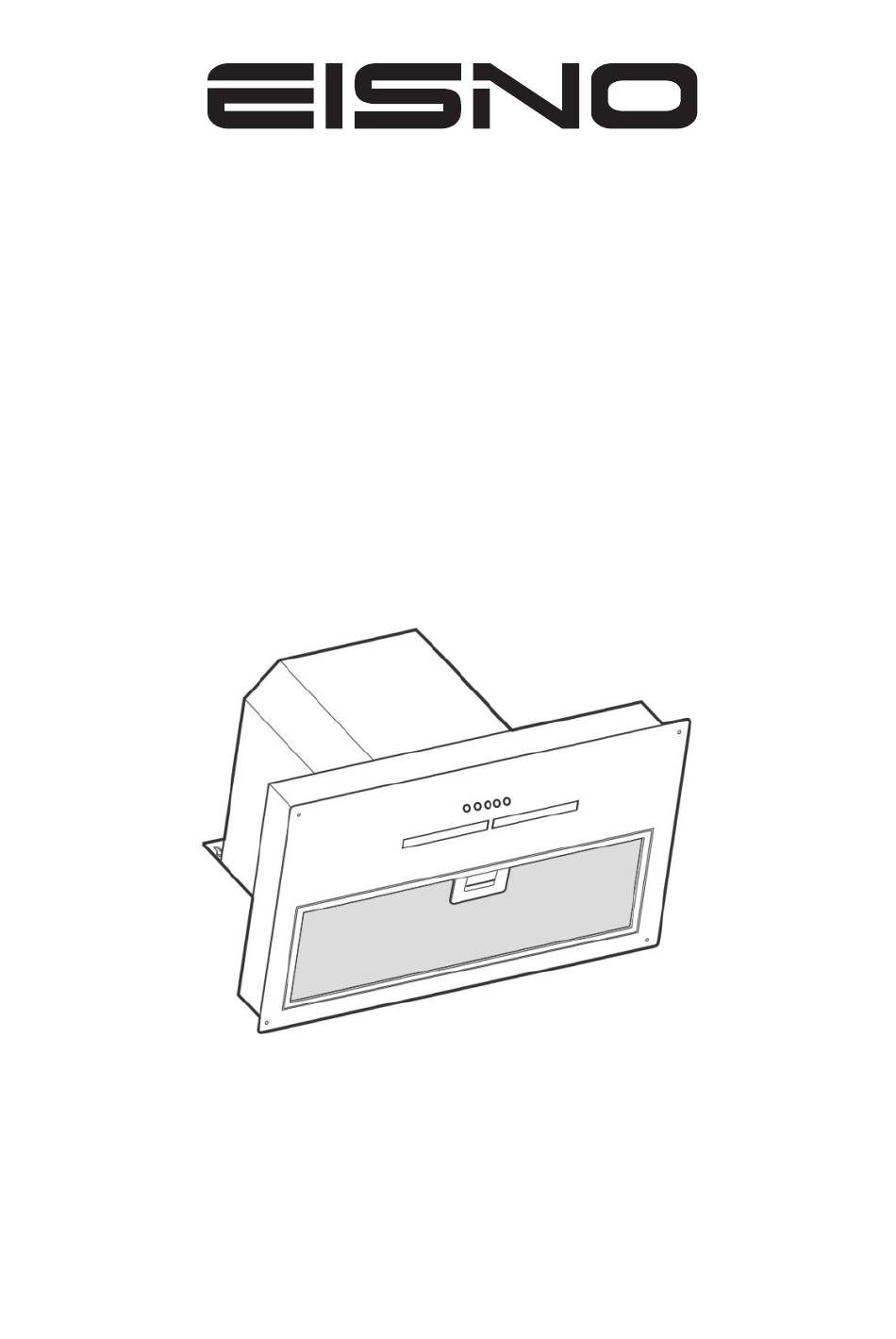

- Page 1 EIS-INT60-01&EIS-INT90-01 RANGE HOOD INSTRUCTION MANUAL Thank you for your purchase of this product. Please read the manual carefully before operating the appliance.
- Page 2 Installation Diagram...
-
Page 3: Table Of Contents
Contents ......Introduction ........ Features ......Installation )..Charcoal filter Optional ......How To Use ....Safety Information ....Trouble Shooting ....Electrical Diagram ......Specifications & ..Cleaning Maintenance... -
Page 4: Introduction
Introduction 1.1 This appliance has been manufactured with materials and processes that respect the environment. We hope that you will continue this important consideration in the operation of this appliance & the disposal of the packaging materials, thank you. 1.2 The installation work must be undertaken by a qualified technician experienced in cooker hood installation. -
Page 5: Features
Features 2.1 This appliance is manufactured from top quality materials, and offers superb streamlined effects. 2.2 With high suction power and low noise, it is designed to remove cooking fumes from your kitchen quietly & effectively. Installation（duct is not supplied ) Installation 3.1 The range hood should be mounted at a distance of 650mm above a gas product... - Page 6 3.6 Ensure that the wall to be installed on is sufficiently sturdy to carry the weight of the hood. It should be mounted level for best performance (see illustration). 3.7 Do not connect to a common vent with other appliance such as gas heater, water heater, laundry dryer etc.
-
Page 7: Charcoal Filter (Optional)
Charcoal filter (Optional) The hood can be fitted with a charcoal filter which can make your kitchen cleaner. Step 1. Take out the charcoal filter from the package.(see pic 6) Step 2. Buckle the filter on the air cabinet and push it up. (see pic 7,8,9) Step 3. -
Page 8: How To Use
How To Use 3 Speed adjustment (see pic 11). Push Stop button, and the motor will stop. Ÿ Push the Low button, and the motor runs at low Ÿ speed. Push the Mid button, and the motor runs at mid. Ÿ... -
Page 9: Safety Information
Safety Information There shall be adequate ventilation of the room when the Ÿ range hood is used at the same time as appliances burning gas or other fuels. Do not check the status of the filters when the range hood is Ÿ... -
Page 10: Trouble Shooting
Trouble Shooting If any problem occurs, please detach the plug from the socket and contact the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard. Detach flue and duct then turn on the hood to check if the valve opens Plug another appliance into the socket to confirm... -
Page 11: Electrical Diagram
Electrical Diagram EIS-INT60-01 220V-240V 50Hz POWER BOARD HIGH CONTROL BOARD MOTOR EIS-INT90-01 220V-240V 50Hz POWER BOARD HIGH CONTROL BOARD MOTOR... -
Page 12: Specifications
Specifications EIS-INT60-01 AC 220V-240V 50Hz Rated Input Power 218W Lighting Power 2W×1 Motor Power 216W Motor Max. Airflow 1000m3/h Outlet Diameter 150mm EIS-INT90-01 Power Supply AC 220V-240V 50Hz Rated Input Power 220W Lighting Power 2W×2 Motor Power 216W Motor Max.Airflow... -
Page 13: Cleaning & Maintenance
Cleaning & Maintenance Warning: Before cleaning, please ensure that the power is switched off by detaching the plug from the wall socket. 10.1 Clean the surface of hood every week with mild soap or detergent . Avoid solvents, acid, alkali, scouring pads or powders that could irreparably damage the stainless steel surface.
