KTM950/990 Penetrator LED light bar Instructions
Thank you for purchasing the Cyclops KTM 950/990 LED light bar. The install is fairly straight
for forward, but should be performed by a qualified motorcycle mechanic.

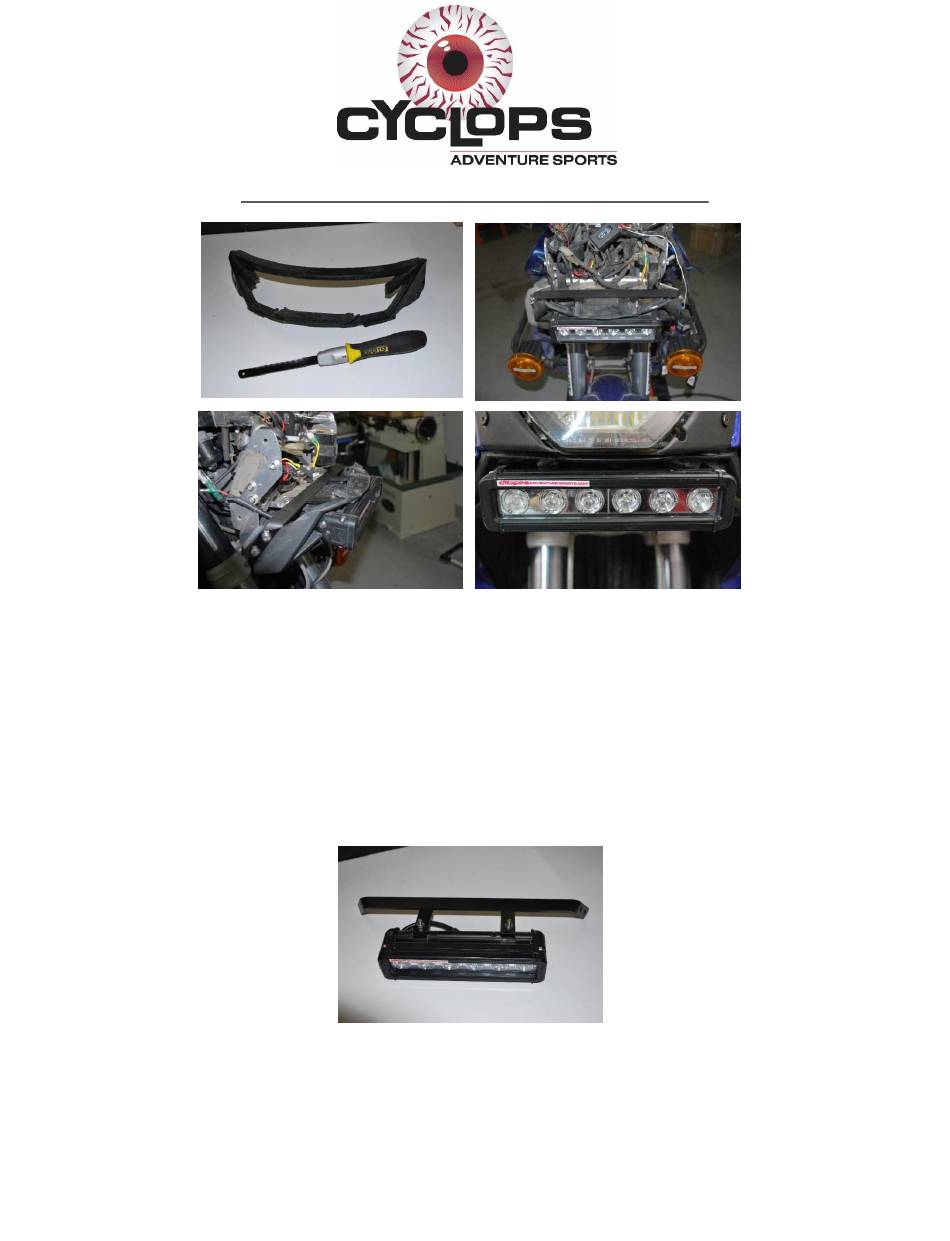

Start by removing the panels from both sides of the bike and the headlight. Next, remove the
factory grill where the light will sit. Cut the center of the factory grill as shown in photo one or
leave the grill completely off. Modifying the grill, shown in the photos will provide a better
looking bike and overall better satisfaction with the kit.
Start by using the two half pipe mounts to attach the light bar to the 990 bracket, center the light
bar on the mount as closely as possible. Do not tighten these bolts all the way just yet.
Next mount the steel bracket using the existing grill attachment holes and provided 6mm bolts
and washers. If using a modified grill, stretch the grill over the mount at this time. The plastic
grill will be on the outside of the 990 mount. Do not tighten anything quite yet. Run all 4 6mm
bolts approx. ½ way in.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for CYCLOPS Penetrator
Summary of Contents for CYCLOPS Penetrator
- Page 1 KTM950/990 Penetrator LED light bar Instructions Thank you for purchasing the Cyclops KTM 950/990 LED light bar. The install is fairly straight for forward, but should be performed by a qualified motorcycle mechanic. Start by removing the panels from both sides of the bike and the headlight. Next, remove the factory grill where the light will sit.
- Page 2 At Cyclops we prefer to zip tie the relay to the round headlight aluminum frame members. Use one of the headlight frame mounting bolts to attach the black wire with the ring terminal.
