Chauvet DJ FESTOON 2 RGB User Manual

Hide thumbs Also See for FESTOON 2 RGB:
Table of Contents

Advertisement

Quick Links

Download this manual
User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FESTOON 2 RGB and is the answer not in the manual?

Questions and answers

Related Manuals for Chauvet DJ FESTOON 2 RGB

Summary of Contents for Chauvet DJ FESTOON 2 RGB

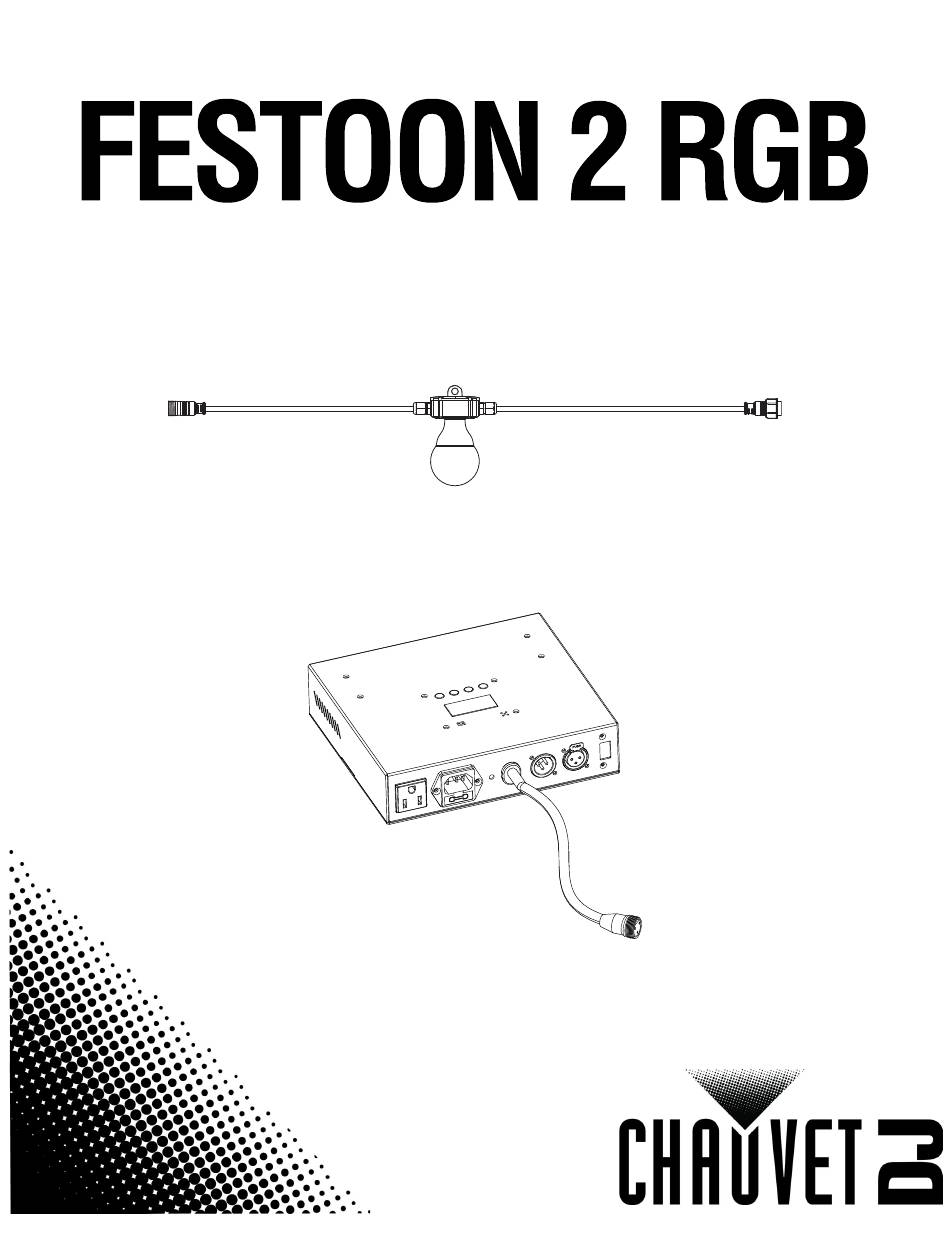

  • Page 1 User Manual...

  • Page 2: Table Of Contents

    Control Panel Operation................... Menu Map ........................ Configuration (DMX) ....................DMX Personality and Starting Address................10 Set # of Festoon 2 RGB Strings..................10 DMX Channel Assignments and Values ................ 11 Pixel Mapping Personalities ................... 12 Configuration (Standalone) ..................Control Mode........................18 Static Colors........................

  • Page 3: Before You Begin

    Electronically published by Chauvet in the United States of America. CHAUVET, the Chauvet logo, and Festoon 2 RGB are registered trademarks or trademarks of Chauvet & Sons LLC. (d/b/a Chauvet and Chauvet Lighting) in the United States and other countries. Other company and product names and logos referred to herein may be trademarks of their respective companies.

  • Page 4: Safety Notes

    • The Festoon 2 RGB is for indoor or temporary outdoor use (IP54). Do not expose to harsh or excessively corrosive environmental conditions (whether indoors or outdoors),...

  • Page 5: Introduction

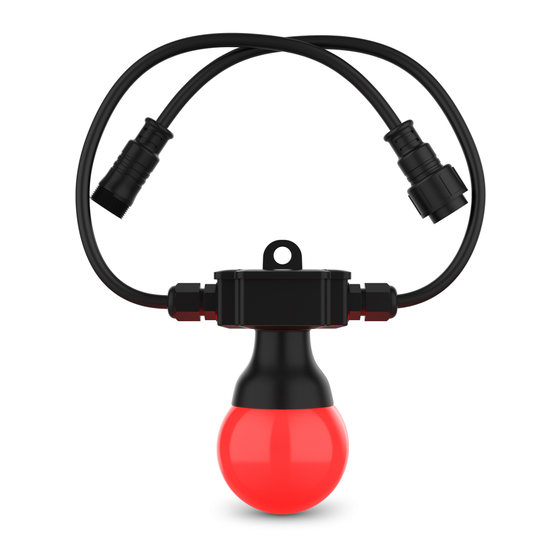

    DMX In/Out Menu Festoon String Port Buttons Extension Cable Festoon 2 RGB String of Bulbs Festoon 2 RGB Bulb (In Detail) Mounting Eyelet IP54 Rated Socket, Cabling and Plug Festoon 2 RGB User Manual Rev. 1 Page 3 of 23...

  • Page 6: Product Dimensions

    NTRODUCTION Product Dimensions 7.25 in 184 mm 8 in 203 mm 5.2 in 133 mm 590.5 in 15000 mm 2.4 in 60 mm 2 in 49 mm Page 4 of 23 Festoon 2 RGB User Manual Rev. 1...

  • Page 7: Setup

    ETUP AC Power The Festoon 2 RGB has an auto-ranging power supply and it can work with an input voltage range of 100 to 240 VAC, 50/60 Hz. To determine the product’s power requirements (circuit breaker, power outlet, and wiring), use the current value listed on the label affixed to the product’s back panel, or refer to the product’s specifications chart.

  • Page 8: Power Linking

    Power Linking The product provides power linking via the Edison outlet located in the back of the product. Please see the diagram below for further explanation. The Festoon 2 RGB controller can each control up to 3 strings (60 bulbs)

  • Page 9: Mounting

    Before mounting the product, read and follow the safety recommendations indicated in the Safety Notes. Orientation The Festoon 2 RGB controller may be mounted in any position; however, make sure adequate ventilation is provided around the product. Rigging • Before deciding on a location for the product, always make sure there is easy access to the product for maintenance and IRC or programming purposes.

  • Page 10: Mounting

    • To prevent line sagging, it is recommended to use every eyelet, or in open installation areas (such as outdoors) it is recommended to run a guy line and attach the Festoon 2 RGB to the guy wire. • Use support poles as necessary. Chauvet recommends a support pole every 8 m. If the support poles are used as end or corner supports, they will need to be tied back.

  • Page 11: Operation

    LED display turns off after 30 seconds Setting LED display turns off after 60 seconds Factory Default Default Resets to factory default settings Reset Information Version V_ _ Shows installed software version Festoon 2 RGB User Manual Rev. 1 Page 9 of 23...

  • Page 12: Configuration (Dmx)

    PERATION Configuration (DMX) The Festoon 2 RGB works with a DMX controller. If you are not familiar with the DMX protocol, information about DMX is in the CHAUVET DMX Primer. Download the DMX Primer from http:// www.chauvetlighting.com/downloads/DMX_Primer_rev05_WO.pdf. DMX Personality and Starting Address When selecting a starting DMX address, always consider the number of DMX channels the selected DMX mode uses.

  • Page 13: Dmx Channel Assignments And Values

    215  220 Auto Program 35 221  226 Auto Program 36 227  232 Auto Program 37 233  238 Auto Program 38 239  255 Sound Active Program Festoon 2 RGB User Manual Rev. 1 Page 11 of 23...

  • Page 14: Pixel Mapping Personalities

    For example, if there is 1 festoon string of 20 bulbs and 1 festoon EXT string of 20 bulbs connected, the Led Strg setting in the menu must have “2 strg” selected. Page 12 of 23 Festoon 2 RGB User Manual Rev. 1...
  • Page 15 Pixel 15 Green 255 0-100%  Pixel 15 Blue 255 0-100%  Pixel 16 Red 255 0-100%  Pixel 16 Green 255 0-100%  Pixel 16 Blue 255 0-100%  Festoon 2 RGB User Manual Rev. 1 Page 13 of 23...
  • Page 16 Pixel 20 Green 255 0-100%  Pixel 20 Blue 255 0-100%  Pixel 21 Red 255 0-100%  Pixel 41 Red 255 0-100%  Pixel 61 Red 255 0-100%  Page 14 of 23 Festoon 2 RGB User Manual Rev. 1...
  • Page 17 (when Ch. 3 is 010  238) 000  010 Sound sensitivity off Sound Sensitivity (when Ch. 3 is 239  255) 011  255 Sound sensitivity level Pixel 1 Red 255 0-100%  Festoon 2 RGB User Manual Rev. 1 Page 15 of 23...
  • Page 18 Pixel 15 Blue 255 0-100%  Pixel 16 Red 255 0-100%  Pixel 16 Green 255 0-100%  Pixel 16 Blue 255 0-100%  Pixel 17 Red 255 0-100%  Page 16 of 23 Festoon 2 RGB User Manual Rev. 1...
  • Page 19 Pixel 20 Green 255 0-100%  Pixel 20 Blue 255 0-100%  Pixel 21 Red 255 0-100%  Pixel 41 Red 255 0-100%  Pixel 61 Red 255 0-100%  Festoon 2 RGB User Manual Rev. 1 Page 17 of 23...

  • Page 20: Configuration (Standalone)

    DMX controller. Products in standalone mode may transmit DMX signals that could interfere with the DMX signals from the controller. Control Mode To select the control mode for the Festoon 2 RGB, follow the instructions below: Press <MENU> repeatedly until Control shows on the display. Press <ENTER>.

  • Page 21: Irc-6 Infrared Remote Control

    PERATION IRC-6 Infrared Remote Control The Festoon 2 RGB is compatible with the IRC-6 infrared remote control from Chauvet DJ. To activate IR mode, follow the instructions below: Press <MENU> repeatedly until Remote shows on the display. Press <ENTER>. Press <UP> or <DOWN> to select ON or OFF.

  • Page 22: Maintenance

    Softly drag any dirt or grime to the outside of the transparent surface. Gently polish the transparent surfaces until they are free of haze and lint. Always dry the transparent surfaces carefully after cleaning them. Page 20 of 23 Festoon 2 RGB User Manual Rev. 1...

  • Page 23: Technical Specifications

    ATING 104 °F (40 °C) Convection IP54 I/O C ONNECTOR HANNEL ANGE 3-pin XLR 3, 9, Pixel, or Pixel+ Ordering UPC N RODUCT UMBER Festoon 2 RGB 09091690 781462220389 Festoon 2 RGB User Manual Rev. 1 Page 21 of 23...

  • Page 24: Returns

    Be sure to pack the product properly. Any shipping damage resulting from inadequate packaging will be your responsibility. FedEx packing or double-boxing are recommended. Chauvet reserves the right to use its own discretion to repair or replace returned product(s). Page 22 of 23 Festoon 2 RGB User Manual Rev. 1...

  • Page 25: Contact Us

    Visit the applicable website above to verify our contact information and instructions to request support. Outside the U.S., U.K., Ireland, Benelux, France, Germany, or Mexico, contact the dealer of record. Festoon 2 RGB User Manual Rev. 1 Page 23 of 23...
