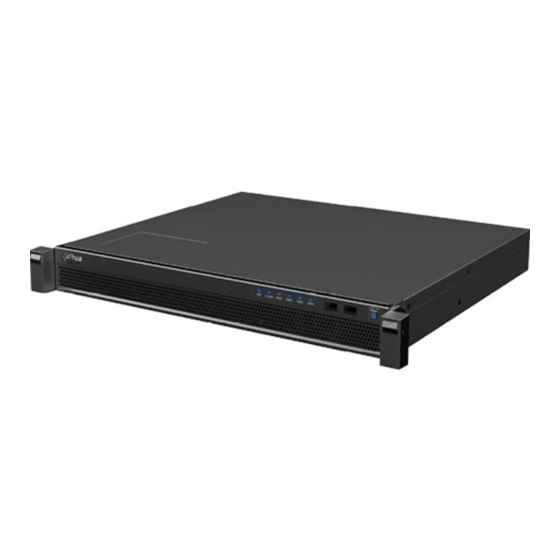

Dahua DSS4004 Initialization User's Manual
  1. Manuals
  2. Brands
  3. Dahua Manuals
  4. Security System
  5. DSS4004
  6. Initialization user's manual

Dahua DSS4004 Initialization User's Manual

Platform
Hide thumbs
Table of Contents

Advertisement

Quick Links

DSS4004 Platform Initialization User's Manual
V1.0.2

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DSS4004 and is the answer not in the manual?

Questions and answers

Related Manuals for Dahua DSS4004

Summary of Contents for Dahua DSS4004

  • Page 1 DSS4004 Platform Initialization User’s Manual V1.0.2...

  • Page 2: Table Of Contents

    Table of Content OPEN PACKAGE INSPECTION .............. 1 Steps of Inspection ....................... 1 Front Panel ..........................1 Rear Panel ..........................1 INITIALIZATION SETUP ................2 System IP Address ........................ 2 2.1.1 Local Setting ........................... 2 2.1.2 Web Setting ..........................4 Other Basic Config ........................
  • Page 3 Welcome Thank you for using our platform! This initialization user’s manual is designed to be a reference tool for the installation and operation of your system. Before installation and operation please read the following safeguards and warnings carefully! Please keep it for future reference!
  • Page 4 Important Safeguards and Warnings 1．Electrical safety All installation and operation here should conform to your local electrical safety codes. We assume no liability or responsibility for all the fires or electrical shock caused by improper handling or installation. 2．Transportation security Heavy stress, violent vibration or water splash are not allowed during transportation, storage and installation.

  • Page 5: Open Package Inspection

    1 Open Package Inspection 1.1 Steps of Inspection When you receive the device from the forwarding agent, you shall inspect as follows: Step 1. Please check whether there is any visible damage. Step 2. The protective materials used for the package of the device can protect most accidental clashes during transportation.

  • Page 6: Initialization Setup

     port 3:192.168.3.108  port 4:192.168.4.108 DSS4004 has local setting and WEB setting. 2.1.1 Local Setting Steps for local setting operation are listed below: Step 1. Connect VGA (or HDMI) monitor. Enter login username and password, you will enter initial configuration interface.
  • Page 7 Figure 2- 2 Step 3. Press 【↓】 button, move cursor to 2 “Set Network Card Info”, and press Enter. See Figure 2- 3. Figure 2- 3 Step 4. Press 【↓】, you shall select port to configure. Eth0 corresponds to port 1; eth1 corresponds to port 2 and so on. Select port, and press Enter.

  • Page 8: Web Setting

    Figure 2- 4 Step 5. Enter IP address. See Figure 2- 5. Figure 2- 5 Step 6. Press 【Tab】 button, move cursor to <OK>, and press Enter. A pop-up window shows “Save network configuration?” select OK to save. The IP configuration is now complete.

  • Page 9: Other Basic Config

    Figure 2- 6 Step 2. Please input user name and password. System default user name is admin and password is 123456. Step 3. Select Maintenance, and can modify the IP Address, then Apply. Figure 2- 7 2.2 Other Basic Config After you set platform IP address, please access the platform via a PC to config system basic infomation.

  • Page 10: Web Manager

    iii. Select Maintenance>Net Card tab, configure network mode, net card, IP address and etc. Select Maintenance>Time Setup tab, set time zone, date, time and NTP server. Select Maintenance>Port tab, set server port for WEB. Step 2. Storage config. There are local disk and network disk two storage methods. Select Storage Config>Local Disk interface, you can refresh, format disk and perform other operations.

  • Page 11: Technical Support

    Figure 3- 1 Note: You can download DSS Client on this login page. If it is your first time login DSS Manager, please add its IP address into the trusted site of your explorer. For security reason, please change your login password after you first login. Password can contains number, letter, underline and other symbols.
