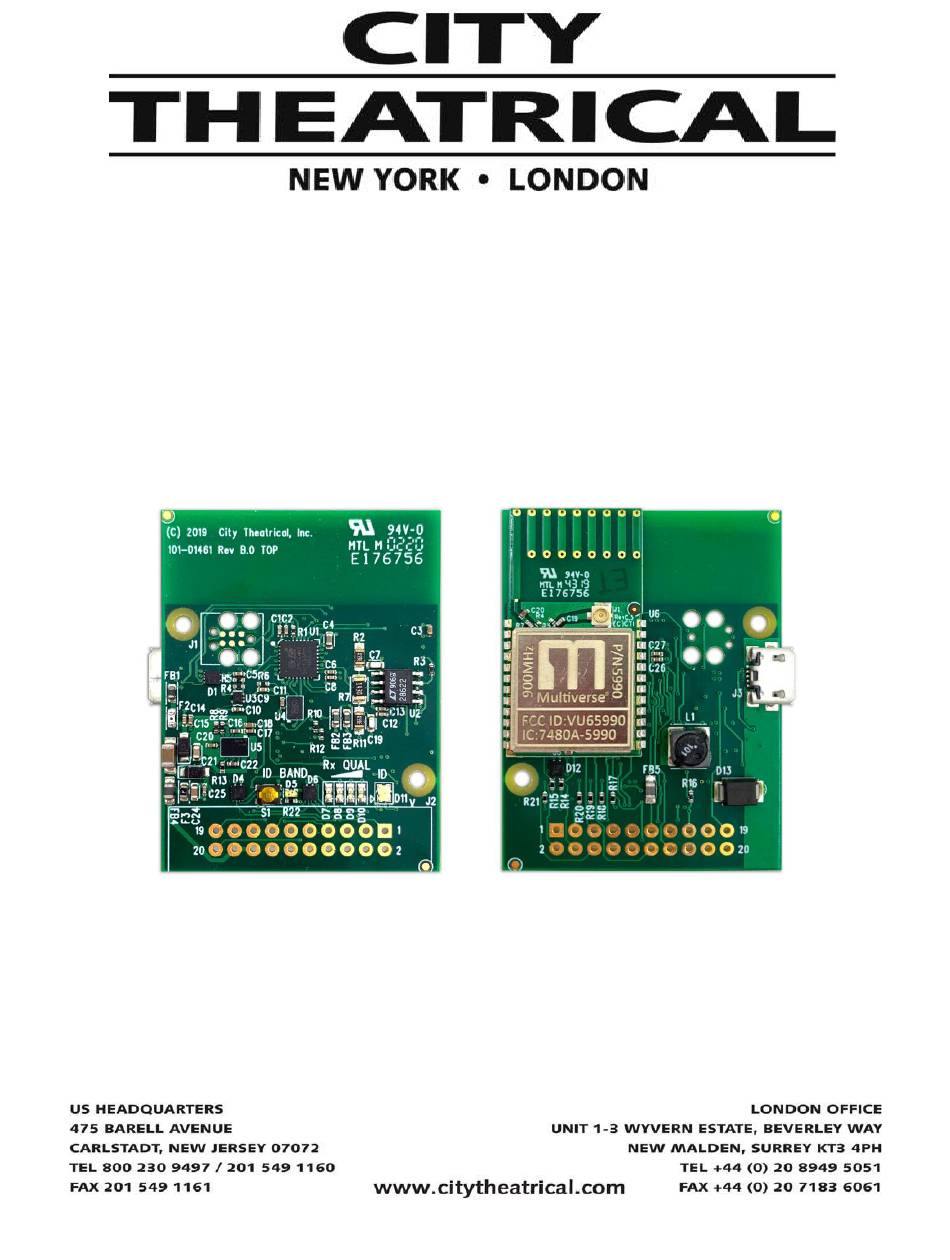

- Page 1 Multiverse Receiver Card, 900MHz P/N 5907 User’s Manual Rev 1.0 © 2020 City Theatrical, Inc. ® Multiverse Transceivers are covered by U.S. Patent # 7,432,803 and other U.S and foreign patents pending. Made in USA...
-
Page 2: Table Of Contents
5907 Multiverse Receiver Card, 900MHz Table of Contents Foreword ........................3 Introduction ........................3 Specifications ......................... 5 Configuration for Wireless DMX (Basic Mode) ............... 6 Configuration for 0-10V or PWM (Advanced Mode) ............. 11 Troubleshooting ......................17 Compliance Requirements ................... 19 List of Tables Table 1: Part Numbers ...................... -
Page 3: Foreword
Baby. Multiverse Receiver Cards include an internal antenna and a U.FL connection to an optional external antenna. Configuration is done via City Theatrical’s USB Configuration program for PC/MAC. This product is designed and built in the USA by City Theatrical. 2.1 Features □... -

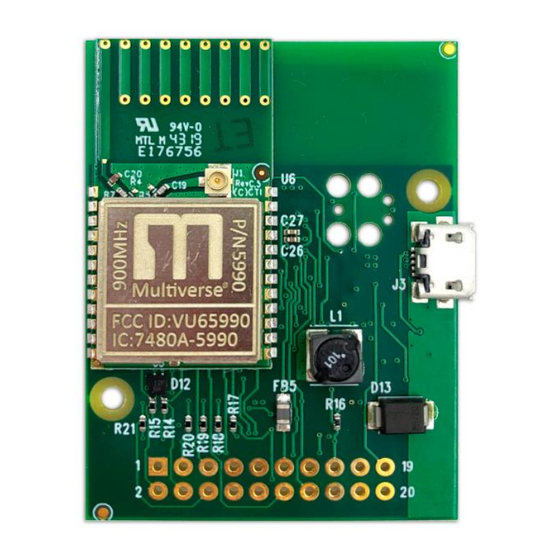

Page 4: Figure 1: Top And Bottom Detail With Basic Signal Pinout
5907 Multiverse Receiver Card, 900MHz 2.3 Product Detail Product is shown larger than actual size. Top: Bottom: Multiverse Radio, 900MHz (P/N 5990) Band Signal Indicator Quality Light Indicator Lights SHoW ID SHoW ID/ Selector Status Indicator Switch Light Connection Dimensions (with internal antenna)*: points 2.0"... -
Page 5: Specifications
Adaptive, Full, Low, Mid, High, Max Ethernet Protocols SHoW IDs Multiverse: 130 Latency 4ms average RF Sensitivity -95dBm RDM Features RDM Proxy, RDM Product Information Configuration City Theatrical USB Configuration program PC/MAC Use Environment Indoor Warranty One year Compliance Pre compliance reports available for integrators... -
Page 6: Configuration For Wireless Dmx (Basic Mode)
The four signal quality lights will flash in unison to show the completion of the reset. Factory defaults as seen on the City Theatrical USB Configurator program are seen below. These settings are found on the Basic Info tab and Manufacturer’s Settings tab in RDM. -
Page 7: Table 3: Band Led Colors
5907 Multiverse Receiver Card, 900MHz ▪ SHoW Key (0-500): 0 □ Info tab ▪ Device Label: Device Label ▪ DMX Fail Mode • Hold last look before bumping to level: infinite • Hold level before bumping to black: infinite □ Advanced tab ▪... -
Page 8: Table 5: Pinout Descriptions In Basic Mode
5907 Multiverse Receiver Card, 900MHz 4.6 Rx Quality LEDs There are four LEDs in this group that represent the quality of the wireless signal received. All four LEDs will be lit when the receive quality is at is maximum. Orient the antenna of the device to produce as many lit LEDs as possible. -
Page 9: Figure 2: Multiverse Show Id
5907 Multiverse Receiver Card, 900MHz 9 3 0 2 Multiverse SHoW ID Example: Prefix Data Rate Band Hop Pattern 9 900MHz Multiverse Faster data rates provide more Specifies which sections If multiple wireless DMX universes. Slower data of the wireless band the systems need to operate rates travel longer distances and frequency hopping... -
Page 10: Table 6: Show Ids And Show Keys
5907 Multiverse Receiver Card, 900MHz 4.7 SHoW Key The SHoW Key setting allows a user to enter a key to privatize their SHoW ID from another system on the same SHoW ID. SHoW IDs and SHoW Keys need to match in order for receivers and transmitters to talk to each other. -
Page 11: Configuration For 0-10V Or Pwm (Advanced Mode)
5907 Multiverse Receiver Card, 900MHz 5 Configuration for 0-10V or PWM Output (Advanced Mode) Advanced mode allows the use of 0-10V and PWM outputs, setting the starting DMX addresses for those outputs, as well as relocating LED indicators in remote positions. 5.1 0-10V Feature The 0-10V feature provides one 0-10V control signal output for controlling architectural lighting devices. - Page 12 See Table 8 for channel assignments. The DMX address is changed using RDM or the City Theatrical USB Configurator program. The PWM feature is configurable using the USB configurator only.
- Page 13 LED. The sink current for the external LED should not exceed 10mA. To use the pin as a PWM control output, use the City Theatrical USB Configurator program to enable the feature and connect pin to the control input of the host product. See Table 8 for channel assignments.
-
Page 14: Table 8: Dmx Address Map
This is the 0-10V output when enabled. See Table 8 for channel assignments. The DMX address is changed using RDM or the City Theatrical Configurator program. This output can sink or source current, thus it can be used in both theatrical and architectural installations. Maximum current should not exceed 15mA. -
Page 15: Table 10: Physical Characteristics (In Advanced Mode)
5907 Multiverse Receiver Card, 900MHz Table 10: Physical Characteristics UNIT Size 50 x 38 2x10 0.100” PCB land pattern I/O Interface Antenna Connector U.FL/IPEX Packaging Individual Anti-Static bag Table 11: Recommended Operating Conditions UNIT Ambient Temperature °C 0-10V Sink/Source Current External LED pins Supply Voltage Table 12: Power Consumption Summary... -
Page 16: Figure 3: 590X Dimensions
5907 Multiverse Receiver Card, 900MHz All dimensions are in mm. Figure 3: 590X Dimensions 2.3mm hole... -
Page 17: Troubleshooting
5907 Multiverse Receiver Card, 900MHz Troubleshooting Table 14: Troubleshooting Guide Symptom Solution(s) Check pinout to confirm proper power orientation. Use a multimeter to check for short circuits or voltage issues in power line. Unit does not power up. Confirm input voltage meets required specification. Disconnect power and check if module turns on from USB port. - Page 18 If you need to drive large loads reach out to City Theatrical for example setups. Try additional USB cables. Some USB micro cables are only built for power delivery.
-
Page 19: Compliance Requirements
The antenna used for this transmitter must not be co- located or operated in conjunction with any other antenna or transmitter. Modification warning: Caution - changes or modifications to this equipment, not expressly approved by City Theatrical, Inc. could void the user’s authority to operate the equipment. -
Page 20: Table 15: Fcc Id Label Requirement
5907 Multiverse Receiver Card, 900MHz 7.4 FCC Compliance Statement (United States) This device complies with Part 15 of the Federal Communications Commission (FCC) Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received, including interference that may cause undesired operation. -
Page 21: Table 17: Approved Antennas
5907 Multiverse Receiver Card, 900MHz 7.7 Approved Antennas To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the equivalent isotropically radiated power (e.i.r.p.) is not more than that required for successful communication. - Page 22 5907 Multiverse Receiver Card, 900MHz 7.9 Firmware Updates City Theatrical issues firmware updates occasionally to add features or to fix bugs. The firmware version is found on the Info section of the 5907. Firmware updates are found on the CTI website on the 5907 Downloads tab. Update instructions and the firmware files themselves are found in that download.
