Teletek electronics SensoIRIS GAS Quick Start Manual

SensoIRIS GAS
GAS DETECTOR
Type: LPG/CH4
Teletek Electronics JSC
Address: 14A Srebarna Str,
1407 Sofia, Bulgaria

TECHNICAL DATA

Power supply
Power consumption
Protection against electric shock:
Power connection
Sensor type
Sensor lifetime
Detected gases
Alarm threshold
Indicators:
Normal operation
Alarm
Fault
Heating-up time
Working temperature
Humidity limits
Alarms sound level
Size
Weight
Enclosure material
Enclosure color
!

GENERAL INFORMATION

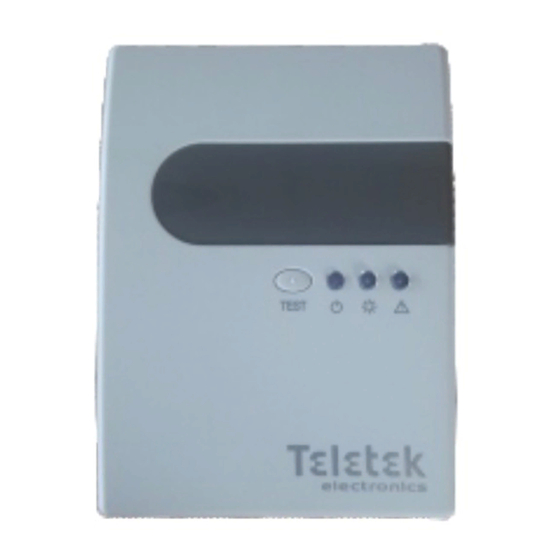

SensoIRIS GAS is addressable gas, LPG and CH4 (Methane), leakage detector.
When flammable gas is present in concentrations, higher than the dangerous,
threshold alarm level is activated. Red indicator lights on and buzzer is turned on.
SensoIRIS GAS features a button with the following functions:
and panel activation are disabled for 5min;
green, red and yellow LED's are activated. Panel and buzzer are activated, too.
24 VDC
After 6 seconds gas detector emits 2 short sounds and leaves "TEST" mode.
<3W
Gas detector has auto diagnostic function. It continuously checks sensor and
Class III
electronics status. If problem with sensor or electronics yellow LED is activated,
hard wired
green LED blinks and sound signal is activated.
catalytic
5 years

Choosing the mounting place

LPG/CH4 (Methane)
10% LEL
Green LED
Red LED/Sound
Yellow LED/Sound
30 sec
о
0 - 40 С
20 - 80% RH
>85 dB
130х96х38mm
0,200kg
ABS
White (RAL 9003)
ATTENTION: The SensoIRIS GAS detector must be connected only to fire panels,
which support TTE communication protocol!
This manual is subject to change without notice!
- If short pressed "SILENCING" mode is activated. Green LED flashes, buzzer
- If pressed for more than 5 seconds "TEST" mode is activated. In this case
Ceiling
Detector
0.3 - 1.0m
0.3 - 1.0m
Gas source:
Floor
gas oven
- The LPG is heavier than air
and the detector should be
placed at height from the
room floor between 0.3 -
1.0m.
- The CH4 (Methane) is
lighter than air and the
detector should be placed at
height from the room ceiling
between 0.3 - 1.0m.
- The distance from the
detector to the gas source
for the both mentioned
above cases should not
exceed 1.5m.
