Summary of Contents for Aquasana EQ-WELL-UV
- Page 1 Installation Instructions Whole House Well Water Filter EQ-WELL-UV Welcome to Aquasana whole house water filtration. Feel confident knowing that you now have clean, healthy water throughout your entire home for years to come. Installation must comply with state and local laws.
- Page 2 Contents Pre-filter unit Replace: EQ-304-20 EQ-PRE10.20WA EQ-WELL-UV Rhino Post-filter unit Replace: EQ-PFC.35 EQ-PRE10WA Install kit: UV filter Replace: AQ-UV-L330C AQ-UV-10C 2 support brackets 1 filter housing wrench 1 ball type shut off valve 6 nipples 3/4” x 3” 3 unions...
- Page 3 You can be confident your Aquasana Whole House system is providing clean, clear water to every tap in your home.

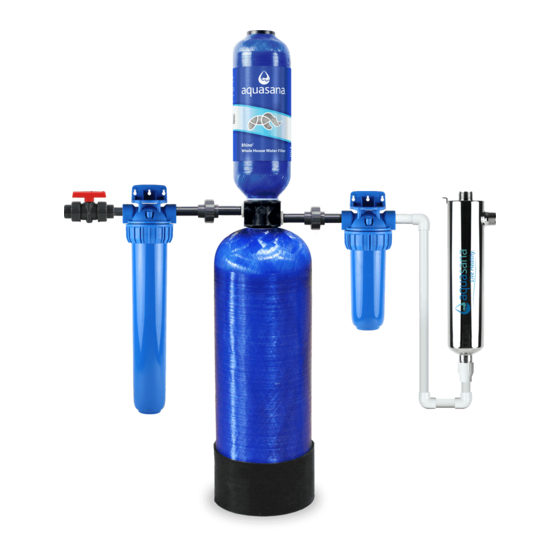

- Page 4 The Aquasana well water whole home filtration system is specifically designed to protect your home from contaminants that are commonly found in well water, including a UV filter to kill viruses and bacteria. Direction of flow Shut-off EQ-Well-R Professional Grade Install Kit (optional):...
- Page 5 Installation – check operating specifications before installing 1. KEEP THE UNIT IN AN UPRIGHT POSITION AT ALL TIMES. 2. Remove the red shipping caps from the inlet & outlet ports on the main housing. 3. Precondition the unit by “surge flushing”: It is very important that this system is flushed properly prior to final installation.
- Page 6 Direction of flow The control module must Position control be mounted higher than module to allow for a the UV system. drip loop on the cord. www.aquasana.com Attach mounting Attach brackets to the wall. ground wire Post-Filter Mount UV filter.
-
Page 7: Mounting Bracket And Plumbing
• This system must be installed in accordance with applicable city, country, and local plumbing codes. • Aquasana products are designed to provide years of trouble-free service if properly maintained. • Retain these instructions for future service or usage information. - Page 8 The water needs to be as pristine as possible to prevent harmful bugs “hiding” behind any particulates. Component four: UV disinfectant • Annual replacement of the bulb is a must. Contact Aquasana directly for the replacement bulb: part number AQ-UV-L330C. The steps to replace the bulb are included with the replacement bulb.
-
Page 9: Operating Specifications
Precautions • Aquasana recommends using only plastic fittings to connect the inlet and outlet ports of the UV well water filter system. • Do not install clear or translucent tubing on the outlet side of the UV filter. - Page 10 Warranty registration Warranty registration is not required for coverage under the Aquasana Limited Warranty and is not necessary for factory direct purchases made from www.aquasana.com. If you purchased from a retailer or dealer, please complete the online warranty registration form at www.aquasana.com/warranty. Once registered online, we will have a record of your purchase and you will not be required to produce a proof of purchase for a warranty claim.
-
Page 11: Specifications
Max capacity: 500,000 galllons (System capacity may vary depending on water conditions) This filter system is designed and tested for use with genuine Aquasana parts including replacement filters and all hardware. Use of parts from other manufacturers may result in loss of contaminant reduction performance, system damage or failure. - Page 12 Aquasana, Inc. For exclusive deals facebook.com/aquasana 6310 Midway Road twitter.com/aquasana Haltom City, Texas 76117 866.662.6885 USA 877.332.7873 Canada www.aquasana.com eqWellUVinstall_20190711...
