- Page 1 USER’S MANUAL MINI MINIJET RIONED Centaurusweg 45 5015 TC Tilburg P.O. BOX 5070 The Netherlands 5004 EB Tilburg Telephone 013-5479100 Telefax 013-5479104...
-
Page 2: Introduction
INTRODUCTION RIONED thanks you for your purchase of the RIONED drain and sewer-clearing machine. We rec- ommend that you read this manual thoroughly and see that the machine is handled and maintained in the proper manner. If your machine should give trouble and need servicing, when you want to order parts, or if you have any questions, contact your RIONED dealer. - Page 3 01/11...
-
Page 4: Table Of Contents
TABLE OF CONTENTS INTRODUCTION ....................... 2 Use..........................2 SECURITY........................... 6 Instruction indications in this manual................6 Descriptions security measures ................... 6 Personnel protection outfit ..................6 Warnings........................6 Personnel qualification and education................. 6 Danger that can occur if the security regulations aren’t observed ......6 Working safely ...................... - Page 5 01/11...
-
Page 6: Security
SECURITY Be responsible for other people when you are working with this machine. This manual contains instructions for fundamental conditions that must be followed by use and maintenance of this machine. That is why it is necessary that authorised and qualified personnel must read the user's manual and the user’s manual must always be available with the machine. -
Page 7: Working Safely
The limits that are written in chapter “Technical Specifications” and “Appendix” may never be overstep. If the Rioned machine does not work or give troubles, it is forbidden to work further with the ma- chine. Telephone your dealer or the technical department of your dealer RIONED. -
Page 8: Technical Data
TECHNICAL DATA General Description (symbol) Technical unit (SI unit) Colour Black Length HP hose 20 m Diameter HP hose NW8 (¼” outside, 3/8” wartel) Length 2e HP hose 10 m Diameter 2e HP hose NW5 (1/8” outside, 1/8” with ST30 nipple) Fill medium Water Maximum temperature medium... - Page 9 01/11...
-
Page 10: Construction

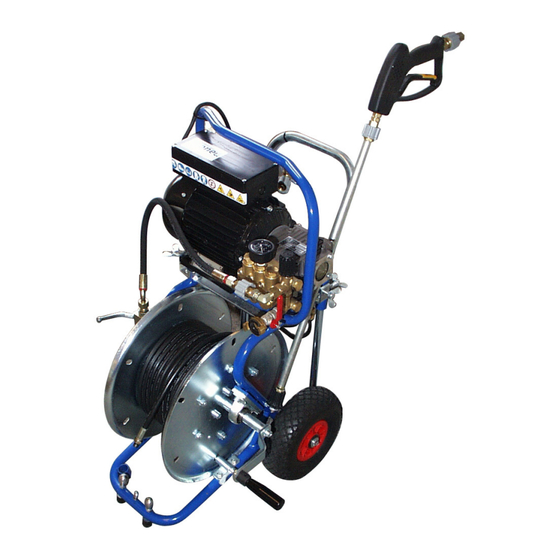

CONSTRUCTION This machine contains the following main parts: On/off switch High-pressure hose on reel Frame Reel crank High pressure pump Reel locking device Electric motor Connection nozzles Pressure gauge Spray gun with lance Pressure regulator/knob Wing bolt Engine/Pump combina- Connection water supply tion Connection High-pressure Wing bolt carrying handle... - Page 11 01/11...
- Page 12 01/11...
- Page 13 01/11...
-
Page 14: Control
Further, you must convince yourself that you understand this manual thoroughly. 5.1 Transport When you observe damage, during unpacking the machine, you have to notify Rioned. 5.2 Line up Put the machine on the right spot. -
Page 15: Unclogging A Drain
5.5 Unclogging a drain Attention! Ensure that the spraying nozzle does not leave the drain! Water under high-pressure may cause severe injuries! Screw the appropriate attachment onto the high-pressure hose. Put the high-pressure hose into the sewer. Turn the switch (1) , to position “on”. Turn the pressure regulator knob (6) clockwise until the required pressure reached, this pressure can be red on the pressure gauge (5). -
Page 16: Stop Engine
Completely unroll the high pressure hose and 12). If needed, attach the high pressure hose to the HP-connection (8). Push the switch on (1). Turn the pressure regulator knob (6) clockwise . Point your lance (14) to the surface that has to be cleaned. Pull the trigger of the spray-gun. - Page 17 01/11...
-
Page 18: Maintenance
6.4 Extensive peri- Have the high-pressure machine checked and maintained from time to time by the technical service odical maintenance of Rioned. In this way, long life and quality will be guaranteed. 6.5 Maintenance Interval scheme... - Page 19 01/11...
-
Page 20: Troubleshooting
Plug loose Attach the plug Main or secondary fuse blown Replace fuse and start motor. If problem repeats, contact Rioned +31 13 547 91 00 The high-pressure pump does not pro- Water supply closed/cut off Turn on supply/make supply duce the required pressure. - Page 21 01/11...
-
Page 22: Accessories
ACCESSORIES Delivered with this machine are several accessories: Two nozzles. First place the seal over the thread, than turn the nozzle (open) over the thread with a little grease, turn the nozzle hand tight. Than after declogging the drain, remove open nozzle and replace for the closed one to flush for a while. - Page 23 01/11...
-
Page 24: Appendix
RIOR B.V. / RIONED Of Conformity For Centaurusweg 45, Tilburg, The Netherlands, Machinery Herewith declares that: High pressure device MiniJet, Machine number: • is in compliance with the Machinery Directive (2006/42/EC); • is in conformity with the provisions of the following other EEC directives: 2004/108/E •... -
Page 25: Sales Managers
9.2 Contact EXPORT D.Maas / H. de Laat Area Sales ManagerRior B.V. / Rioned info@rioned.com www.rioned.com Centaurusweg 45 5015 TC Tilburg Tel.: +31 13-547 91 00 Fax: +31 13-547 91 04 01/11... -
Page 26: Index
........7 dealer ..........2 decalcify pressure valves .....18 decalcify suction valves ....18 responsability ......... 6 responsible ........6 rioned ........7 looking glasse ........ 6 ear protector .........14 emergency stop ....... 6 explosive environment ....2 sales managers ......25 mechanical failures ......6 export manager ......25... - Page 27 01/11...
