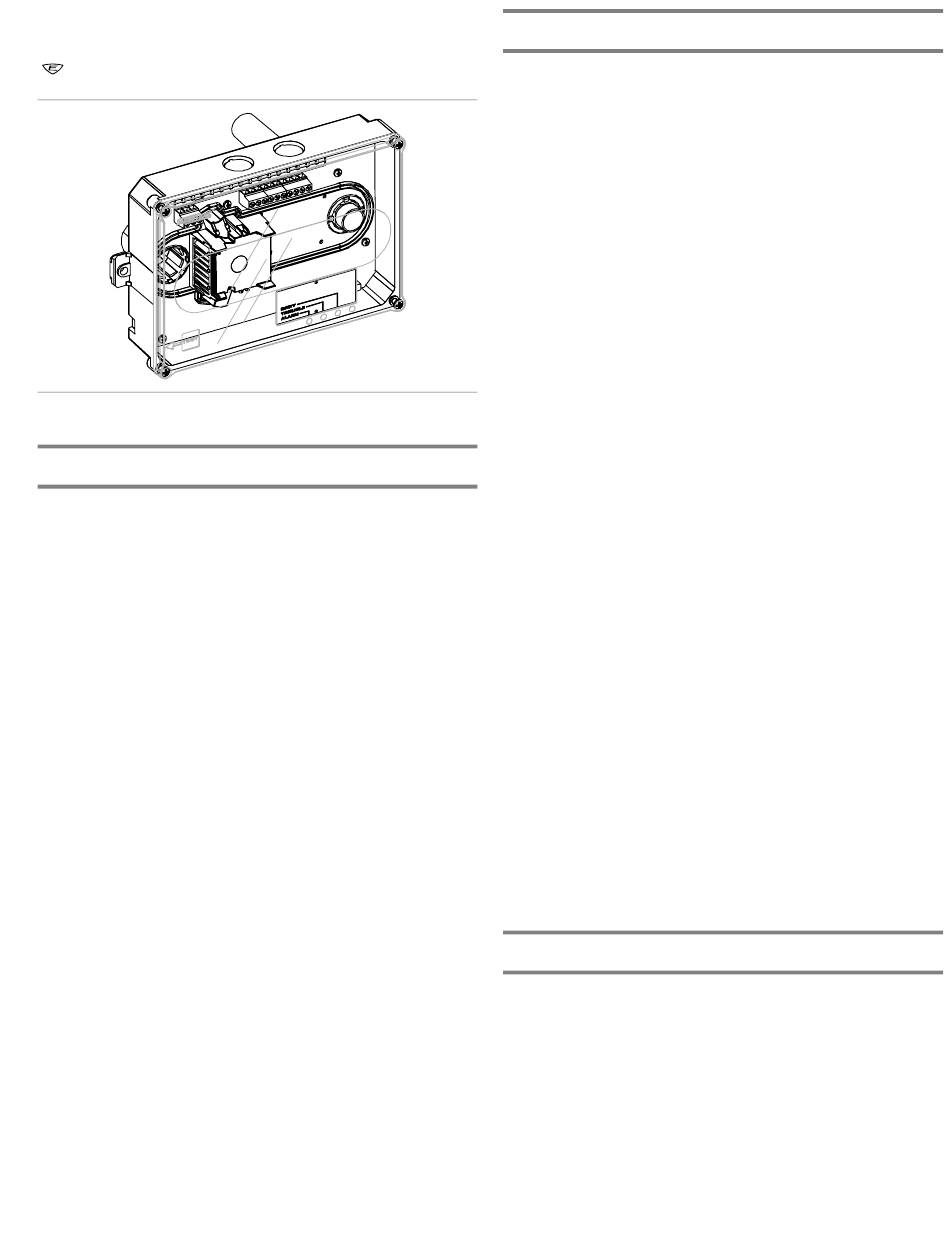

SuperDuct Conventional Two-Wire Duct
Smoke Detector
P/N 3100737 • Rev 1.0 • 06SEP05
Content
Introduction ............................................................................1
Related documents ..................................................................1
Duct smoke detector limitations ...............................................1
Product description ...............................................................1
Overview ..................................................................................1
Description ...............................................................................2
Features ...................................................................................2
Specifications ...........................................................................3
Accessories..............................................................................3
Operation ................................................................................4
Controls and indicators.............................................................4
Normal state.............................................................................4
Alarm state ...............................................................................4
Trouble state ............................................................................4
Installation ..............................................................................4
Installation guidelines ...............................................................4
Installation sequence................................................................5
Wiring .......................................................................................6
Maintenance and service.......................................................6
Recommended service schedule .............................................6
Testing the duct smoke detector ..............................................6
Troubleshooting .......................................................................6
Cleaning the duct smoke detector ............................................6
Technical Bulletin
SuperDuct Conventional Two-Wire Duct Smoke Detector

Introduction

This document provides technical information for the
SuperDuct Conventional Two-Wire Duct Smoke Detector
(referred to simply as duct smoke detector for the remainder of
this document.)
This document applies to the following duct smoke detector
models: ESD-2W and SD-2W.

Related documents

In addition to this document, important information regarding
the proper installation and maintenance of duct smoke
detectors is provided in the following standards:
•
NFPA 70 National Electrical Code
•
NFPA 72 National Fire Alarm Code
•
NFPA 90A Installation of Air Conditioning and
Ventilating Systems
•
UL 268A Smoke Detectors for Duct Applications
•
ULC 529 Smoke Detectors for Fire Alarm Systems
•
NEMA Guide for Proper Use of Smoke Detectors in Duct
Applications

Duct smoke detector limitations

SuperDuct duct smoke detectors will not operate without
electrical power.
SuperDuct duct smoke detectors will not operate as designed
outside of the listed electrical and environmental
specifications.
SuperDuct duct smoke detectors will not sense smoke unless
the ventilation system is operating and the sensor's cover is
properly installed.
SuperDuct duct smoke detectors may not operate as designed
unless installed in accordance with these instructions and all
applicable national and local codes as determined by the local
authority having jurisdiction.

Product description

Overview

The duct smoke detector is used to detect smoke in the
protected premises' HVAC system under extended
temperature ranges. It can be installed in self-contained
commercial rooftop HVAC systems where the HVAC
components (compressor, condensing unit, heating coils, etc.)
are enclosed in a single package to protect them from adverse
1
