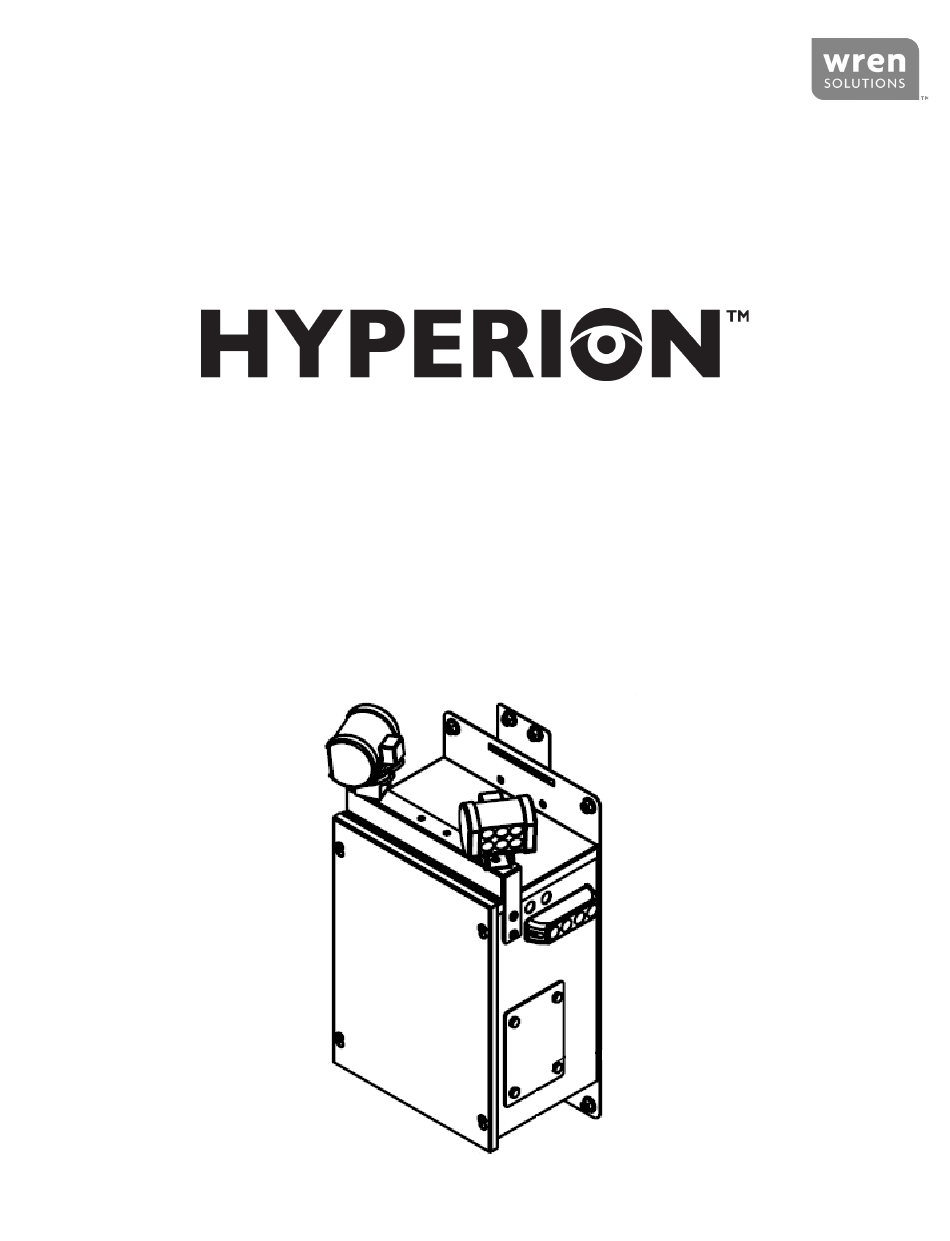

- Page 1 NSTALLATION UIDE YPERION ODULAR ECURITY NCLOSURE HYP-MSEWENR-W Hyperion Wireless MSE Installation Guide www.wrensolutions.com 7L781 Rev A 200428...
- Page 2 This document pertains to installation of the Hyperion Modular Security Enclosure (HYP-MSEWENR-W). Before installation, please RF Exposure for FCC familiarize yourself with this installation guide and review the Hyperion WARNING: To satisfy FCC RF exposure requirements for mobile User Guide to understand system configuration and setup.
-
Page 3: Tools And Accessories
• tight against the mounting plate. Turn the nut until finger tight then use a wrench to set the anchor by turning the nut three to four • full turns. Hyperion Wireless MSE Installation Guide www.wrensolutions.com 7L781 Rev A 200428... - Page 4 DENTIFY MOUNTING LOCATION Mounting Surface The Hyperion MSE should be mounted to a structurally solid surface. When selecting a mounting location, take care to ensure that there are no obstructions, especially solid metal surfaces in the immediate vicinity of the radio and antenna.
- Page 5 Refer to the masonry sleeve anchor instructions in this document for proper installation of anchors. Install the Anchors REP THE WALL FOR MOUNTING Hang the MSE on the Mounting hook. Mark all four anchor locations and the cable entry location. Hyperion Wireless MSE Installation Guide www.wrensolutions.com 7L781 Rev A 200428...
- Page 6 Install the anchors per the instructions provided in this document. Drill a 3/4” cable entry hole in the marked location. OUNT THE MSE Hang the MSE on the hanger and secure the device to all four installed anchors. Hyperion Wireless MSE Installation Guide www.wrensolutions.com 7L781 Rev A 200428...
-
Page 7: Power Supply
OUNT THE OWER UPPLY The Hyperion MSE power supply should be located in- side of the building near an AC110V outlet. Power Supply NOTE: • NLY USE THE POWER SUPPY PROVIDED WITH THE DEVICE • MPROPER CABLING COULD DAMAGE THE... - Page 8 ONNECT OWER Connect the power supply to AC110V. The device is now powered on and ready to be added to Hyperion. Refer to the Hyperion User Manual for setup details. Hyperion Wireless MSE Installation Guide www.wrensolutions.com 7L781 Rev A 200428...
