L.A. Baby Juvenile Products DRW-5 Quick Start Manual

Under drawer for window crib model 510 & 530

Advertisement

Quick Links

Under Drawer
For Window Crib Model #510 & 530
Model DRW-5 (LB)

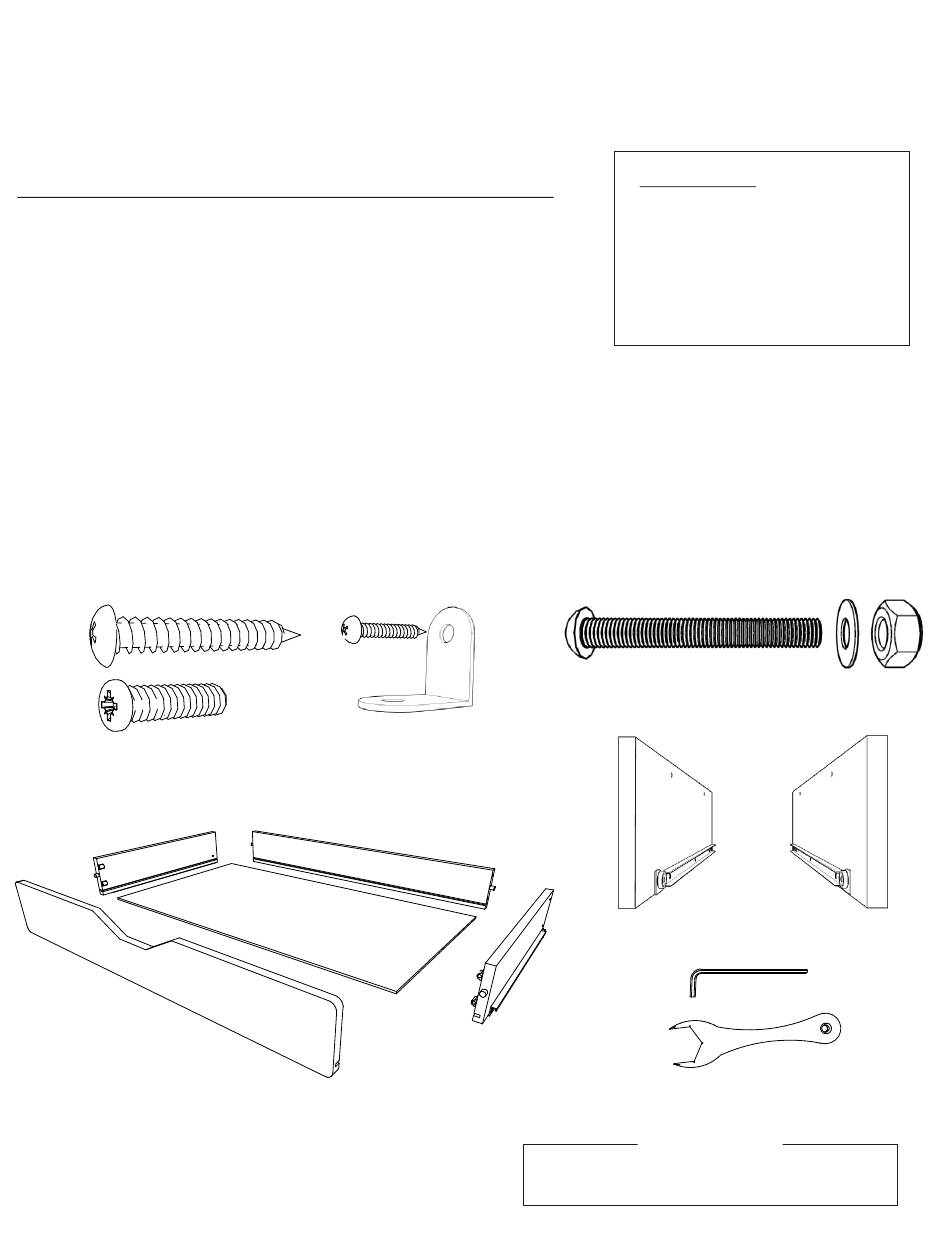

Parts List
A - Drawer back
B - Drawer side - right
C - Drawer side - left
D - Drawer bottom
E - Drawer front
F - Drawer track
(pre-installed)
G -
Drawer hanger - left
H - Drawer hanger - right
I - Case track
(pre-installed)
J - Wood screw
32 m/m
K - Machine bolt
20 m/m
L - Wood screw
13 m/m
M - L-Bracket
N - Machine bolt
45 m/m
O - Washer
P - Nut
Q - Allen wrench
R - Open end wrench
J
K
C
E
Pieces per Unit
1
1
1
1
1
2
1
1
2
4
4
4
2
4
4
4
1
1
L
M
A
D
Made In China
City of Industry, California 91744
Toll free customer service: 800-584-3094
e-mail: customerservice@lababyco.com
Care Instruction:
Your drawer may be cleaned,
using a damp cloth and ordinary
mild domestic detergent. Do not
use abrasives or bleach.
Air dry.
Tools required: Phillips head screw driver
Allen wrench
Open end wrench
B
G
F
Model: DRW-5
DATE OF MFG
Ins_DWR-5_032311
L.A. Baby Juvenile Products
16039 Loukelton Street
www.lababyco.com
(Included)
(Included)
N
O
I
Q
P
P
H
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the DRW-5 and is the answer not in the manual?

Questions and answers

Summary of Contents for L.A. Baby Juvenile Products DRW-5

  • Page 1 L.A. Baby Juvenile Products Under Drawer 16039 Loukelton Street City of Industry, California 91744 Toll free customer service: 800-584-3094 For Window Crib Model #510 & 530 e-mail: customerservice@lababyco.com www.lababyco.com Model DRW-5 (LB) Care Instruction: Parts List Pieces per Unit A - Drawer back...
  • Page 2 Drawer Assembly 1. Align dowels of drawer back panel(A) into pre-drilled holes on left drawer side panel (C) .Make certain that the slot on bottom of the panels lines up evenly. (Fig. 2. Insert 2 wood screws (J) into drilled holes on outside of left panel (C ). 3.
  • Page 3 Slide the drawer bottom (D) along the slotted edges of the left and right drawer sides to the slotted edge of the drawer back. (Fig. 3) Fig. 3 Bosses Attach the drawer face (E) by aligning the drill holes on the back of the face to the plastic “bosses”...
  • Page 4 Fig. 8 Attaching the Drawer Hangers We suggest you lay your crib up side down for easy assembly. Place the left (G) and right (H) Drawer Hangers with the tracks facing each other along the lower horizontal of the end panels as illustrated. (Fig. 8) Front of crib Align the four pre-drilled holes of the Drawer Hangers and the four pre-...
