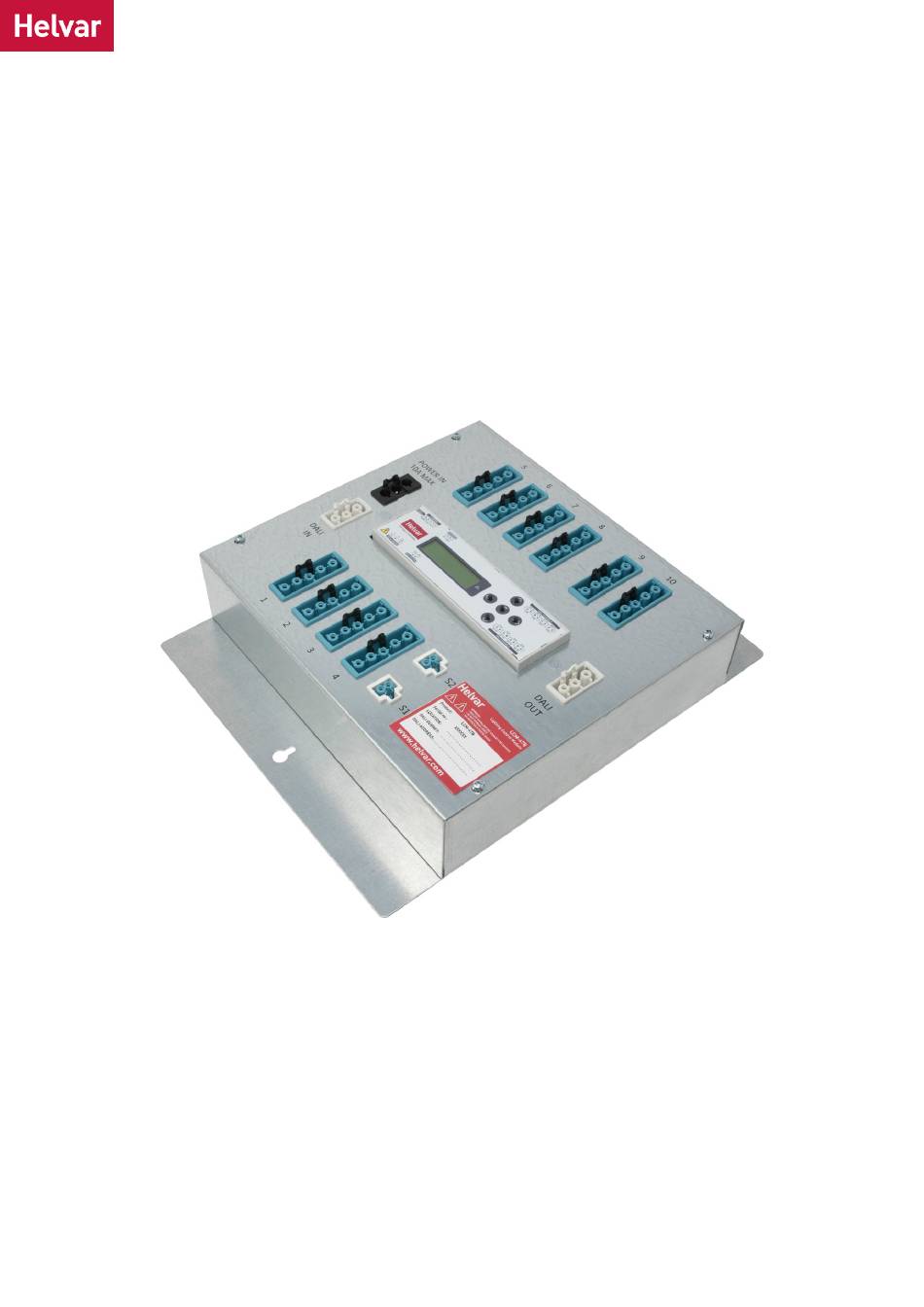

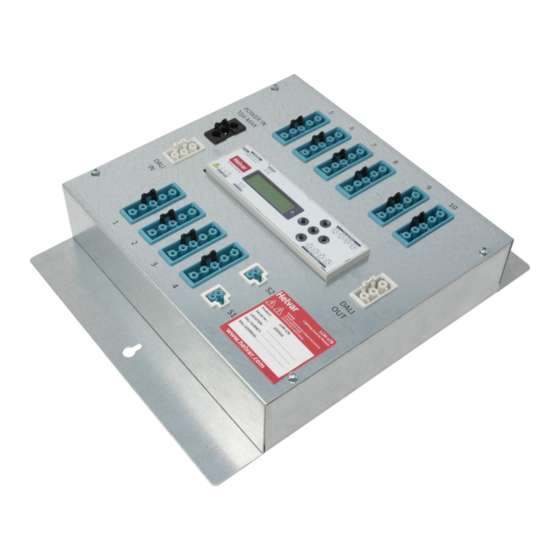

- Page 1 HELVAR INTELLIGENT LCM-478 INSTALLATION GUIDE Helvar LCM‐478 Installation Guide Helvar doc. no. 7860397, issue 01 Page 1 of 14 ...
-
Page 2: Table Of Contents
................ 11 ONNECTORS FOR PORTS TO LUMINAIRES AND DEVICES DALI DALI OUT ..................... 12 ONNECTORS FOR PORTS AND ‘POWER IN’ ........................ 13 ONNECTOR FOR PORT S2 ........................ 14 ONNECTORS FOR PORTS AND For more information: www.helvar.com/lcm , or use this QR code Helvar LCM‐478 Installation Guide Helvar doc. no. 7860397, issue 01 Page 2 of 14 ... -
Page 3: Check The System Diagram
CHECK THE SYSTEM DIAGRAM Install the LCMs according to the system diagram. The system diagram refers to the LCM serial numbers. The serial number is on the label on each LCM-478. Helvar LCM‐478 Installation Guide Helvar doc. no. 7860397, issue 01 Page 3 of 14 ... -
Page 4: Example System Diagram
EXAMPLE SYSTEM DIAGRAM This is an example of a system with five LCM-478s. Helvar LCM‐478 Installation Guide Helvar doc. no. 7860397, issue 01 Page 4 of 14 ... -
Page 5: Fix The Lcm Into Ceiling Or To A Wall
Important: install clear of obstructions Attach the Intelligent LCM downwards and clear of obstructions, such as ventilation shafts and wiring ducts. The Intelligent LCM and connectors should be visible and accessible to ensure easy connection and maintenance. Helvar LCM‐478 Installation Guide Helvar doc. no. 7860397, issue 01 Page 5 of 14 ... -
Page 6: Connect 'Power In' (Mains Power)
CONNECT ‘POWER IN’ (MAINS POWER) Connect mains power to the LCM-478. The LCD display will power on and show some text. Helvar LCM‐478 Installation Guide Helvar doc. no. 7860397, issue 01 Page 6 of 14 ... -
Page 7: Connect Dali Luminaires (Ports 1 To 10)
Connect the DALI luminaires to ports 1 to 8 and 9 and 10. Label the connectors with the stickers provided: if a connector is removed this makes it simple to reconnect it to the correct port. Helvar LCM‐478 Installation Guide Helvar doc. no. 7860397, issue 01 Page 7 of 14 ... -
Page 8: Connect Input Devices (E.g. Sensors And Button Panels)
CONNECT INPUT DEVICES (e.g. SENSORS and BUTTON PANELS) Connect the input devices (e.g. Helvar Sensor 321, or Helvar button panel 135) to ports S1 and S2. Helvar LCM‐478 Installation Guide Helvar doc. no. 7860397, issue 01 Page 8 of 14 ... -
Page 9: Connect Dali In And Dali Out
CONNECT DALI IN and DALI OUT Connect the DALI line according to the system diagram. Connect the DALI cable from the DALI subnet terminal of Helvar lighting router to ‘DALI IN’ on the first LCM-478 in the DALI subnet. - Page 10 2. Press and hold the ‘Up’ button. The DALI luminaires should dim up. To test the luminaires for ports 9 and 10, plug these luminaires into any of the ports 1 to 8 and confirm dimming operation as above. UP DOWN Helvar LCM‐478 Installation Guide Helvar doc. no. 7860397, issue 01 Page 10 of 14 ...
-
Page 11: Connectors For The Lcm-478, With Wiring Details
Connectors for ports 1 to 10: DALI luminaires and DALI devices Wieland male connector GST18i5 S1 ZR1 S PB02, 5 pole, male, flat version, screw connection, 250/400 V, 20 A, colour of coding: pastel blue, colour of housing: black Wieland part number: 92.954.4453.0 Helvar LCM‐478 Installation Guide Helvar doc. no. 7860397, issue 01 Page 11 of 14 ... -
Page 12: Connectors For Ports Dali In
Connectors for ports DALI IN and DALI OUT Wieland male connector with strain relief GST18I3S S1 ZR1 TB06, 3-pole, male, screw connection, 250 V, 20 A, colour of coding: turquoise blue, colour of housing: black Wieland part number: 92.932.4053.0 Helvar LCM‐478 Installation Guide Helvar doc. no. 7860397, issue 01 Page 12 of 14 ... - Page 13 Connector for port ‘POWER IN’ Wieland female connector with strain relief GST18I3S B1 ZR1 SW, 3-pole, female with screw connection, coding mains 250 V, 20 A, coding colour black, strain relief color black Wieland part number: 92.931.3053.1 Helvar LCM‐478 Installation Guide Helvar doc. no. 7860397, issue 01 Page 13 of 14 ...
- Page 14 Connectors for ports S1 and S2 Wieland male connector with strain relief GST15I2S S1 ZR1WW PB01, 2-pole, male, screw connection, 250V/6A, color of coding: pastel blue, color of housing: white Wieland part number: 91.922.3453.0 Helvar LCM‐478 Installation Guide Helvar doc. no. 7860397, issue 01 Page 14 of 14 ...
