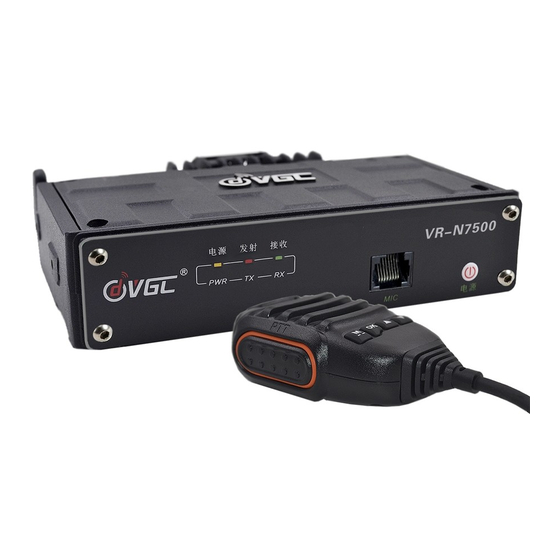

VGC VR-N7500 Fast Operate Manual

VR-N7500 Fast Operate Manual
Section I: How To Connect VR-N7500 With Cell-phone
1，For Android user
Scan the QR code to download the HT APP
or visit the website:
http://www.vgc.net.cn/download/22-en.html
For IOS user
Search 'BS HT' in APPLE store to download
2，Open the app, select-[BIND NEW DEVICE]. Turn-on the mobile radio, then press POWER key twice,
a 'BEEP' will be heard and red-green light flashing means the radio is now in pairing status
3，Select the scanned device then bind it
4 ，
Some mobile phone Bluetooth pairing requires authorization, so
select to confirm Bluetooth pairing can be paired successfully.

Hand microphone status description:

【M buttons】
Short press：Channel/Volume switch
【Up/Down button】
Short press：
Channel mode：
Volume mode：
Section II:How To Connect to Bluetooth Accessories?
1，Connect to Bluetooth PTT
Turn-on the mobile radio, then press【 POWER】 key twice, a 'BEEP' will be heard. Long press the
bluetooth PTT, red-green light flashing means the bluetooth PTT is now in pairing status
2，Connect to Bluetooth speaker mic
Turn-on the mobile radio, then press 【 POWER】 key twice, a 'BEEP' will be heard. Turn on the bluetooth
speaker mic, double press to enter pairing status.
Section III:How To Edit the frequency？
Turn on the APP,Long press the channel square,
then seclect【 Edit Channel】，When you edit the
completion channel parameters ,click 【 save】to
save the Channel Parameters.
Section Ⅳ: Frequency display
When the frequency setting is completed, make the phone horizontally display, and the frequency will
be displayed on the map interface (the arrow up means TX and the arrow down means RX)
Channel adjust
Volume adjust
MUST
【OK button】
Short press： Current channel prompts
Long press： Talk around function
Double press：
【PTT button】
Push to talk
check the phone menu,
Mute
