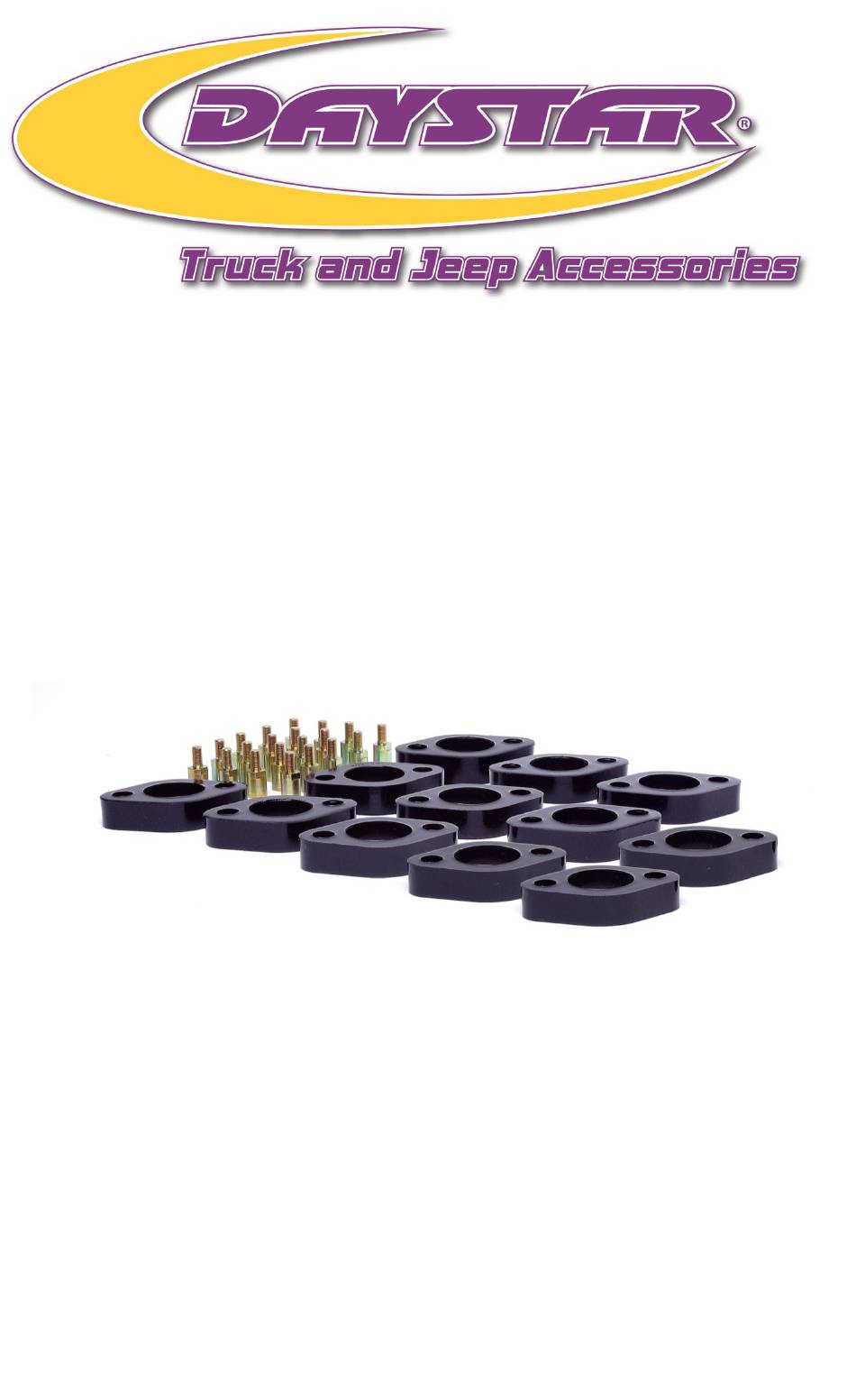

- Page 1 KJ04520BK 2007 and UP Jeep Wrangler JK Body Lift 2 Door and 4 Door Instruction Sheet: P11260-03 2013 Daystar Products International Inc.
- Page 2 Daystar® Comfort Ride kit. We are here to help if you have remaining technical questions after reading...

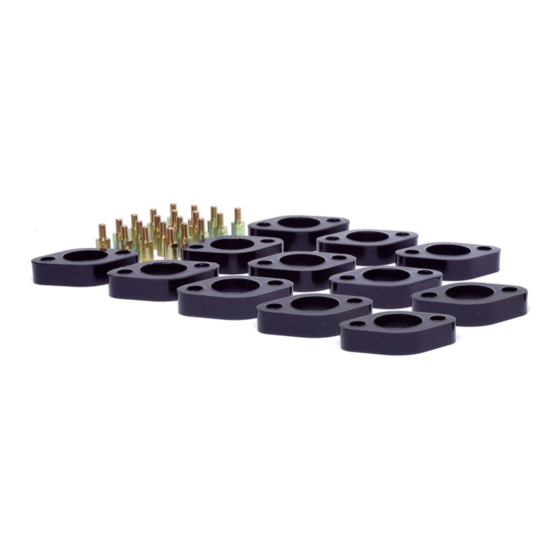

- Page 3 1/2” Ratchet 1/2” Socket Extension Phillips screw driver Torque wrench 2”X 4”X 12” jacking block 4”X 4”X 8” jacking block Part List Quantity Part Number Description M03763 Body lifts S11082 Stud extenders P11153 Thread lock P21138 Daystar Decal P10474 Warning Decal...
- Page 4 Then compare components & hardware to the bill of materi- als for completeness. If anything is missing/damaged, do not pro- ceed with the installation. Please, call Daystar Products and we will send you the missing of damaged components free of charge.
- Page 5 Place Jeep on a level ground. Open the hood and use a Phillips screw driver to twist the center of the push pin insert to release and remove the six push pin fasteners (1), release the lower clips (3) and separate the grille from the Jeep and disconnect the electrical connectors (4).
- Page 6 Slowly raise up the jeep with the jacking block between the jack and the tub of the jeep, about 4” off the body mounts and place a 4x6 jacking block between the frame and the jeep tub. Remove one mount at a time. Place thread lock on the stud extenders.( 2 at a time ) Using a 5/8 wrench in- stall the extenders on the body mount and tighten down.
- Page 7 10. Repeat steps 7 to 9 with the remainder of the mounts on this side. 11. After you have installed on one side remove the 4x6 jacking block and lower down the Jeep tub onto the body mounts and install the 2 nuts and 1 bolt per mount and had tighten down and move the floor jack over to the other side and repeat steps 5 threw 10.
- Page 8 14. Close the hood . 15. Check that all the bolts and nuts are tighten down to spec. 16. On 2010 and up JK you will need to cut 2 flat notches in the 2 rear body mount bolts as seen in photo so the washer will not hit the nuts. 17.
