Hobie 72020074 Manual

Adjustable h-rail rod holder

Adjustable H-Rail Rod Holder

Table of Contents

Do you have a question about the 72020074 and is the answer not in the manual?

Page 1 Adjustable H-Rail Rod Holder...

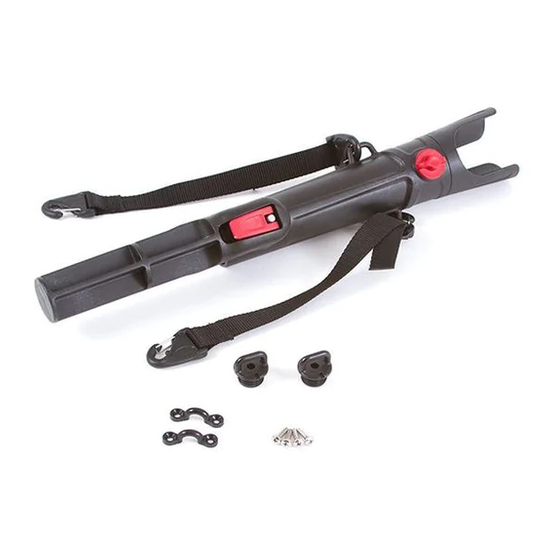

Page 3 Parts | 3 hobiecat.com 1. Adjustable H-Rail Rod Holder Adjustable Reel Holder Reel Holder Knob Leash Attachments Rod Tube Angle Adjustment Lever Gimble Pin H-Rail Mount...
Page 4 4 | Rod Holder Features Gimble Pin The adjustable rod holder assembly comes with a gimble pin installed at the base. You can remove the pin with a flat head screwdriver if you do not want to use this feature. Reel Holder The reel holder at the top can be removed to allow for different styles of...
Page 5 Rod Holder Features | 5 hobiecat.com Rod Tube Angle Adjustment The rod tube can be adjusted for optimal trolling angle or storage positions. To adjust the rod tube: Open the latch. Rotate the rod tube to your desired angle. Close the latch.
Page 6 6 | Rod Holder Features Rail Mounting Options The rod holder can be mounted on the H-rail in two configurations. Trolling Review the illustrations Configuration on how you can orient the rod holder. A couple things to note are: 1. The clamp is designed to slip under high load to prevent capsize or breakages.
