WARNING
Buyer/User assumes all responsability for safety and proper
use not in accordance with the directions and sately labels.
• High water flow
• Energy efficient
• Directional vortex impeller
• Thermally protected
• Easy to install and maintain
• Encapsulated pre-filter
• Fountain head kits included
• For freshwater enviroments
Advertisement
Table of Contents
Related Manuals for Commodity Axis ViaAqua Multi-Duty Pond Pump DP-5000
Summary of Contents for Commodity Axis ViaAqua Multi-Duty Pond Pump DP-5000

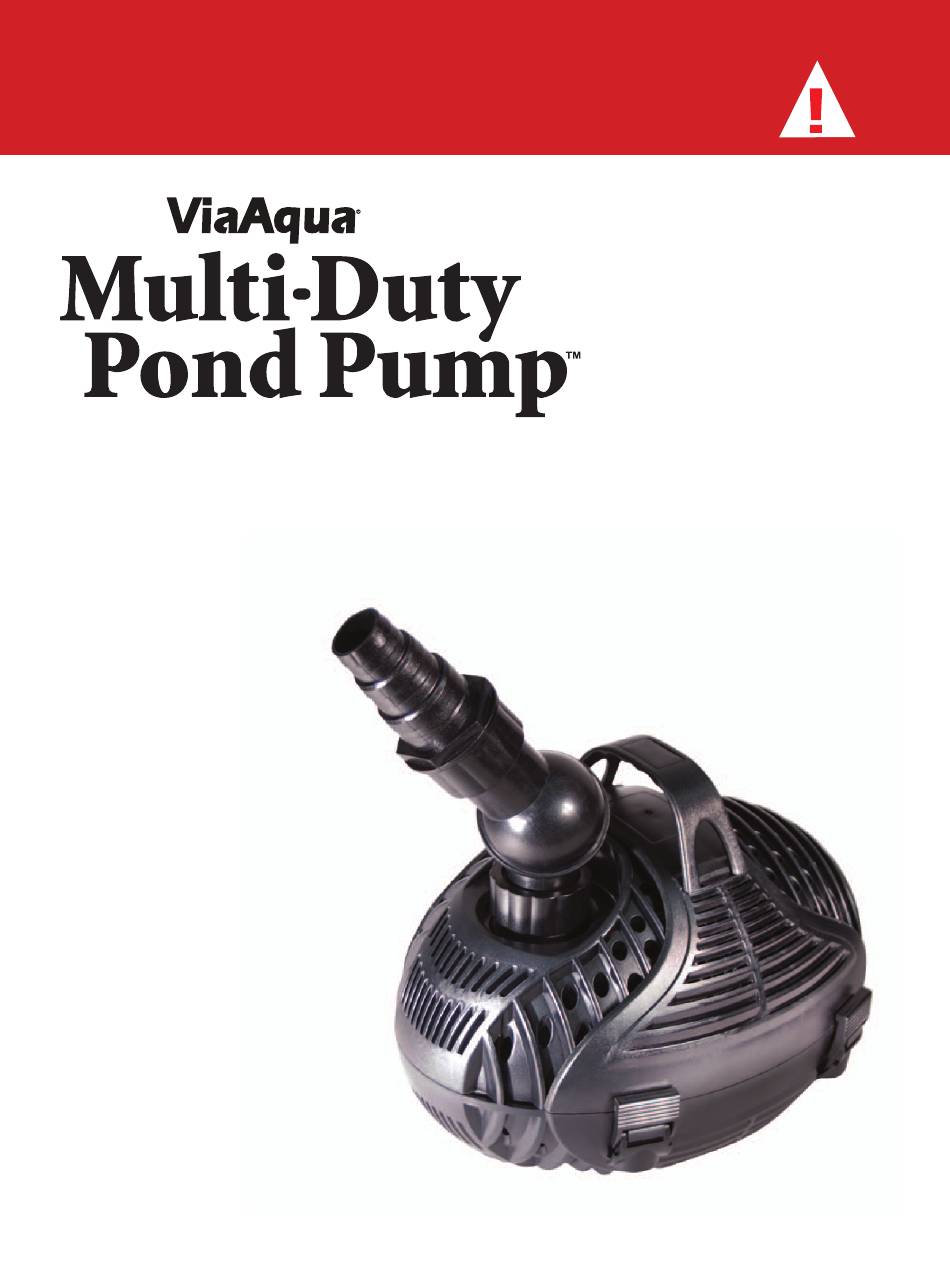

- Page 1 WARNING Buyer/User assumes all responsability for safety and proper use not in accordance with the directions and sately labels. • High water flow • Energy efficient • Directional vortex impeller • Thermally protected • Easy to install and maintain • Encapsulated pre-filter • Fountain head kits included • For freshwater enviroments...
- Page 2 MULTI-DUTY POND PUMP The ViaAqua ® Multi-Duty Pond Pump is a high performance garden water pump ideal for ponds, large fountains, waterfalls, streams and external filtration. It uses a large debris strainer that fully encapsulates the pump to prevent water flow blockage.
- Page 3 restricting the water flow. Consult with your local dealer or GFCI manufacture’s guidelines for the pump size needed for your ONLY specific application. 9. Do not reduce the input or output diameter of the pump. 10. Do not reduce the intake or output tubing size. 11.
- Page 4 PART LIST Locking pre-filter Main pre-filter Volute Impeller Motor C-clamp Barbed pipe adapter Universal elbow Coupler Water bell head Three tier head Uplift tubes (3) Valve and water diverter Diverter cap Barbed flexible adapter 1 1/4” threaded pump to uplift tubes adapter Fountain head coupler...
- Page 5 INSTALLATION SETUP A) SUBMERSED 1. Place pump in the desired location. If pump is placed in a pond, raise the pump off the bottom of the pond by a minimum of 6 inches. 2. Use Teflon tape to connect the universal elbow or coupler to the output of the pump. 3. Place the o-ring onto the barbed pipe adapter. Then, use the Teflon tape to hand tighten the barbed pipe adapter to the universal elbow or coupler.
- Page 6 MAINTENANCE If water decreases, it is a clear sign that debris is in the impeller or the pre-filter is clogged. It is the aquarist’s sole responsability to ensure the pump is maintained. Failure to properly maintain the pump will cause permanent damage to the pump. • Recommended routine maintenance: every 30 days. • Tools required: Philips screw driver. 1. Disconnect the pump from the GFCI (Ground Fault Circuit Interrupter) power supply prior to removing the pump from the water. 2. Release all four latches from the pre-filter. Rinse all the debris out of the pre-filter. 3.
- Page 7 You may send your returns or replacements by UPS if requiring a signature upon arrival. Any replaced unit will be warranted for the remaining time of the original warranty period. In no event shall any shipping charges be reimbursed. In no event will Commodity Axis, Inc.
- Page 8 *Affix a copy of your original purchase receipt here.Please mail warranty card and proof of purchase within 15 days of purchase to: Commodity Axis® Inc., 300 South Lewis Rd. Unit J. Camarillo CA 93012 IMPORTANT: Please make a copy of this warranty card and retain it for your records. Warranty policy is subject to change without notice.
