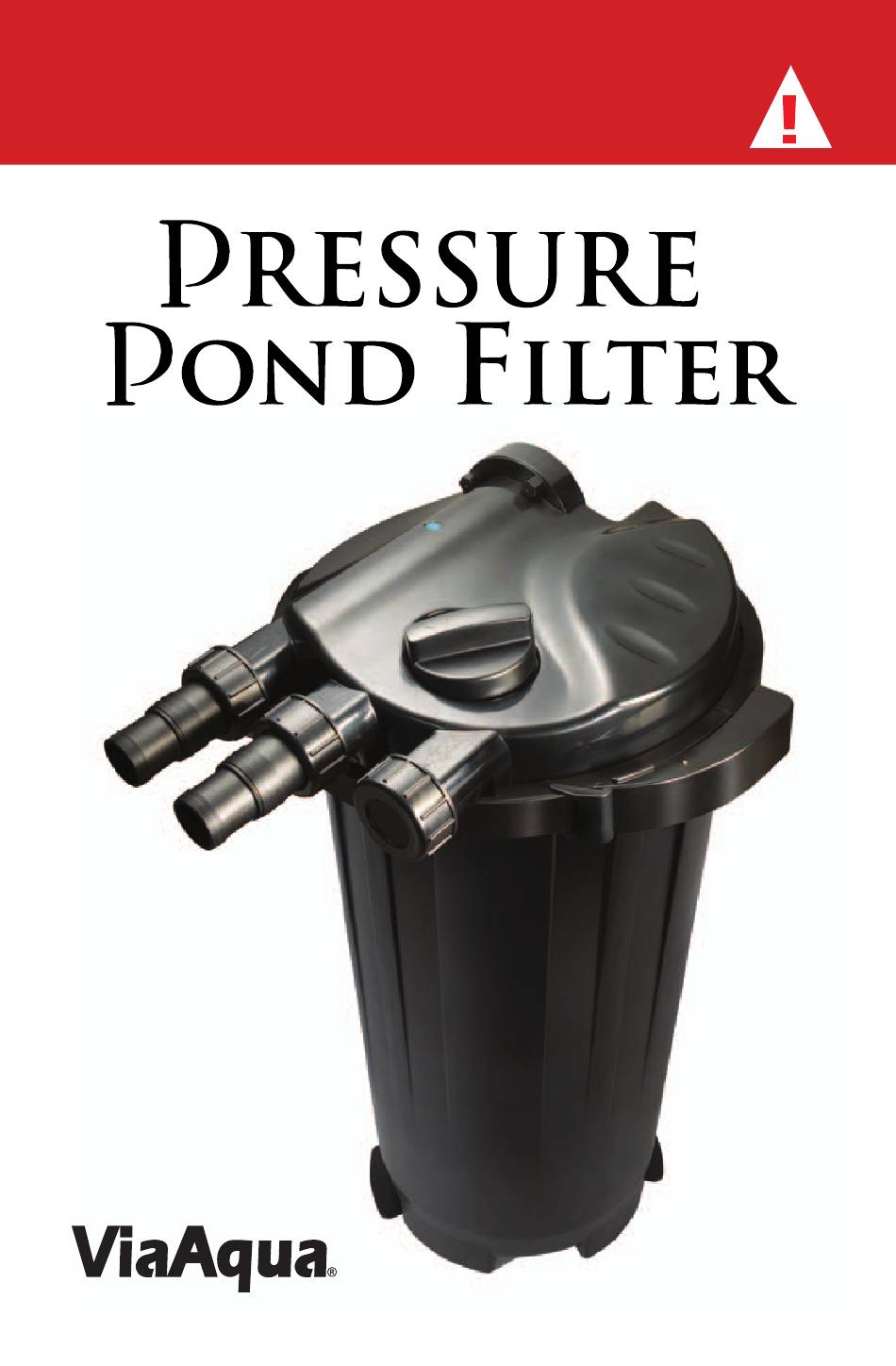

- Page 1 WARNING Buyer/User assumes all responsability for safety and proper use not in accordance with the directions and sately labels.
- Page 2 FEATURES PRESSURE POND FILTER • Easy to install and maintain • Complete filtering system • Terminator™ UVC Sterilizer (optional) for crystal clear water • Multiple types of bio foam filtering media for beneficial aerobic bac- teria • Reverse flow filtration •...
- Page 3 WARNING AND SAFEGUARD GFCI ONLY • Read and follow all instructions before using the ViaAqua Pressure Pond Filter to ensure proper ® use and application. • Use this product for its intended use only. • Do not operate the ViaAqua Pressure Pond ® Filter without water. • You must verify that the receptacle is clean and Drip free of water and moisture. Failure to do so may Loop cause electrical arching resulting in fire or electri- cal shock. • Prior to maintenance on any electrical appli- ance or pond, you must disconnect all electrical aquarium devices. • Routine maintenance is required to ensure the maximum performance and the longevity of the ViaAqua Pressure Pond Filter. (See mainte- ® nance guidelines.) • Never yank or pull the cord from the electrical outlet. • Do not operate if the plug or wire is damaged. • Verify that hands are dry prior to disconnecting the power.
-
Page 4: Water Circulation
WATER CIRCULATION: Regular Model (without UVC) First, pre-filter the water. Then, water enters the biological chamber that has long lasting ceramic media designed to create high amounts of surface area for beneficial bacteria to cultivate and breakdown organics. Multiple types of bio foam mechanically and biologically aid in the removal and biological breakdown of organics. Each level of the bio foam filtration features a built-in bypass route that will redirect water if the bio foam becomes clogged. Model with Terminator UVC Sterilizer ™ Designed for maximum efficiency. Water enters the Terminator UVC ™ Sterilizer for permanent control of single celled algae. The efficient reverse flow quad-action filtration system filters the water biologically and mechanically. The water is first pre-filtered. Then, water enters the biological chamber that has long lasting ceramic media designed to create high amounts of surface area for beneficial bacteria to cultivate and breakdown organics. Multiple types of bio foam mechanically and biologically aid in the removal and biological breakdown of organics. Each level of the bio foam filtration features a built-in bypass route that will redirect water if the bio foam becomes clogged. BACKWASH: EF-4000 / EF-4000 UVC EF-4000 UVC The integrated backwash system is built into the top of the filter. -
Page 5: Part List
PART LIST: 1. Intake Intake & Output tube 2. Ouput Fine bio foam 3. Backwash/sludge removal 10. Medium bio foam 4. Backwash knob 11. Coarse bio foam 5. Terminator UVC Sterilizer (Optional. 12. Intake & output flares ™ See detail on page 11) 13. -
Page 6: Pre-Installation Setup
PRE-INSTALLATION SETUP LOCATION FOR THE POND FILTER • Place the pressure pond filter level on a firm base. 3 ft. • The location needs to be free from flooding and well ventilated. • Protect the filter from direct sunlight and moisture. •... - Page 7 CONNECTION Requires either 1.25” ID or 1.5” ID tubing. It is important to choose the largest diameter ID tubing possible. Tubing and hose clamps are not included. 1. Connect the barbed fitting to the filter’s intake and output. 2. Contact Tubing to the Pressure Pond Filter: •...
-
Page 8: Installation & Setup
INSTALLATION SETUP PRE-OPERATION PRECAUTION • Verify that the O-ring is properly installed. • Double check that all tubing is secured with a hose clamp. Make sure there are no kinks in the tubing. • If using a unit with a UVC sterilizer, install O-Ring the PL compact UVC bulb according to the directions. • Ensure the lid is secured properly. • Ensure the flow control knob arrow is pointing toward the output port. • Place the cap of the ackwash/drain Point knob to discharge port back on. the output port TYPICAL OPERATION For proper filtration, operate the pressure pond filter 24 hours a day, year round. 1. S tart the ViaAqua pond ® pump. 2. V erify that all seals and connections are not leaking. - Page 9 3. U VC unit: * Plug the UVC sterilizer ballast into a GFCI outlet only. * Blue indicator light is on when the UVC unit is working. BACKWASH OPERATION Backwashing filter should be performed at least once a week. A filter installed on an exiting pond will require more frequent cleaning. The filter needs to be cleaned when: - Dirty/cloudy water is in the filter. - Reduced water flow.
- Page 10 ASSEMBLY OF THE MEDIA AND FILTER BODY Follow these guidelines in order to reassemble the unit when the filtering media and/or lid is removed for maintenance. 1. I nsert the coarse prefilter at the bottom of the filter body. 2. V erify that the ceramic bio chamber lid is locked into place by rotating clockwise so that the intake and output holes are completely open (see diagram 2). 3. U sing the arrow on the ceramic chamber strainer lid, align the arrow with tab/key on the brim of the filter body and insert the ceramic bio...
- Page 11 SPECIFICATIONS OF THE PRESSURE POND FILTER ID Pipe Recommended Filtering Filter UPC # Model Size Pump Size watt Capacity Height 0069037 Required EF-3000 29529 700-1300 GPH 15.5 L 14.25 in. EF-3000 UVC 29536 EF-4000 29543 1300-2100 GPH 21.5 L 18.25 in. EF-4000 UVC 29550 1.25 in EF-5000 29567 1300-3000 GPH 27.5 L 22.25 in. 1.5 in EF-5000 UVC 29574 EF-6000...
-
Page 12: Maintenance
MAINTENANCE FILTER When backwashing, if the filter does not produce expected results, it is necessary to clean or replace foam media. This should be performed at least once a season. However, this is not a rule for pond and outdoor environments vary thus more frequent cleaning may be required. • Unplug the Terminator™ UVC Sterilizer. • Turn the pond pump off. • Disconnect the barbed fitting from the filter. • Flip out safety lock and remove lid retainer clamp. • Remove the lid of the filter. Handle with care. The UVC bulb and quartz sleeve is made of glass. • Remove the intake and output flares. (See Part List on page 3). • Remove and rinse foam pads. Replace them if necessary. • Remove the bio-chamber and rinse well with pond water only. Biological media beneficial bacteria will be killed if tap water is used to rinse. • Remove and rinse pre-filter foam pads. Replace them if necessary. • Rinse and clean the filter body. • Place the filtering media back in their original locations. Replace intake and output flares. • Replace o-ring and verify that it is clean. We recommend using a small amount of silicone lubricant on the o-ring to ensure a proper seal. • Secure lid with lid retainer clamp. The lid retainer clamp must be aligned so that the notches in the top of the clamp fit under the intake and discharge port. • Filter is ready to use. See installation instructions. UVC BULB • Follow all the safeguards and warnings of the manufacture. - Page 13 • The UVC bulb needs to be replaced every 8,000 to 9,000 hours. This will ensure optimum performance. • The efficiency of the Terminator UVC Sterilizer depends on the ™ duration the UV light is in contact with water. Thus the rate of water flow, not the way the water travels, will relate to the efficiency of the UVC sterilizer. UVC BULB REPLACEMENT • Unscrew the threaded UVC bulb cap on the end of the UVC sterilizer. Once unscrewed, the inside of the cap will reveal the UVC bulb socket. • Remove the UVC bulb from the box. Important: Do not touch the quartz area of the bulb. If needed use a clean cloth to handle the bulb. • Align the pins with the holes in the bulb socket. Press the bulb directly into the holes in the bulb socket. Avoid all angles, failure to do so may cause permanent damage to the bulb and/or the bulb socket. • Screw cap back onto the UVC sterilizer. Lid and Bulb Socket UVC PL Bulb Quartz Sleeve Reaction Chamber...
-
Page 14: Limited Warranty
REPLACEMENT PART Part UPC # Description For Pond Filter Model Number 0069037 EF-3000/ EF-3000 UVC EF-4000/ EF-4000 UVC Fine bio foam (2 in.) 2/bag 2975 8 EF-5000/ EF-5000 UVC EF-6000/ EF-6000 UVC EF-4000/ EF-4000 UVC Medium bio foam (1.5 in.) 2/bag 2976 5 EF-5000/ EF-5000 UVC Medium bio foam(2.25 in.) 2/bag 2977 2 EF-6000/ EF-6000 UVC EF-3000/ EF-3000 UVC EF-4000/ EF-4000 UVC Coarse bio foam (2.75 in.) 2/bag 2978 9 EF-5000/ EF-5000 UVC EF-6000/ EF-6000 UVC EF-3000/ EF-3000 UVC Coarse prefilter (2.75 in.) 2/bag EF-4000/ EF-4000 UVC 2979 6 EF-5000/ EF-5000 UVC Coarse prefilter (4 in.) 2/bag EF-6000/ EF-6000 UVC 2980 2 UVC bulb 5 watt EF-3000 UVC 2066 3 EF-4000 UVC UVC bulb 9 watt EF-5000 UVC 2367 1 EF-6000 UVC... -
Page 15: Registration Card
*Affix a copy of your original purchase receipt here.Please mail warranty card and proof of purchase within 15 days of purchase to: Commodity Axis® Inc., 300 South Lewis Rd. Unit J. Camarillo CA 93012 IMPORTANT: Please make a copy of this warranty card and retain it for your records. Warranty policy is subject to change without notice.
