Instruktionsbok
Vinkelslip
Code no. 19694 - 1108
Manual

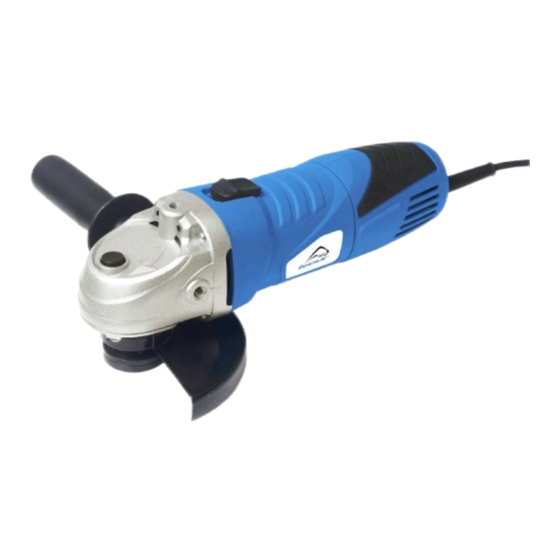

Angle grinder
BAG - 900

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BAG-900 and is the answer not in the manual?

Questions and answers

Related Manuals for Ferax BAG-900

Summary of Contents for Ferax BAG-900

  • Page 1 Instruktionsbok Manual Vinkelslip Angle grinder BAG - 900 Code no. 19694 - 1108...

  • Page 2: Table Of Contents

    ENGLISH and make certain that the machine functions correctly. Keep this operator’s guide and other Original instructions enclosed documentation with the machine. CONTENTS The angle grinder is suitable for non-professio- Introduction ..........45 nal use for cutting or separating materials. Any Technical specifications .......45 other use is strictly forbidden. Contents of packing ......46 Features ..........46 2.

  • Page 3: Contents Of Packing

    3. CONTENTS OF PACKING 1 Angle grinder Keep bystanders away 1 Side handle 1 Spanner 1 Instruction manual 1 Safety instructions Wear ear and eye protection Check the machine, loose parts and accessories for transport damage. 4. FEATURES Wear protective gloves 5.1 Safety warnings common for grin- ding or abrasive cutting-off opera- tions...

  • Page 4: Kickback And Related Warnings

    with arbour holes that do not match the or snagged and your hand or arm may be mounting hardware of the power tool will run pulled into the spinning accessory. out of balance, vibrate excessively and may • Never lay the power tool down until the cause loss of control.

  • Page 5: Safety Warnings Specific For Grinding And Abrasive Cutting-Off Operations

    handle, if provided, for maximum control wheel thus reducing the possibility of wheel over kickback or torque reaction during start- breakage. Flanges for cut-off wheels may be up. The operator can control torque reactions different from grinding wheel flanges. or kickback forces, if proper precautions are • Do not use worn down wheels from larger taken.

  • Page 6: Special Safety Instructions

    their own weight. Supports must be placed danger or that they contact highly flammable under the workpiece near the line of cut and substances. near the edge of the workpiece on both sides • Make sure that the workpiece is sufficiently of the wheel. supported or clamped. Keep your hands away • Use extra caution when making a “pocket from the surface to be cut.

  • Page 7: Assembly

    6.3 Mounting a grinding disc (Fig. 2) Always check that the power supply corresponds to the voltage on the rating plate. Your machine is double insulated; therefore no earthwire is required. Replacing cables or plugs Immediately throw away old cables or plugs when they have been replaced by new ones. It is dangerous to insert the plug of a loose cable in the wall outlet.

  • Page 8: Mounting Grinding Discs And Roughing Discs

    6.4 Mounting grinding discs and roug- Fig. 4 and 5 show how to mount the flange (10) hing discs when using thick (4-8 mm) and thin (2,5-4 mm) discs. The following grinding discs can be used with this grinder. • For deburring: grooved, fibreglass reinforced type 27.

  • Page 9: Cutting

    7.2 Cutting (Fig. 6) Never use the spindle key to stop the motor turning. Never use the machine to grind mag- nesium workpieces. 7.4 Carbon brush indicator (Fig. 1) When the carbon brushes are worn this indi- cator will light up. The cabon brushes need to the be replaced by the manufacturer’s custo- mer service department or equally qualified persons.

  • Page 10: Cleaning

    Excessive sparking or elektromotor runs irregular • There’s dirt inside the motor or the carbon brushes are worn. • Replace the carbon brushes or bring the machine to a specialized repair centre. Repairs and servicing should only be carried out by a qualified technician or service firm.
  • Page 11 BAG - 900 DIAGRAM...
  • Page 12 BAG - 900 PART LIST No. Description Specification Qty No. Description Specification Qty Special spanner Rotor Pressure plate Bearing Grinding wheel Bearing sheath Pressure plate Wind screen Screw M5 × 20 Cross screw ST4 × 75 Guard Stator Nameplate Main spindle 35 Pushbutton Woodruff key 3 ×...
  • Page 13 Angle grinder BAG - 900 ARETE SUPPLIES S.L. www.aretesupplies.com...
