Chassis-Earthing
Step 4: Disconnection
Ensure the 220-240V AC mains switch is turned off and the charg-
er is disconnected from the 220-240V AC mains power.
Battery out of vehicle
Remove the BLACK lead (battery clip) from the battery.
Remove the RED lead (battery clip) from battery.
Battery in vehicle
Remove the chassis connection.
Remove the battery terminal connection.
48

Mounting Instructions

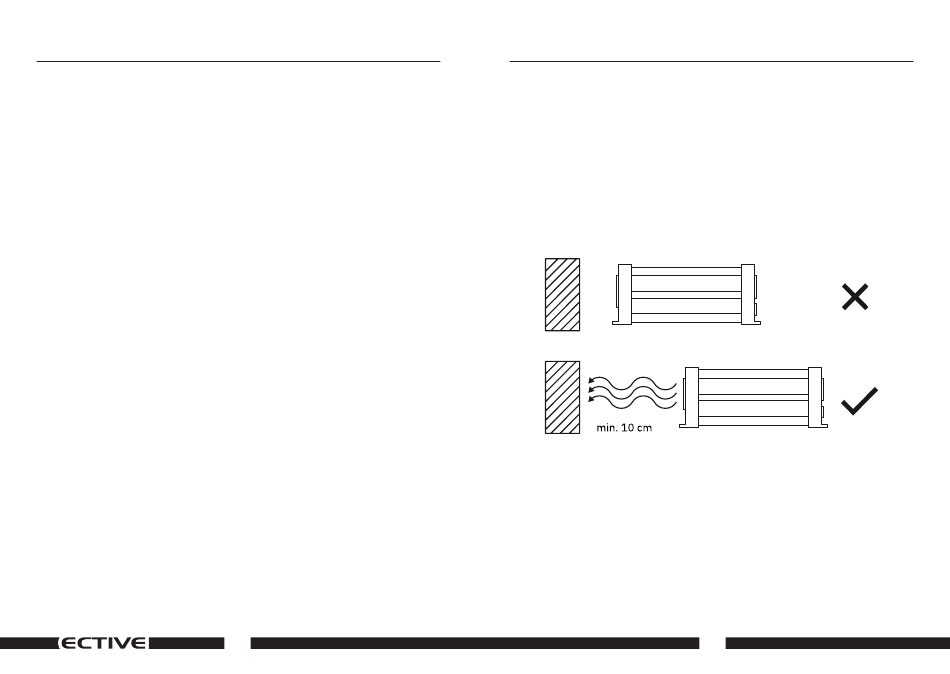

8 stage chargers are designed for indoor, out of weather
use only. Ensure that both charger and battery are in a well-
ventilated space during charging. The battery charger end
plates include a mounting flange for easy mounting. If per-
manently fixed, the charger should be mounted to a suit-
able horizontal or vertical panel, with at least 10 cm clearance
from the end plates to provide adequate ventilation for the
cooling fan.
