PCOOL - Installation - UMC-750 - AD0322
Introduction
PCOOL - Installation - UMC-750
AD0322
Applies to machines built from: May, 2011
This procedure tells you how to install the
Programmable Coolant Nozzle (PCOOL) on a
UMC-750.
This document applies to:
Page 1 of 4 pages
LAST UPDATED: 01/08/2020
• 93-1000175 PCOOL UMC750 PRE
REBOOT
• 93-2584 PCOOL ASSY FIELD INSTALL
UMC-750
Advertisement
Table of Contents
Related Manuals for Haas PCOOL
Summary of Contents for Haas PCOOL

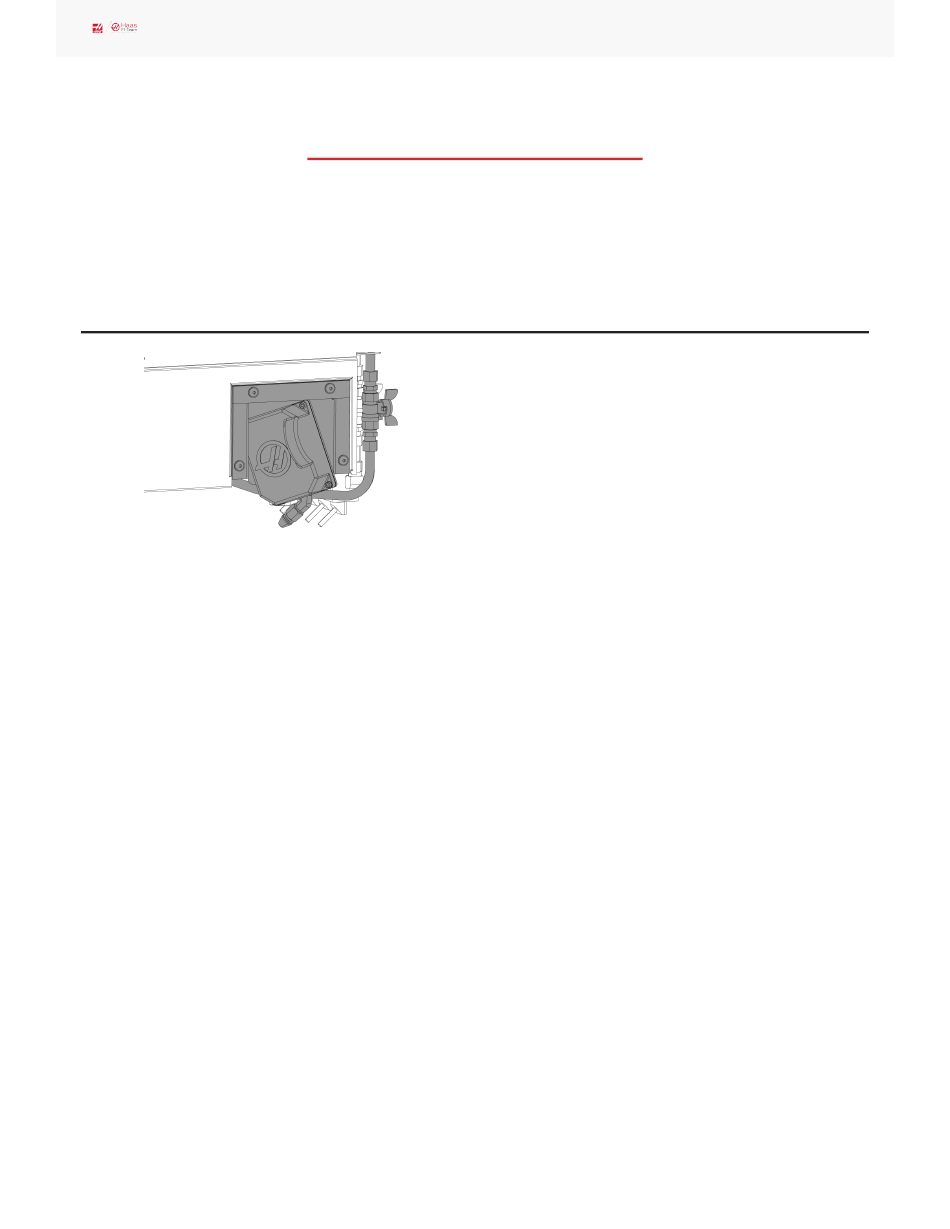

- Page 1 PCOOL - Installation - UMC-750 - AD0322 LAST UPDATED: 01/08/2020 PCOOL - Installation - UMC-750 AD0322 Applies to machines built from: May, 2011 Introduction This procedure tells you how to install the Programmable Coolant Nozzle (PCOOL) on a UMC-750. This document applies to: •...
- Page 2 PCOOL - Installation - UMC-750 - AD0322 Installation Page 2 of 4 pages...
- Page 3 Remove the PCOOL mount cover from the UMC-750. Connect the PCOOL M12 CABLE [C] to the PCOOL and the junction box near the top of the spindle. Install the CABLE CLAMP [R]. Use the clamp and zip-ties to put the cable in the correct position.
- Page 4 PCOOL - Installation - UMC-750 - AD0322 Use these parts to install the PCOOL TUBE 2 [I]: 1. PIPE CLAMPS [S] 2. 1/4 WASHER [G] 3. SHCS 1/4-20 X 1 1/2 [D] Connect the PCOOL TUBE 2 [I] onto the fittings [M] and [O].
