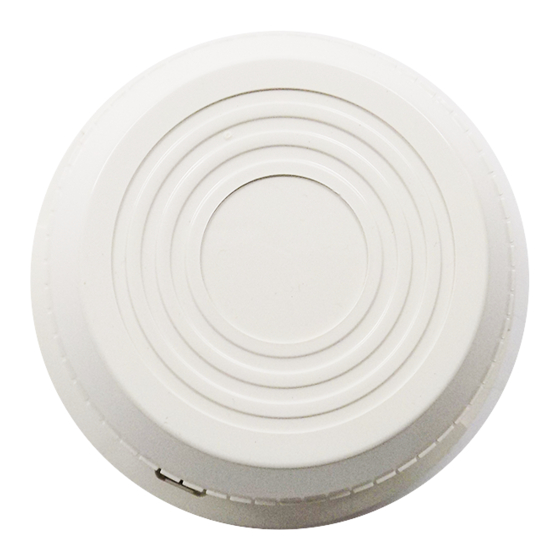

Plug-in intelligent photoelectronic sensors with communications

Advertisement

Quick Links

查询2551HR供应商
INSTALLATION AND MAINTENANCE INSTRUCTIONS
2551HR Plug-in Intelligent
Photoelectronic Sensors
with Communications
Specifications
Diameter:
Height:
Weight:
Installation Temperature Range
Installation Humidity Range:
Mounting:
Maximum Air Velocity:
Voltage Range:
Standby Current:
LED Current:
Before Installing
Please thoroughly read the system wiring and installation
manual, which provides detailed information on sensor
spacing, placement, zoning, and special applications. Cop-
ies of these manuals are available from System Sensor.
NOTICE: This manual should be left with the owner/user
of this equipment.
IMPORTANT: These detectors must be tested and main-
tained regularly following NFPA 72 requirements. These
detectors should be cleaned at least once a year.
General Description
The model 2551HR photoelectronic sensors utilize a state-
of-the-art, optical sensing chamber. These sensors are de-
signed for use with duct housings DH500 and DH500AC/
DC only, and to be used with compatible control panels
only. Connect detectors only to compatible control units.
(For installation in Canada, refer to CAN/ULC-S524-M86,
Standard for the Installation of Fire Alarm Systems and CEC
Part 1, Sec. 32.)
Two LEDs on each sensor light to provide a local 360° vis-
ibility of the sensor indication. The LEDs can be latched
ON by code command from the panel for an alarm indica-
tion. The LEDs can also be unlatched to the normal condi-
tion by code command. Remote LED annunciator
6.1 inches (15.5 cm) installed in B501B
4.0 inches (10.2 cm) installed in B501
3.2 inches (8.1 cm)
Add 0.5 inches (1.3 cm) for thermal models
9.6 ounces (272 g)
2551: 32° to 120° F (0° to 49° C)
2551T: 32° to 100° F (0° to 38° C)
10% to 93% Relative Humidity
B501B flanged base
B501 flangeless base
B501 with RMK400 recessed mounting kit
3000 Ft./Min. (15 m/S)
15 to 32 Volts DC Peak
230 µ A @ 24 VDC
6.5 mA @ 24 VDC
capability is available as an optional accessory (part no.
RA400Z).
Wiring Guide
Refer to the installation instructions for the particular plug-
in base being used: 1) for the B501B base (D550-01-01); 2)
for the B501 base (D550-02-00); 3) for the RMK400 used
with the B501 base (D450-07-00). Bases are provided with
screw terminals for power, ground, and remote annunciator
connections (see Figure 1).
NOTE: All wiring must conform to applicable local codes,
NOTE: Verify that all sensor bases are installed and that
Remove power from the loop before installing sensors.
1. Install sensors:
捷多邦,专业PCB打样工厂,24小时加急出货
3825 Ohio Avenue, St. Charles, Illinois 60174
ordinances, and regulations.
the wiring polarity is correct at each base.
WARNING
a. Verify that the sensor type matches the type written
on the label on the base.
b. Set the sensor to a desired address and then write the
address on the label on the base.
c. Place the sensor into the sensor base.
A Division of Pittway
1-800-SENSOR2, FAX: 630-377-6495
