Sealey AM20.V3 Instructions

thank you for purchasing a sealey product. Manufactured to a high standard, this product will, if used according to these instructions,
and properly maintained, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS. USE
THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR
PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY. KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.

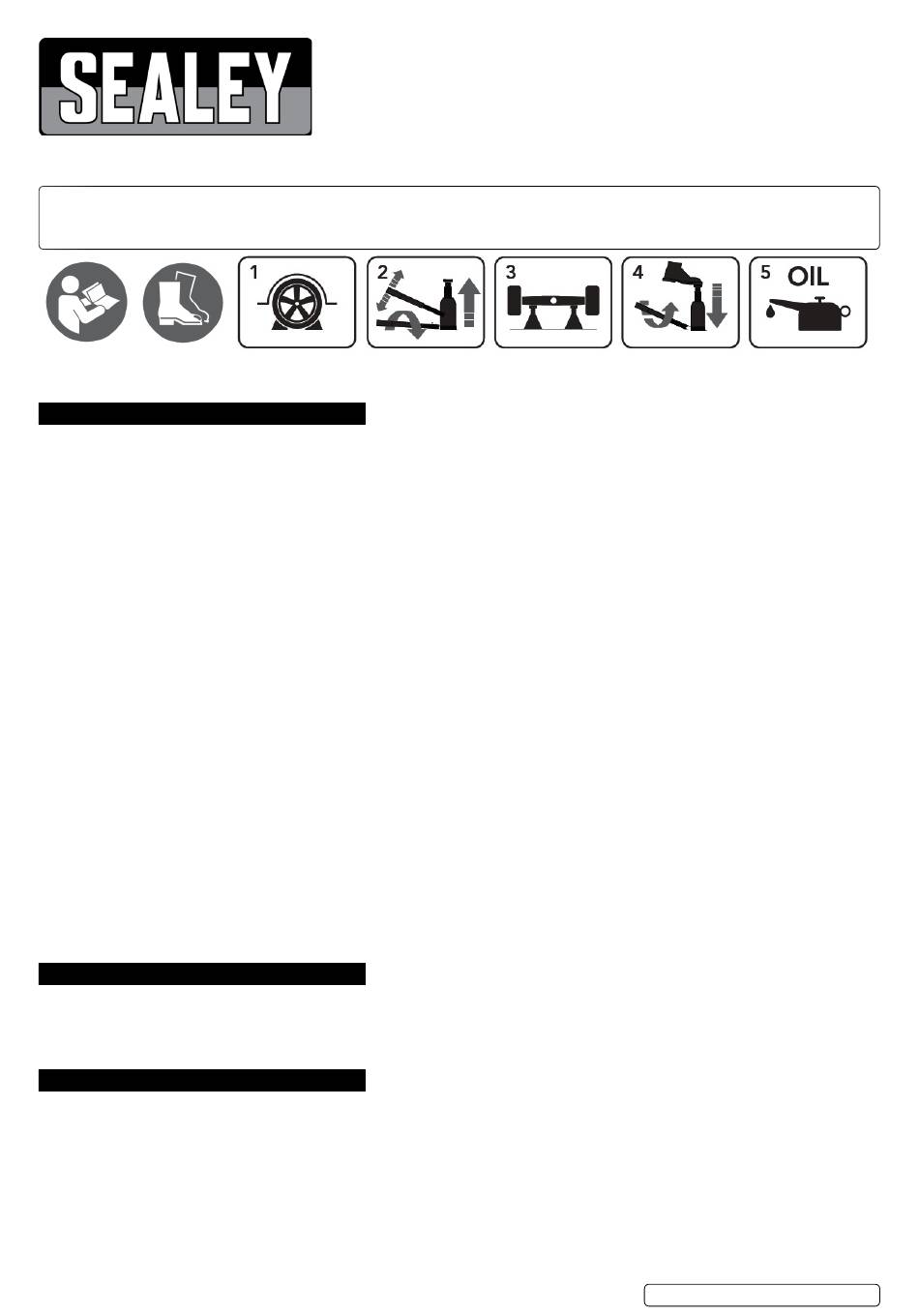

refer to Wear safety
instructions footwear
1. saFety
WarninG! alWays use load rated stands to suPPort liFted loads.
‰
▲ danGer! use the jack for lifting and lowering only.
danGer! do not place any part of the body under the lifted load unless the load is fully supported by rated stands, see
▲
symbol 3.
▲ danGer! do not place any part of the body beneath the load during lifting and lowering.
do not modify the jack in any way.
8
the load to be lifted should never exceed the rated capacity of the jack.
8
the maximum stroke of the jack indicated on the label should never be exceeded.
8
the jack should be supported on a solid, level and horizontal surface which is well illuminated and free of obstructions. never stand
9
the jack on a surface which may sink.
the air supply hose should not be worn and connections should be in good condition. Keep the hose clean and away from heat, dirty
9
areas or sharp edges and do not bend it.
ensure that there are no persons inside the vehicle to be lifted.
9
switch off the engine and apply vehicle handbrake (put automatics in Park).
9
ensure the vehicle or element to be lifted against any type of sliding. use chocks.
9
do not enter the vehicle or start the engine whilst it is supported on the jack or appropriate stands.
9
Position the jack under the manufacturer's recommended lifting point for the vehicle and ensure that it is not corroded, dirty or greasy.
9
this point should remain centred over the jack saddle. All off-centred loads can slip and accidents may result.
During raising and lowering of the load, all precautions should be taken to avoid movement of the vehicle load. Traffic may cause the
9
raised vehicle to rock during roadside use of the jack.
it is necessary for the operator to be able to observe the lifting device and the load during all movements. in the presence of
9
dangerous conditions, such as movement of the vehicle, etc, the lifting process must be interrupted.
ensure that there are no persons or obstructions underneath the vehicle prior to lowering.
9
As an additional safety measure against overload, the jack is fitted with an overload valve set at the factory which should not be
9
adjusted under any circumstances.
ensure that the jack is undamaged and in good working order.
9
Keep the jack clean, particularly the load face of the saddle.
9
take immediate action to repair or replace any damaged parts.
9
use only approved parts/accessories obtained from a sealey supplier. The use of non-approved items could be dangerous and will
9
invalidate the warranty.
ensure that the jack is maintained by a qualified person and that the recommended hydraulic oil is used.
9
2. introduction
Air hydraulic bottle jacks capable of both air assisted or manual operation. fitted with safety overload valve and manufactured in the eu. All
steel, one piece base, reservoir and air cylinder design gives added strength. fully serviceable ram piston with extension screw. Both models
supplied with 90° rotating pump and telescopic pump handle and have moulded carry handles incorporating storage for the pump handle.
service kits readily available.
3. sPeciFication
model no: ......................................................................Am20
capacity: ......................................................................20tonne
minimum height: ............................................................234mm
maximum height: ...........................................................447mm
Piston stroke: .................................................................138mm
Weight: ...........................................................................15.5kg
© Jack sealey limited
instructions for
bottle jacks 20/30tonne air/hydraulic
aM20.V3 & aM30.V3
model no:
chock wheels Pump to raise
undo valve to
lower
Original Language Version
use axle stands
model no: ......................................................................Am30
capacity: ......................................................................30tonne
minimum height: ............................................................242mm
maximum height: ...........................................................455mm
Piston stroke: .................................................................138mm
Weight: ...........................................................................23.5kg
to lower lubricate here
after use
Am20.V3, Am30.V3| issue 1 20/09/16
1
