ASSEMBLY PROCEDURE FOR S-TEK BACKSHELL ADAPTORS
This instruction sheet is designed to demonstrate how to assemble Datamate product equipped with
metal backshells. The part numbers include:
M80-4C1XX05S1
M80-4C1XX42S1
M80-4D1XX05S1
M80-4D1XX42S1

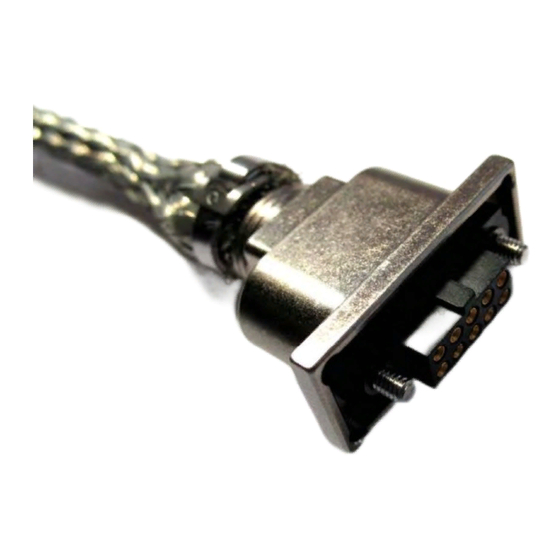

Note: Example shown is M80-4C11005S1. Kits includes four 'E'-clips, two are spare.

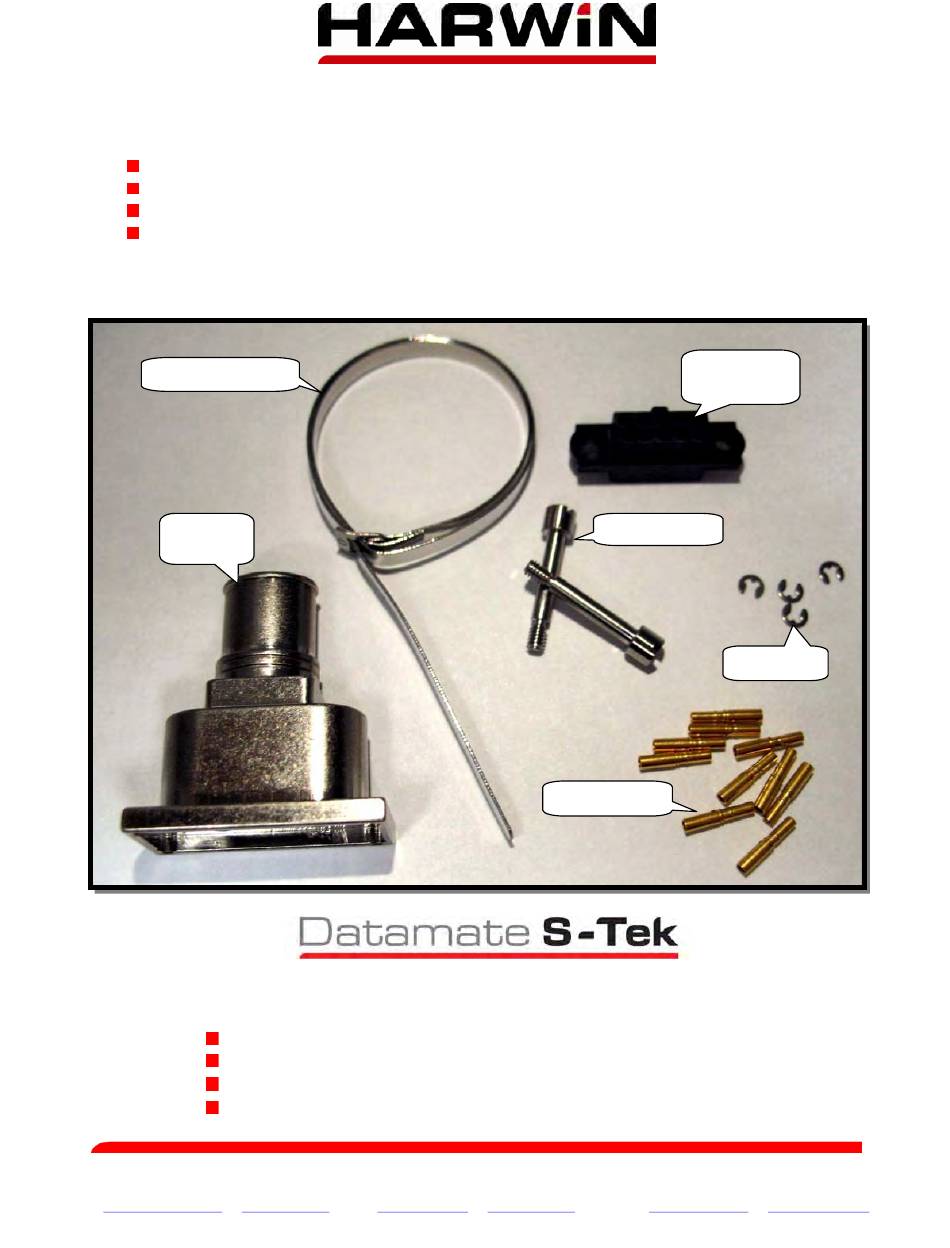

Kit of parts is as follows:
1 x Band-It Tie Dex
1 x Metal
backshell
Tools required for these products include:
BAND-IT Tie-Dex tool A301 (A590 kit)
Hand Crimp Tool M22520/2-01 with Positioner T5747
Contact insertion tool Z80-280
'E'-clip tool Z80-300
Harwin North America
T: +1 603 893 5376 F: +1 603 893 5396
E:
misboston@harwin.com
W:
www.harwin.com
IS-32 Issue: 4 Date: 01.04.11 C/Note: 11172
Harwin Europe
T: +44 (0) 23 9231 4545 F: +44 (0) 23 9231 4590
E:
mis@harwin.co.uk
W:
www.harwin.com
1 x Datamate
moulding
2 x Jackscrews
Crimp contacts
Harwin Asia
T: +65 6 779 4909 F: +65 6 779 386
E:
mis@harwin.com.sg
4 x 'E'-clips
W:
www.harwin.com.sg
Page 1 of 4
Advertisement
Related Manuals for Harwin S-TEK M80-4C1 05S1 Series
Summary of Contents for Harwin S-TEK M80-4C1 05S1 Series
- Page 1 BAND-IT Tie-Dex tool A301 (A590 kit) Hand Crimp Tool M22520/2-01 with Positioner T5747 Contact insertion tool Z80-280 ‘E’-clip tool Z80-300 Harwin North America Harwin Europe Harwin Asia T: +1 603 893 5376 F: +1 603 893 5396 T: +44 (0) 23 9231 4545 F: +44 (0) 23 9231 4590 T: +65 6 779 4909 F: +65 6 779 386 misboston@harwin.com...
- Page 2 IS-25. All instruction sheets can be found at http://www.harwin.com/downloads/instructions/. 5) Terminate the braiding to the backshell using the Band-It tie. Harwin strongly recommend that all terminations are made so that the locking lip of the Band-It Tie Dex is positioned along the longer portion of the backshell exit to ensure a uniform band and braid compression (see example below).
- Page 3 Visually inspect the connector and backshell assembly to ensure the ‘E’-clip groove in the jackscrews is visible. 8) Using Harwin tool Z80-300 apply ‘E’-clips to the jackscrews: a. The picture right shows the ‘E’-clip groove in the tools tip this must be face down on surface when engaging clips with tool.
- Page 4 For full tooling instructions on the Band-It Tie Dex go to http://www.band-it.co.uk/tooling.htm select tool A590 for full details. Harwin North America Harwin Europe Harwin Asia T: +1 603 893 5376 F: +1 603 893 5396 T: +44 (0) 23 9231 4545 F: +44 (0) 23 9231 4590 T: +65 6 779 4909 F: +65 6 779 386 misboston@harwin.com...
