DATAMATE CABLE HOOD ASSEMBLY INSTRUCTIONS
M80-940, M80-941, M80-942, M80-943 Series

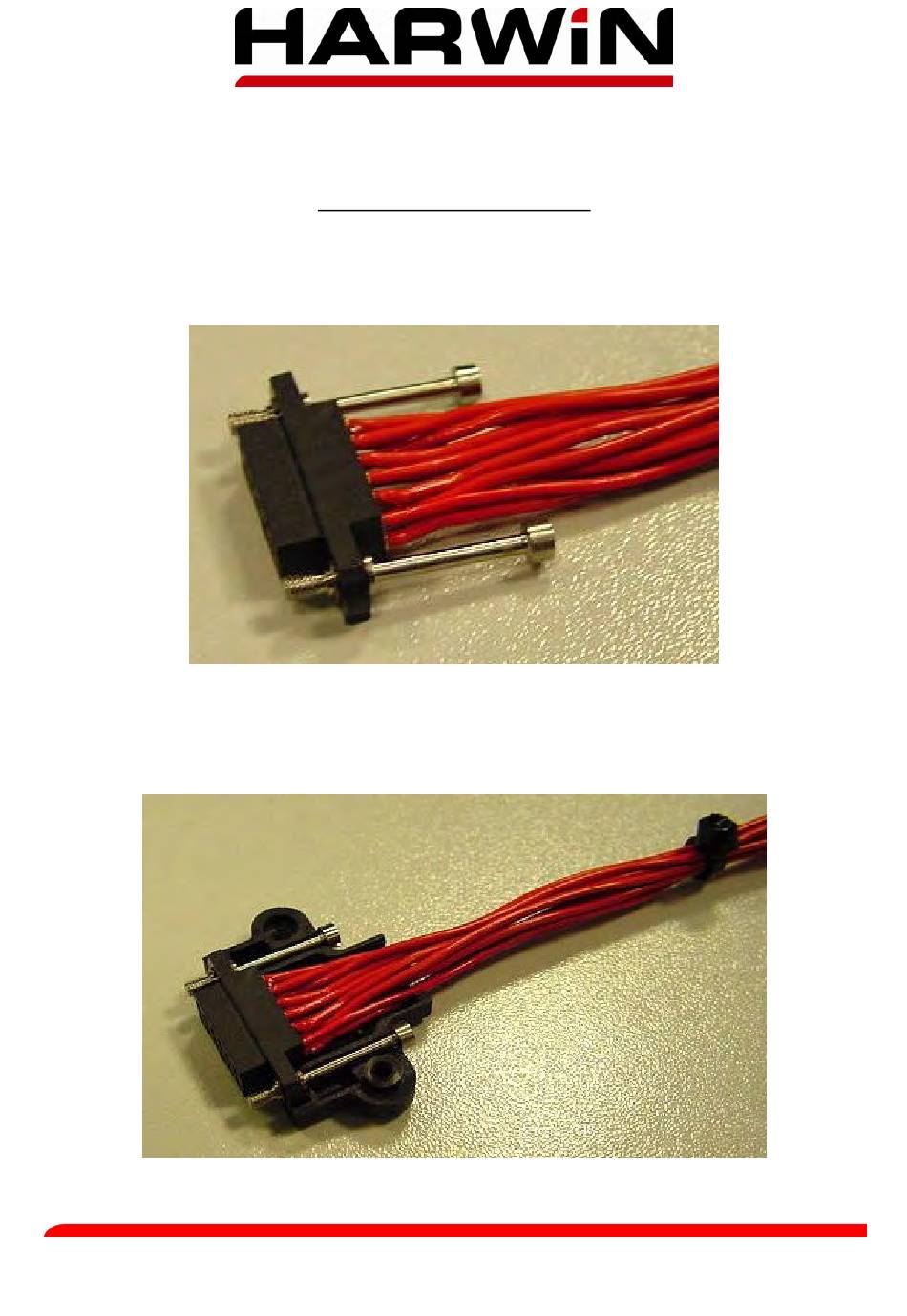

1.
Crimp the contacts (see Instruction Sheet IS-01 for instructions on using Hand Crimp Tool
M22520/2-01 and appropriate Positioner). Insert the contacts into the mould (see
Instruction Sheet IS-25 for instructions on using Datamate Assembly Tool Z80-280). The
completed assembly will resemble this:
2.
Place the assembled connector into one half of the cable hood (both halves are identical),
and make sure that all the wires lay within the rear channel of the hood:
Harwin North America
T: +1 603 893 5376 F: +1 603 893 5396
E: misboston@harwin.com W: www.harwin.com
IS-26
Issue: 2
Date: 03.10.07
ASSEMBLY INSTRUCTIONS
T: +44 (0) 23 9231 4545 F: +44 (0) 23 9231 4590
E: mis@harwin.co.uk W: www.harwin.com
C/Note: 9874
Harwin Europe
Harwin Asia
T: +65 6 779 4909 F: +65 6 779 3868
E: mis@harwin.com.sg W: www.harwin.com.sg
Page 1 of 3
Advertisement
Table of Contents
Related Manuals for Harwin M80-940 Series
Summary of Contents for Harwin M80-940 Series
- Page 1 T: +1 603 893 5376 F: +1 603 893 5396 T: +44 (0) 23 9231 4545 F: +44 (0) 23 9231 4590 T: +65 6 779 4909 F: +65 6 779 3868 E: misboston@harwin.com W: www.harwin.com E: mis@harwin.co.uk W: www.harwin.com E: mis@harwin.com.sg W: www.harwin.com.sg...
- Page 2 If added strain relief is required, fit a cable tie around the wires and through the cable tie slots in the rear channel of the hood moulding: Pull the cable tie tight, and then cut off any excess with suitable cutters: IS-26 Issue: 2 Date: 03.10.07...
- Page 3 Fit the second Cable Hood moulding. Use a No.1 Pozidriv screwdriver to assemble the two retaining screws (one in each side of the hood). Tighten the retaining screws to a torque of 18Ncm – DO NOT OVER-TIGHTEN: Finished Datamate Cable Hood assembly: IS-26 Issue: 2 Date: 03.10.07...
