User's Guide
Clients for Ethernet or Serial
Products supported:
UC3500, MC3500
DOC-710-004236-B0
Aironet Wireless Communications, Inc. • 3875 Embassy Parkway
Akron, Ohio 44333-8357
www.aironet.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the UC3500 and is the answer not in the manual?

Questions and answers

Related Manuals for Aironet UC3500

Summary of Contents for Aironet UC3500

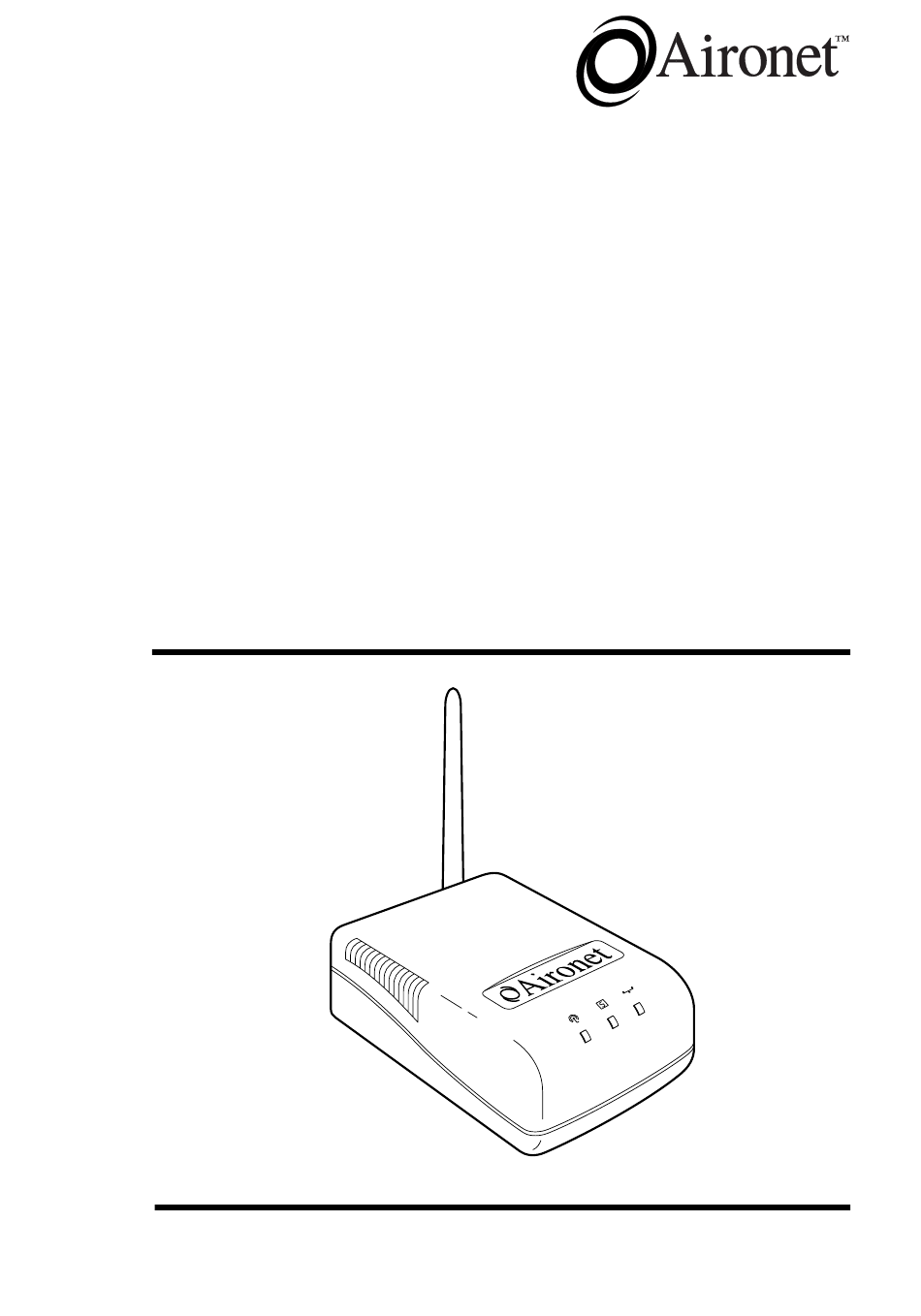

  • Page 1 User’s Guide Clients for Ethernet or Serial Products supported: UC3500, MC3500 DOC-710-004236-B0 Aironet Wireless Communications, Inc. • 3875 Embassy Parkway Akron, Ohio 44333-8357 www.aironet.com...
  • Page 2 Aironet Wireless Communications, Inc. No part of this document may be reproduced or transmitted in any means, elec- tronic or mechanical, for any purpose, without the written permission of Aironet. Information in this document is subject to change without notice. Aironet makes no representation or warranties with respect to the contents of this manual and specifically disclaims any express or implied warranties of merchantability or...

  • Page 3: Table Of Contents

    Back Panel Indicators (Ethernet Only) ... 2-8 Using the Mounting Bracket ......2-9 Configuration ............. 3-1 Accessing the Console System ..... 3-1 Configuring the Aironet Wireless Client ..3-4 SSID Identifier (SSID) ......3-4 Verifying Association ......3-4 Configuring the Port ........ 3-5 Disconnecting the Terminal ......
  • Page 4 Appendix A ............A-1 DC Power Jack Connector ......A-1 Appendix B ............B-1 Serial Port Pinout .......... B-1 Ethernet RJ-45 Port Pinout ......B-2 Sample Application Cable Pinout ....B-3 Appendix C............C-1 Manufacturers Federal Communication Commission Declaration of Conformity Statement............C-1 Department of Communications–Canada European Telecommunications Standards Institute Statement of Compliance Information to User.........C-4...

  • Page 5: Introduction

    Introduction Introduction The Wireless Client from Aironet is another member of the company’s broad array of wireless LAN solutions. Aironet has pioneered the design and manufacture of wireless LAN products that use advanced spread spectrum radio technol- ogies for reliable data communications.

  • Page 6: Purpose Of The Manual

    For detailed technical and configuration procedures, see the Technical Reference Manual document number 710-004237. The Aironet Wireless Client is a small, stand-alone unit that provides a wireless infrastructure connection for a device that is unable to use a standard wireless LAN adapter. A...

  • Page 7: Serial Client

    Introduction Serial Client The Serial Client has a standard EIA-232-E port for use with a wide range of devices that support standard serial input/output. Many serial devices such as point-of-sale reg- isters, weigh stations, and printers cannot support wireless LAN cards, however they can be connected using a Wire- less Client serial connection.
  • Page 8 Introduction There are two common applications for the Serial Client: • Replacing a serial cable with a wireless link. The cable between a serial device and its host can be eliminated. NOTE: For this application, two Wireless Clients are required. Serial Serial Universal...
  • Page 9 Introduction • Connecting a serial device to a LAN using an Access Point. File Server Wired LAN Access Point Serial Universal Client Serial Universal Client Station with Radio Card End Node End Node...

  • Page 10: Ethernet Client

    Introduction Ethernet Client The Universal Client and the Multi-Client can connect nodes to an Ethernet infrastructure. Universal Client The Ethernet Client connects to a standard Ethernet port using a 10BaseT/RJ-45 (twisted pair) connector. The Ethernet Client supports ad hoc networking or Ethernet connectivity to a wired LAN using Access Points.

  • Page 11: Multi-Client

    Introduction Multi-Client The Multi-Client connects to a standard 10BaseT/RJ-45 (twisted pair) connector. The Multi-Client can connect up to four end nodes through a hub to an Ethernet infra- structure. File Server Wired LAN Access Point (Root Unit) Multi-Client Mobile Workstation Workstation Workstation Workstation...

  • Page 12: Safety Information

    The FCC with its action in ET Docket 96-8 has adopted a safety standard for human exposure to radiated frequency (RF) electromagnetic energy emitted by FCC certified equipment. The Aironet products meet the uncontrolled environmental limits found in OET-65 and ANSI C95.1, 1991. Proper operation of this radio according to the...

  • Page 13: Dipole Antenna

    Introduction Dipole Antenna Always orient antenna such that it is at least 15 cm (6 inches) away from your body. High Gain Antennas High gain wall mount or mast mount antennas are designed to be professionally installed and should be located at a minimum distance of 30 cm (12 inches) or more from your body.

  • Page 14: Before You Start

    Standard RP-SMA 2 dBi dipole antenna • Mounting Kit If any item is damaged or missing, contact your Aironet supplier. Save all shipping and packing material in order to repack the unit should service be required. NOTE: Any remote antennas or associated coaxial cables are ordered and packed separately.

  • Page 15: Terminology

    Introduction Terminology When configuring your system, and when reading this manual, keep in mind the following terminology: Association – Each root unit or repeater in the infrastruc- ture contains an association table that controls the routing of packets between the Access Point and the wireless infra- structure.
  • Page 16 Introduction Repeater – A repeater is an Access Point that extends the radio range of the infrastructure. A repeater is not physically attached to the wired LAN, but communicates via radio to another Access Point, which is either a root unit or another repeater.

  • Page 17: Installation

    Installation This section describes the procedures for installing the Aironet Wireless Client. Installing the Antenna Install your Aironet Wireless Client using the following instructions. 1. With the unit disconnected from the power source, attach the antenna to the antenna connector.

  • Page 18: Installing The Console Port Cable

    Installation NOTE: If you are using a remote antenna with your Aironet Wireless Client, connect the coaxial cable to the antenna connector. Use only Aironet antennas and cables. Refer to the Aironet Antenna Guide (document number 710-003725) for available antennas and cables.

  • Page 19: Installing The Ethernet Connection

    Installation Installing the Ethernet Connection 1. Make sure the unit is disconnected from the power source. 2. Plug the RJ-45 connector into the 10BaseT port (Twisted Pair). 3. Connect the other end of the Twisted Pair cabling to the LAN connection (such as the crossover part of a hub for the Multi-Client or wired LAN for the Universal Client).

  • Page 20: Attaching The Ac/Dc Power Pack And Powering On

    NOTE: Connecting the power pack powers on the Aironet Wireless Client. Ethernet Wireless Client Serial Wireless Client When power is initially applied to the Aironet Wireless Cli- ent, all three indicators will blink in sequence to test the functionality of the indicators.

  • Page 21: Viewing The Indicator Displays

    Viewing the Indicator Displays Top Panel Indicators The indicators are a set of displays located on the top panel of the Aironet Wireless Client unit. • Radio Indicator – Used to indicate radio traffic activity. The light is normally off, but will blink green whenever a packet is received or transmitted over the radio.
  • Page 22 Installation When the Aironet Wireless Client is initially powered up, all three displays will blink amber, red and then green, in sequence. If a power-on test fails, the status indicator will go solid red and the unit will stop functioning. See Table 2.1 for a detailed explanation of the Top Panel...
  • Page 23 Installation Table 2.1 – Top Panel Indicator Description Type Indicator Display Description Radio Status Infrastructure Nonassociated Blinking Not associ- Node Green ated to an Access Point Green Associated to an Access Point Operational Blinking Green Transmitting/ Green Receiving Radio packets Green Blinking Green Transmitting/...

  • Page 24: Back Panel Indicators (Ethernet Only)

    Installation Back Panel Indicators (Ethernet Only) The back panel indicators are: • 10BaseT polarity: Solid amber to indicate the 10BaseT polarity is reversed. Check cable connec- tions. • 10BaseT active: Solid green to indicate the 10BaseT has been configured as the active port. •...

  • Page 25: Using The Mounting Bracket

    Installation Using the Mounting Bracket To mount the Aironet Wireless Client to a wall, use the mounting bracket. 1. Select the location to mount the unit. 2. Place the flat side (without tabs) of the bracket against the wall with the arrows pointing to the right or left.
  • Page 26 Installation 4. Align the 4 slotted holes at the back of the unit with the 4 tabs on the bracket. Slotted Holes Tabs 5. Push the unit slightly against the bracket. Slide the unit in the direction of the arrows on the bottom of the unit until it locks into place.

  • Page 27: Configuration

    Accessing the Console System There are many ways in which you may configure and monitor the Aironet Wireless Client. When the unit is first powered up, basic configuration must initially be performed by accessing the Console Serial Port.
  • Page 28 Configuration For example: Software Keyboard Sequence* Windows 3.x <ctrl> <break>, <ctrl> <break> Windows 95 Hyperterminal <ctrl> <break>, <ctrl> <break> Procomm Plus 2.0 Win 3.x <alt> <b>, <alt> <b> Procomm for DOS v 2.4.2 <alt> <7>, <alt> <7> *Press both keys at the same time, release, then repeat. The following message appears on the terminal’s screen: Are you using an ANSI compatible terminal [y/n]: •...
  • Page 29 NOTE: The Main Menu that appears on your screen will look similar to the example above. Menu options depend on the Aironet Wireless Client model. You can select an option from any of the Console System menus by typing its name or number at the prompt (>).

  • Page 30: Configuring The Aironet Wireless Client

    Configuration Configuring the Aironet Wireless Client To configure the Aironet Wireless Client so it will communi- cate with other nodes or repeaters, use the Console Port to set the appropriate parameters. SSID Identifier (SSID) The SSID (Service Set Identifier) is a unique identifier that is attached to selected packets sent out over the radio network.

  • Page 31: Configuring The Port

    Configuration Configuring the Port If your installation should require any type of configura- tion changes, see the appropriate Wireless Client Technical Reference Manual (document number 710-004237) for more information. Ethernet Port The Ethernet port is on by default and its default frame size is 1518.
  • Page 32 Configuration Partner Address If the Wireless Client is configured to operate in Ad Hoc Mode, it is necessary to enter a Partner Address. To enter a Partner Address: 1. Select Configuration from the Main Menu. 2. Select Partner from the Configuration Menu. 3.

  • Page 33: Disconnecting The Terminal

    Serial Port. 4. Disconnect the serial cable from the Aironet Wireless Client Serial Port. 5. Plug in the Aironet Wireless Client power supply and turn on the terminal (or PC). The Aironet Wireless Cli- ent will now associate with the infrastructure.
  • Page 34 Configuration...

  • Page 35: Dc Power Jack Connector

    Appendix A Appendix A DC Power Jack Connector The DC power jack used on the Aironet Wireless Client device has +12V center pin. The sleeve of the power jack is ground.
  • Page 36 Appendix A...

  • Page 37: Serial Port Pinout

    Data Terminal Ready Output> 9 N/C Ring Indicator Input< The 9-Pin AT column indicates the pin numbers used on the 9-pin Aironet Wireless Client Console Port connector. ** The DTE column indicates the data direction in terms of the DTE.

  • Page 38: Ethernet Rj-45 Port Pinout

    Appendix B Ethernet RJ-45 Port Pinout The Ethernet RJ-45 port is configured as a hub device. The pinout is noted below. RJ-45 Connector 1 RJ-45 Connector 2 Pin 1 (TX+) Pin 1 (TX+) Pin 2 (TX-) Pin 2 (TX-) Pin 3 (RX+) Pin 3 (RX+) Pin 6 (RX-) Pin 6 (RX-)

  • Page 39: Sample Application Cable Pinout

    Appendix B Sample Application Cable Pinout A typical Aironet Wireless Client application cable is a 9-pin serial cable. The following diagram shows a simple 3-wire interface between a DTE device and the Aironet Wireless Client DCE connector.
  • Page 40 Appendix B...

  • Page 41: Manufacturers Federal Communication Commission Declaration Of Conformity Statement

    Appendix C Appendix C Manufacturers Federal Communication Commission Declaration of Conformity Statement Models: UC3500-E, UC3500-S, MC3500 Tested To Comply With FCC Standards Manufacturer: FOR HOME OR OFFICE USE Aironet Wireless Communications, Inc. 3875 Embassy Parkway Akron, OH 44333-8357 330-664-7900 This device complies with Part 15 rules. Operation is subject to the...
  • Page 42 The Part 15 radio device operates on a non-interference basis with other devices operating at this frequency. Any changes or modification to said product not expressly approved by Aironet could void the user’s authority to operate this device. Professional Installation...

  • Page 43: Department Of Communications-Canada

    Appendix C Department of Communications—Canada Canadian Compliance Statement This Digital apparatus meets all the requirements of the Canadian Interfer- ence - Causing Equipment Regulations. Cet appareil numerique respecte les exigences du Reglement sur le material broilleur du Canada. This device complies with RSS-210 of Industry of Canada. Operation is subject to the following two conditions: 1) this device may cause harmful interference, and 2) this device must accept any interference received, including interference that may cause undesired operation.

  • Page 44: Information To User

    Appendix C European Telecommunication Standards Institute Statement of Compliance Information to User This equipment has been tested and found to comply with the European Telecommunications Standard ETS 300.328. This standard covers Wideband Data Transmission Systems referred in CEPT recommendation T/R 10.01. This type accepted equipment is designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.

  • Page 45: Declaration Of Conformity

    Appendix C Declaration of Conformity Aironet Model Number: 3500 Series Models included: UC3500-E, UC3500-S, MC3500 Radio CE Type Certificate Number: BCL/EC.98-176 Radio Type Approval Examiniation Number: HDTP/RDR/167/394122 Application of Council Directive: 89/336/EEC Application of Council Directive: 72/23/EEC Standards which Conformity is Declared:...
  • Page 46 Appendix C...

  • Page 47: Technical Support

    Use the following information to contact the Aironet Technical Support group: Telephone - (330) 664-7903 Fax - (330) 664-7990 e-mail - techsupp@aironet.com Web Site For additional product information and technical support, including the capability to download new firmware and drivers, use the Aironet web site at: http://www.aironet.com...
